Name: Crankshaft - Water Cooled 250cc - ATVs Go-Karts Scooters - Version 3
Brand: VMC Chinese Parts
Price: 108.95 USD
Availability: InStock

Same Day Shipping On Orders Before 3PM, M-F

0 items - $ 0.00 / Sign in or Checkout

Crankshaft - Water Cooled 250cc - ATVs Go-Karts Scooters - Version 3 - VMC Chinese Parts

VMC Chinese Parts

Part number: 921-CS100-03

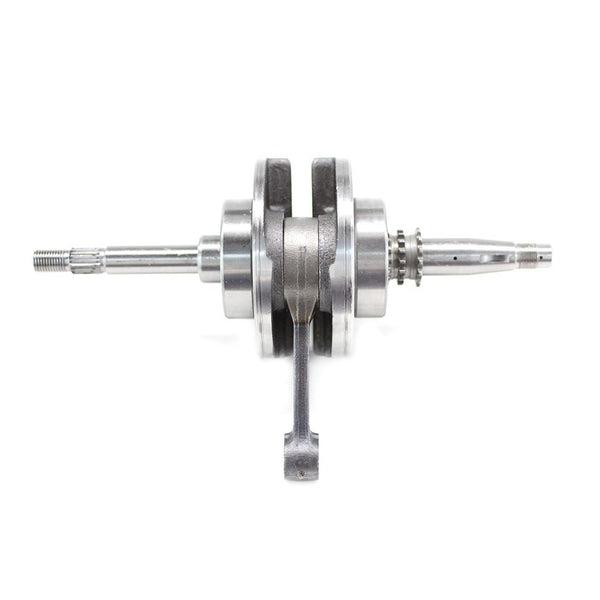

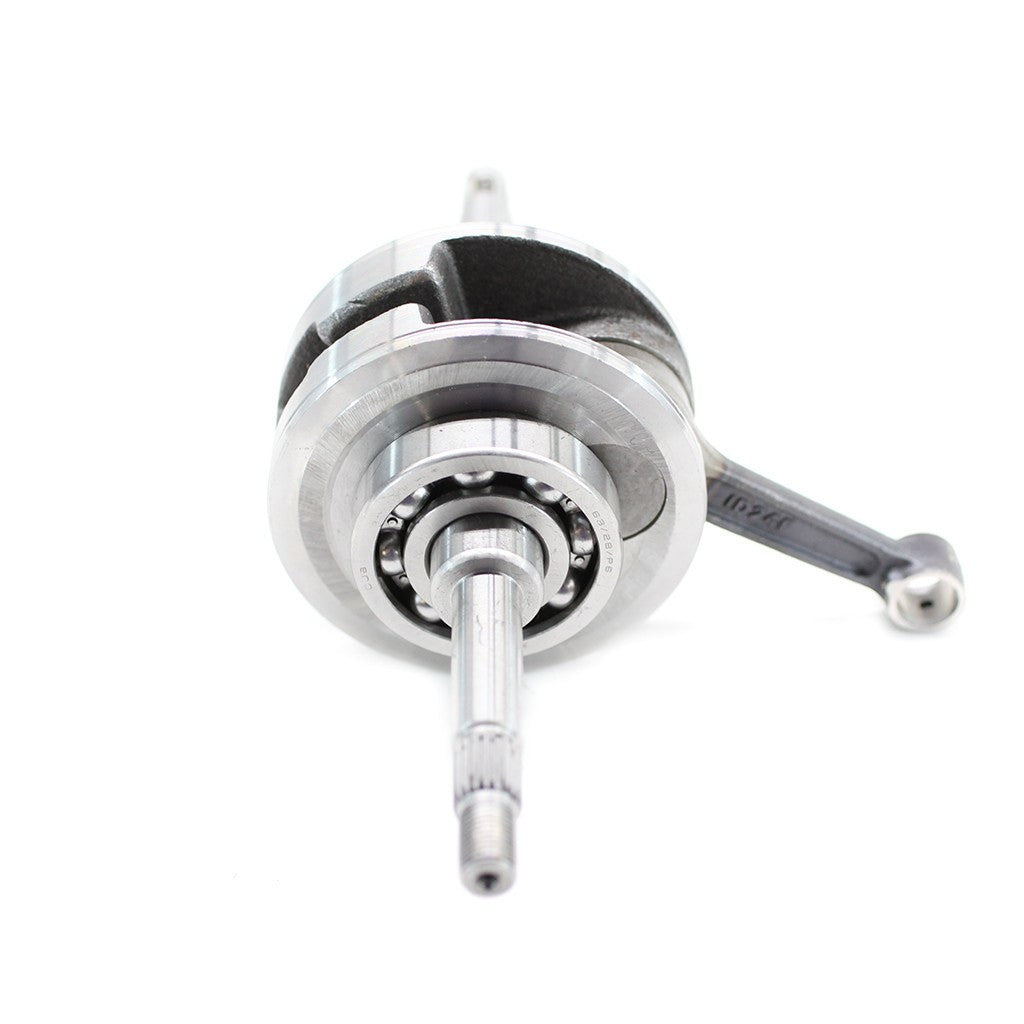

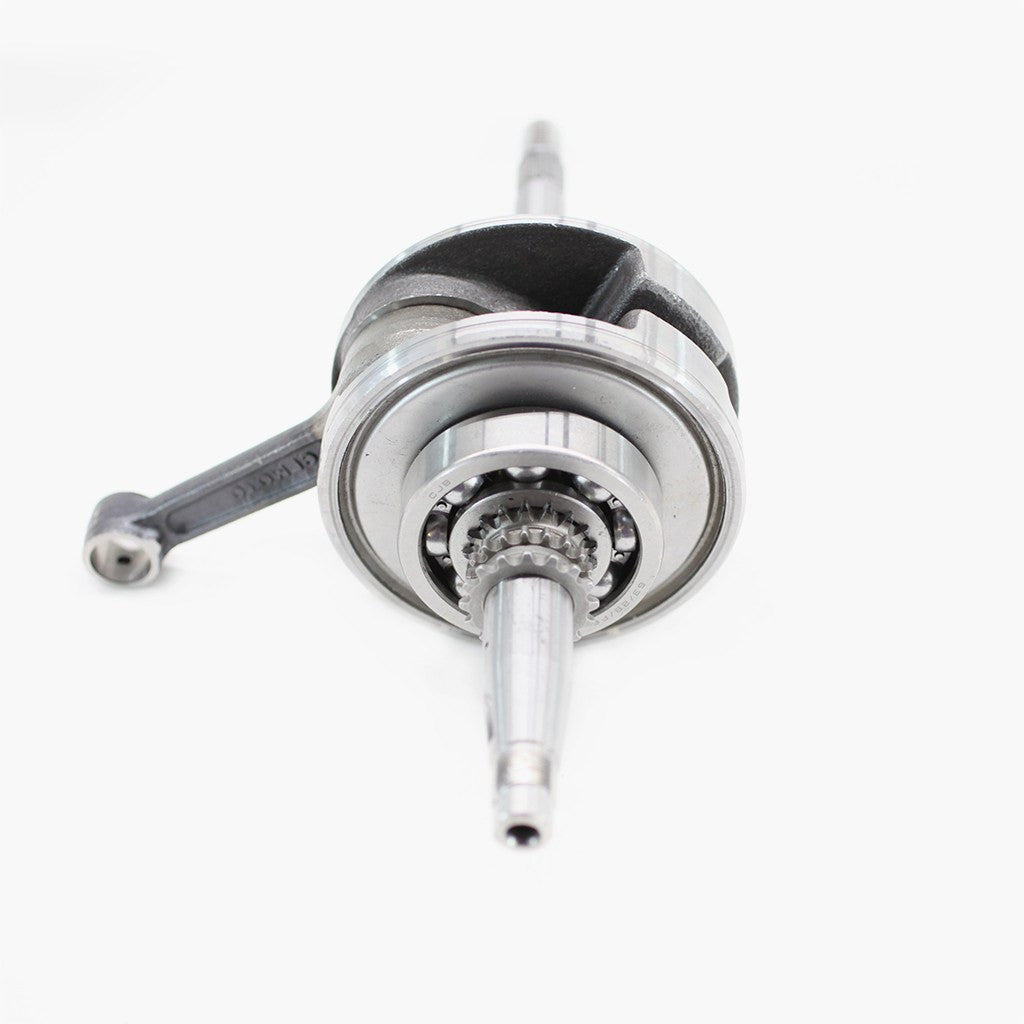

Chinese Crankshaft - GY6 250cc Engine

Version 3

Chinese atv, go-kart, scooter crankshaft fits several makes and models. Please use the pictures and measurements to best match your crank.

Crank shaft details:

Over Length: 29cm (11.42 in)
Bearing size/model: 28 ID X 68 OD X 18 H (63/28/P6)
Sprockets: 16 teeth
Spline count on end of shaft: 21 teeth spline
Thread size: M16*1.00 tapered end
Thread size: M14*1.50 straight end
CF250, CH250 and CN250

Known to fit GY6-250 engines.

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
