Wheel Hub and Drum - Coolster 3050B, 3050D, 3125B, 3125R
This front wheel hub is used on several makes and models of Chinese atvs. The best way to insure you are ordering the correct part is to use our detail pictures and measurements. Please be sure to check both before ordering.

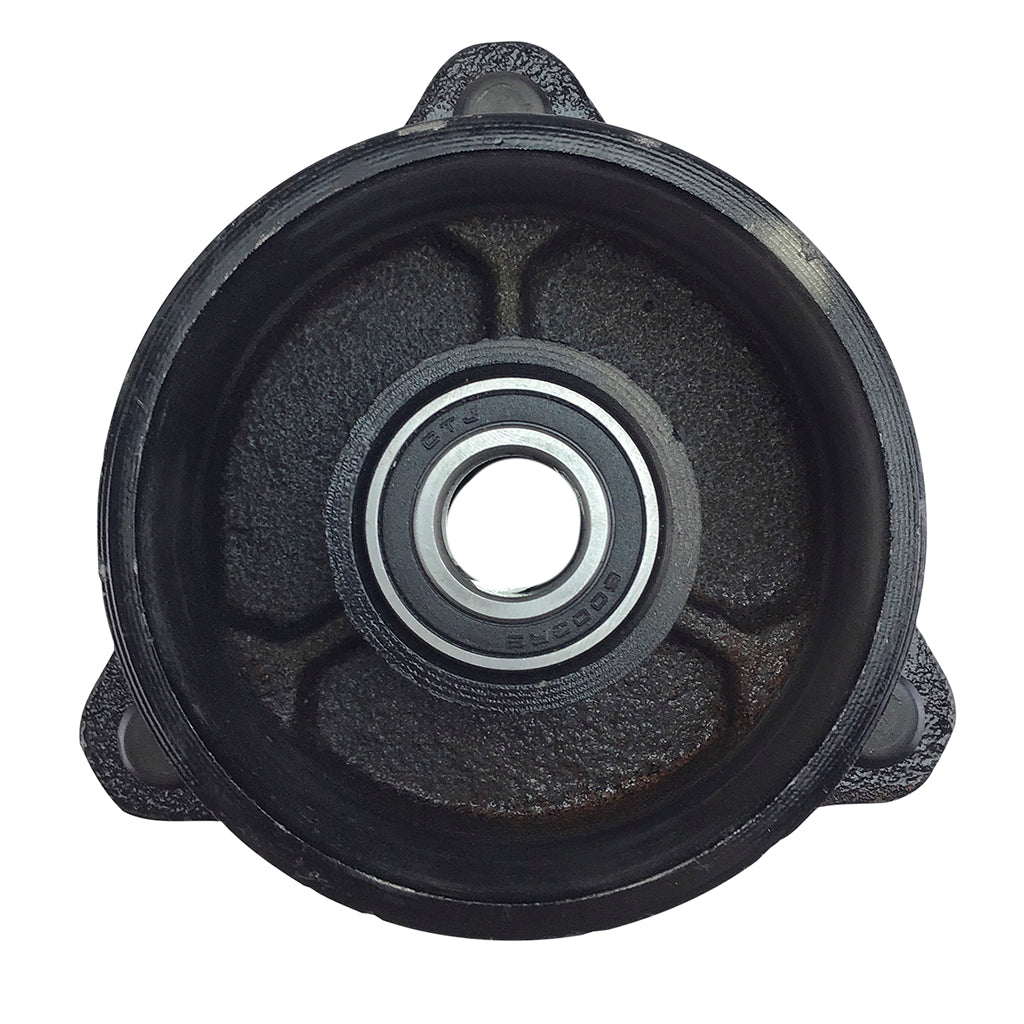

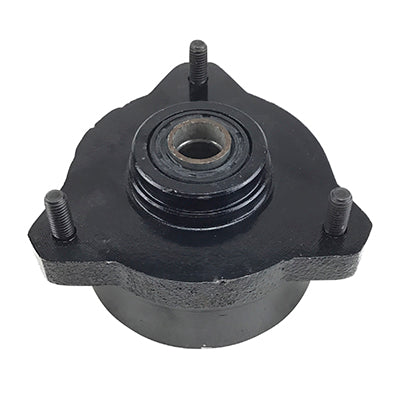

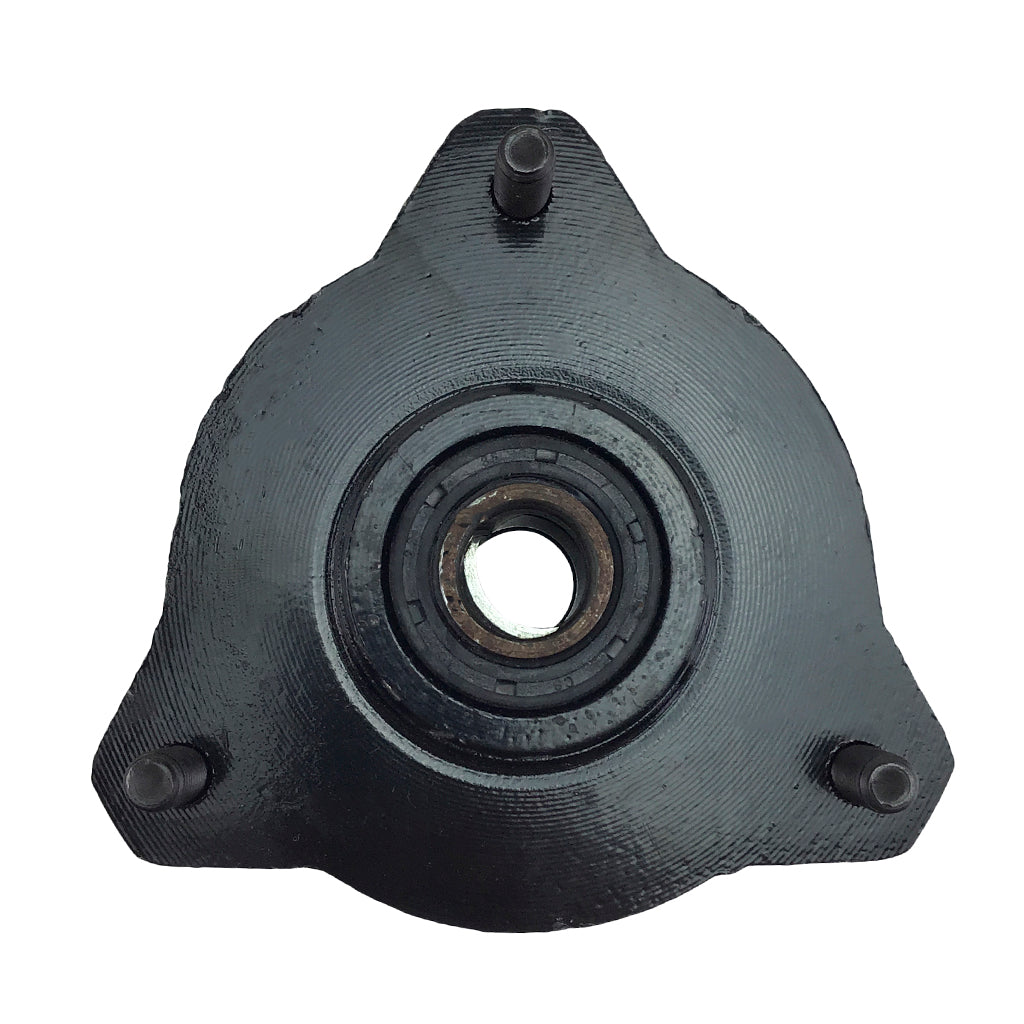

Hub details:
- Black
- Overall width of hub: 115mm (4.5 in)
- ID of drum: 85mm (3.32 in)
- (3) M8 x 1.25 studs
- Stud distance apart: 91.5mm (3.6 in) center-to-center
- Center hole diameter: 18mm (0.71 in)
- Bearing size: BB6003RS
- Seal size: 22x35x7
- For front DRUM brakes
- MGM-EA006

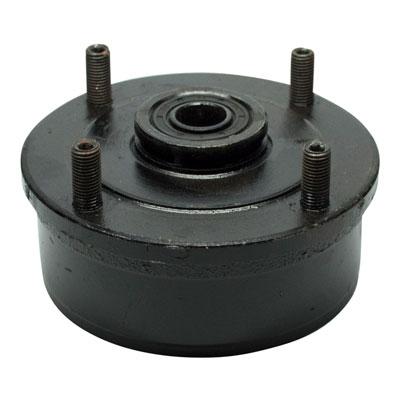

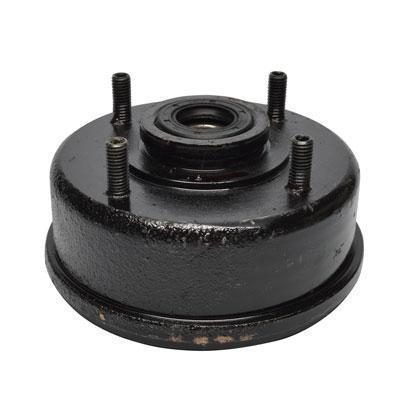

We have two brake drums which are very similar. The difference between them is the size of the studs and how far apart they are, so please measure yours before ordering.
Hub is known to fit the 2017 and newer Coolster 3050B, 3050D, 3125B, 3125B2 and 3125R atvs. Be sure to check your hub measurements with the above measurements to be sure you are getting the correct part.
