Part number:
950-SM272-58

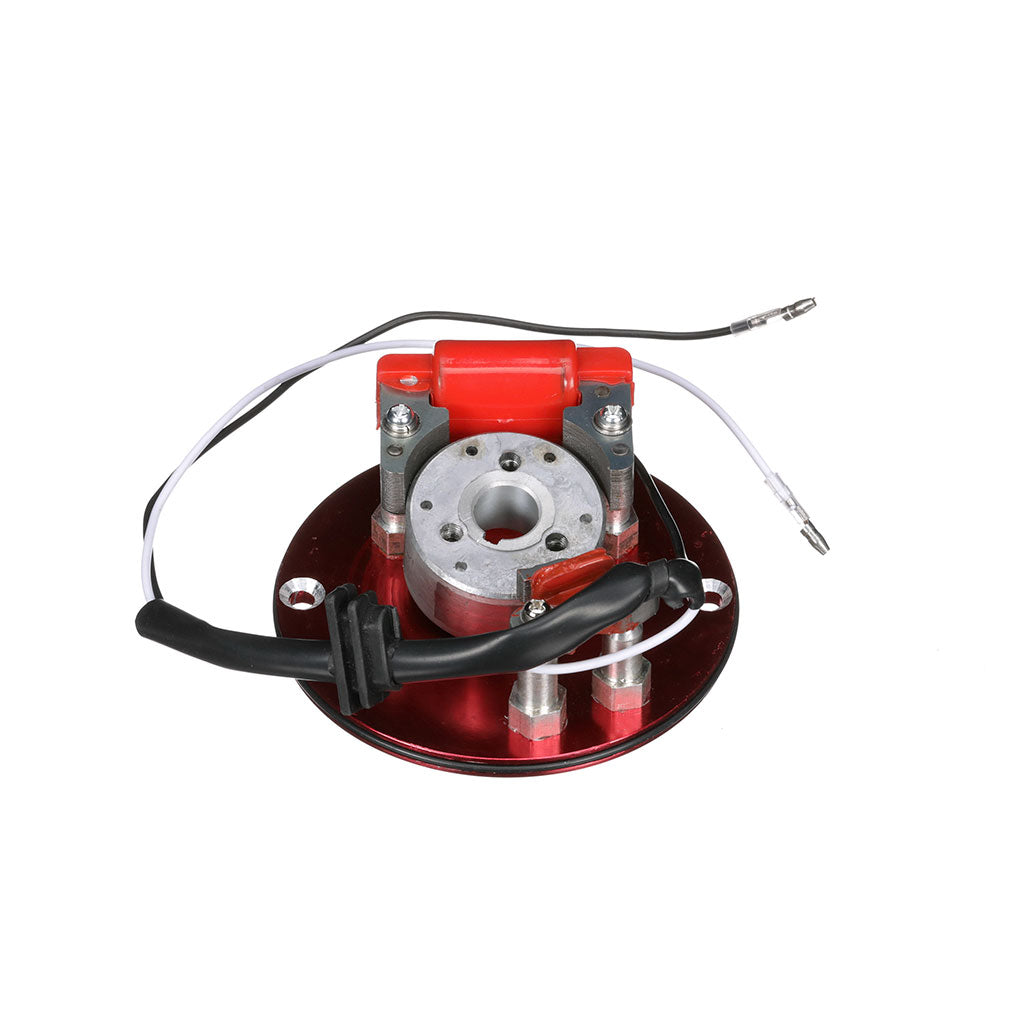

Chinese Racing Stator Magneto for Coolster Dirt Bikes.
Version 58
This Chinese stator magneto and igniter assembly is the replacement part for the several of the Coolster dirt bikes. Also fits other makes and models. Please use pictures and description to determine fit.
Stator magneto description:
- OD of plate: 116mm (4.58 in)
- Bolt hole spacing: 102mm (4.0 in)
- Plate is red in color and has o-ring around it
- 2 wires with male torpedo connectors
- 15 inch pigtail
- OD of magnet: 49.5mm (1.95 in)
- ID of magnet: 15.9mm (.625 in)
- Magnet has three 5mm threaded bolt holes
- Bolt hole spacing on magnet: 26mm (1.02 in)
- 5 wire igniter with single mounting hole
- Center hole measurement: 17.7mm (.70 in)
- Compatible with 70cc-140cc 4-strokes
Known to fit the Coolster QG-210, QG214, GQ-214FC and QG214S dirt bikes. Also know to fit some Lifan dirt bikes.
