Part number: 1100-GB150-HNSM

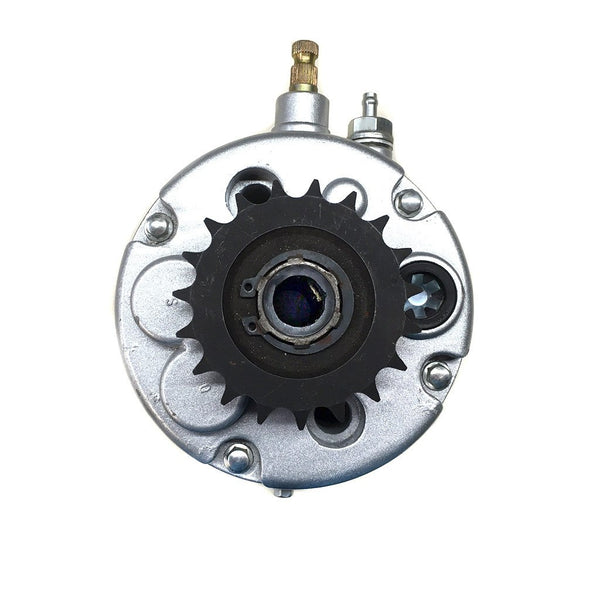

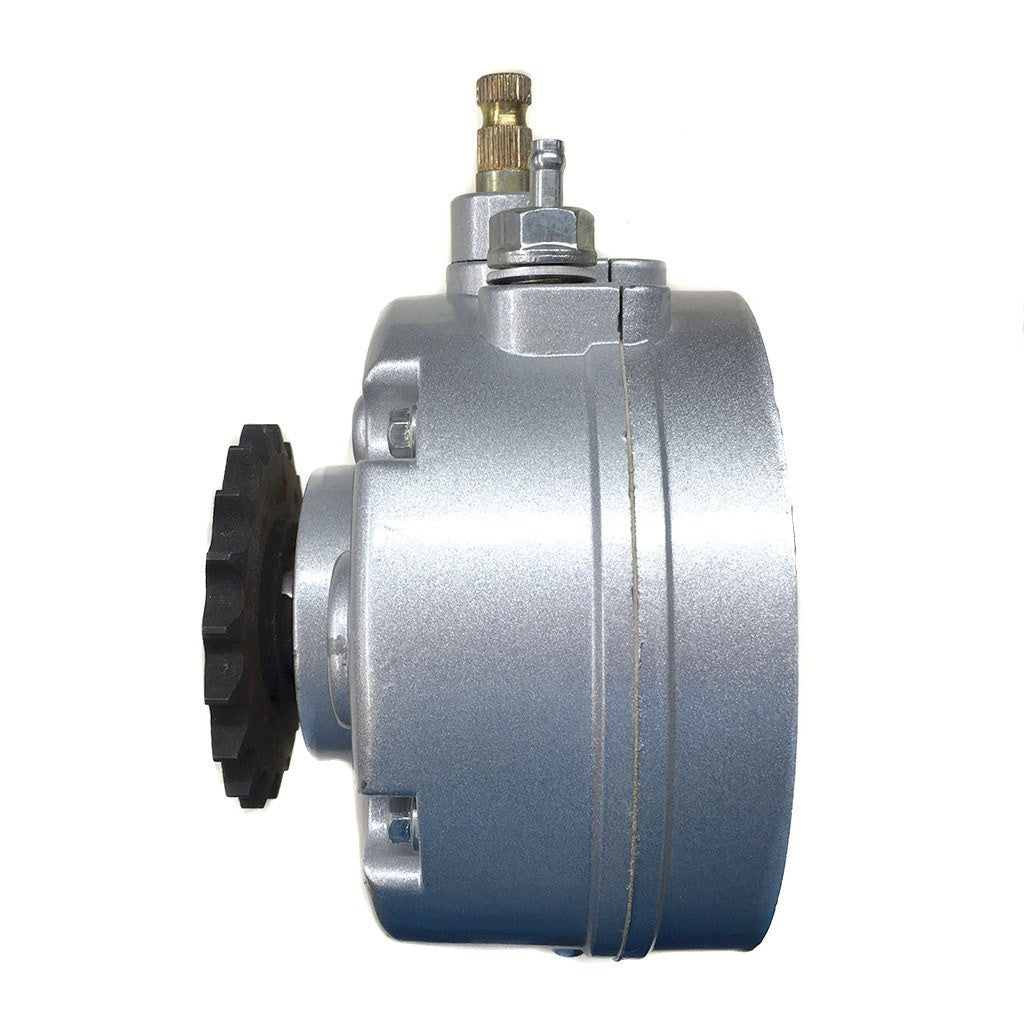

Reverse Gear box Hensim GY6 150cc ATV, Go-Kart Quad engine.

Gearbox details:

19 tooth large gear.
19 splines on shaft opening.
OD of gearbox: 134mm (5.2725 in)
Mounting distance: 85mm center to center
Center hole on back side opposite sprocket - ID: 20.6mm (0.812 in)
Shifter rod OD: 10.85mm
Shifter rod: 29 spline
Shifter rod length: 23.65mm
Hose nipple OD: 6.65mm
Sprocket OD: 81.5mm
Needle bearing ID: 17.5mm

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
