Part number: 1133-JA100-12

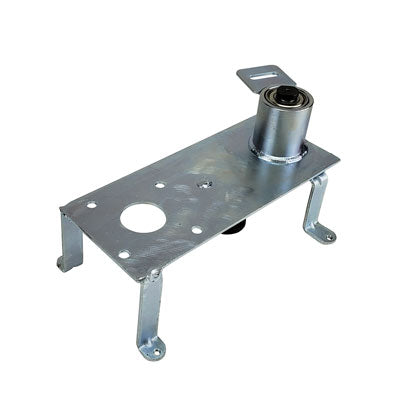

Jackshaft Assembly for Massimo MB200 Mini Bikes

This jackshaft assembly for the Massimo MB200 mini bike is what the clutch assembly and front chain sprockets all attach to.

Jackshaft details:

Overall dimensions: 9.8 in. x 4.1 in. plate only
(4) arms with M6*1.00 bolt holes
Includes chain tensioner
Includes chain tensioner spring
Includes jackshaft
Includes (2) 6203-Z bearings
Sprocket is NOT included
31922563 MB200-231

What you see in the pictures is what is included with the jackshaft assy. Please look at pictures and measurements before ordering to determine fit.

Shipping details:

Do you need your jackshaft fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
