Name: Gear for GY6 Reverse Gear Box - 16 Tooth
Brand: VMC Chinese Parts
Price: 9.95 USD
Availability: InStock

Same Day Shipping On Orders Before 3PM, M-F

0 items - $ 0.00 / Sign in or Checkout

VMC Chinese Parts

Part number: 1101-DG001-25

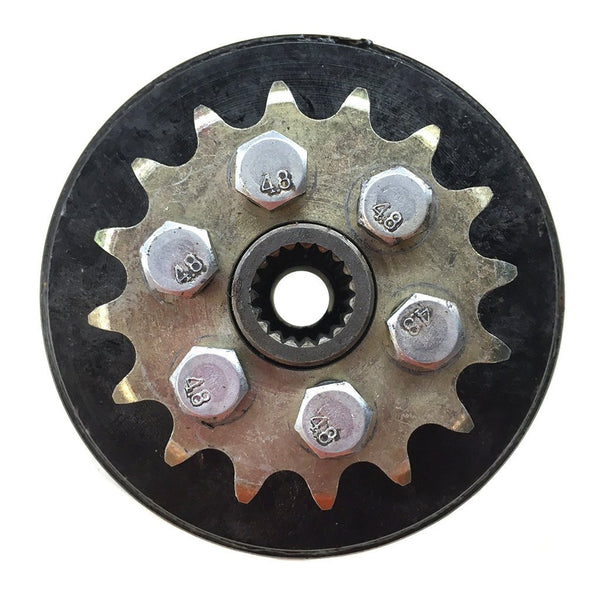

Gear for GY6 Reverse Gear Box

This is the external gear used on the GY6 reverse gear boxes found on go-karts and buggies. If you have a busted gear, why buy the whole box? Please check pictures and description before ordering to determine fit.

Gear details:

16 tooth
Outside diameter: 88mm (3.46 in)
Thickness: 8.8mm (3.34 in)
(6) 8.3mm bolt holes
Bolt hole spacing: 25mm center-to-center
Bolt holes spacing: 50mm straight across
Bolts are not included - gear only

Shipping details:

Do you need your carburetor fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
