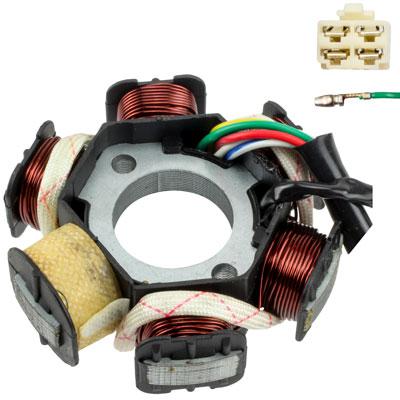

Chinese 6 Coil Stator Magneto for 50cc-125cc Engines.
Version 2
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters. The stator recharges the battery while the machine is in use, like an alternator in a car. This stator fits 50cc, 70cc, 90cc, 100cc, 110cc and 125cc models.
Stator description:
- 6 coil - 1 wrapped
- 5 wires: 32cm (12.6 in) wire length
- 2 bolt mounting
- 4 wire plug [as pictured]
- Single green wire pigtail
- Pickup trigger
- Overall diameter: 83mm (3.27 in) wide
- Single coil height: 25mm (1.0 in)
- Wrapped coil height: 30.5mm (1.20 in)
- Mounting measurement: center-to-center 42mm
- Compatible with 50cc-125cc 4 stroke
Shipping details:
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
