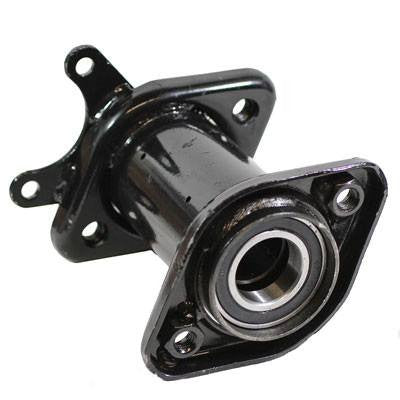

Rear Axle Carrier for Tao Tao 110cc -135cc ATV's.
This is the axle carrier for most of the Tao Tao atvs from 110cc-135cc. Please be sure to use the pictures and measurements to verify the correct fit for your machine.
Carrier details:
- Overall length: 129.5mm (5.10 in)
- Carrier OD: 59.8mm (2.3575 in)
- Mounting hole distance: 88mm (3.45 in)
- Bracket hole distance: 61mm (2.4 in)
- Carrier bearing: 6006RS on both sides
- Bearing ID: 30mm (1.19 in)
- 13533A1975
Fits the Coleman AT125-EX and AT125-UT atv.
Fits Tao Tao ATA110B, ATA110B1, ATA110B3, ATA110D, ATA110D1, Eagle 110 BI, ATA110F, ATA110F1, Apache 110 Big Wheel, ATA125A, ATA125A1, ATA125D, ATA125G, ATA125H, Cheetah, Mudhawk 10, NEW CHEETAH, NEW TFORCE, RAPTOR, Rock 100 and TForce.
Shipping details:
Do you need your axle carrier fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
