Part number:
213-FH930-10
Go-Kart Front Wheel Hub - Hammerhead 150 Junior - Version 10
Version 10
This front wheel hub was used on several makes and models of Chinese go-karts. The best way to insure you are ordering the correct part is to use our detail pictures and measurements. Please be sure to check both before ordering.

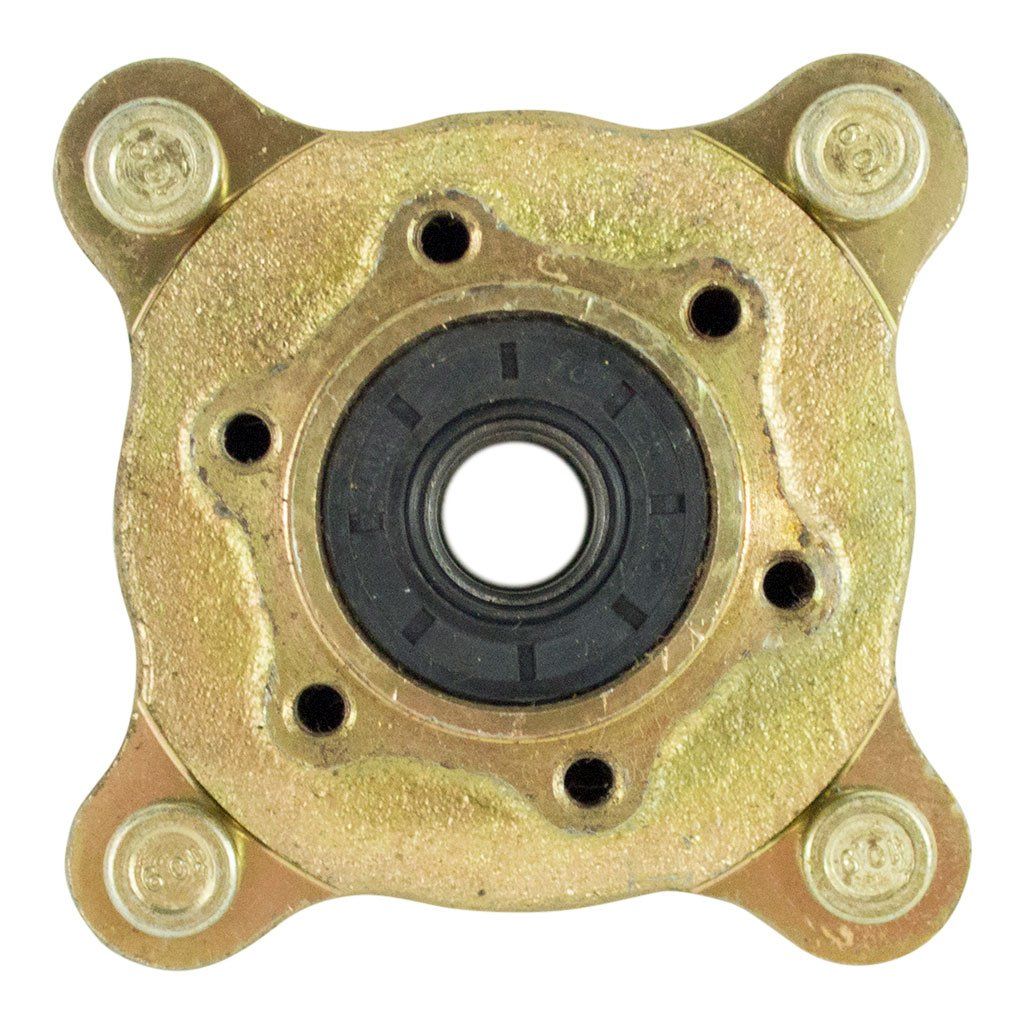

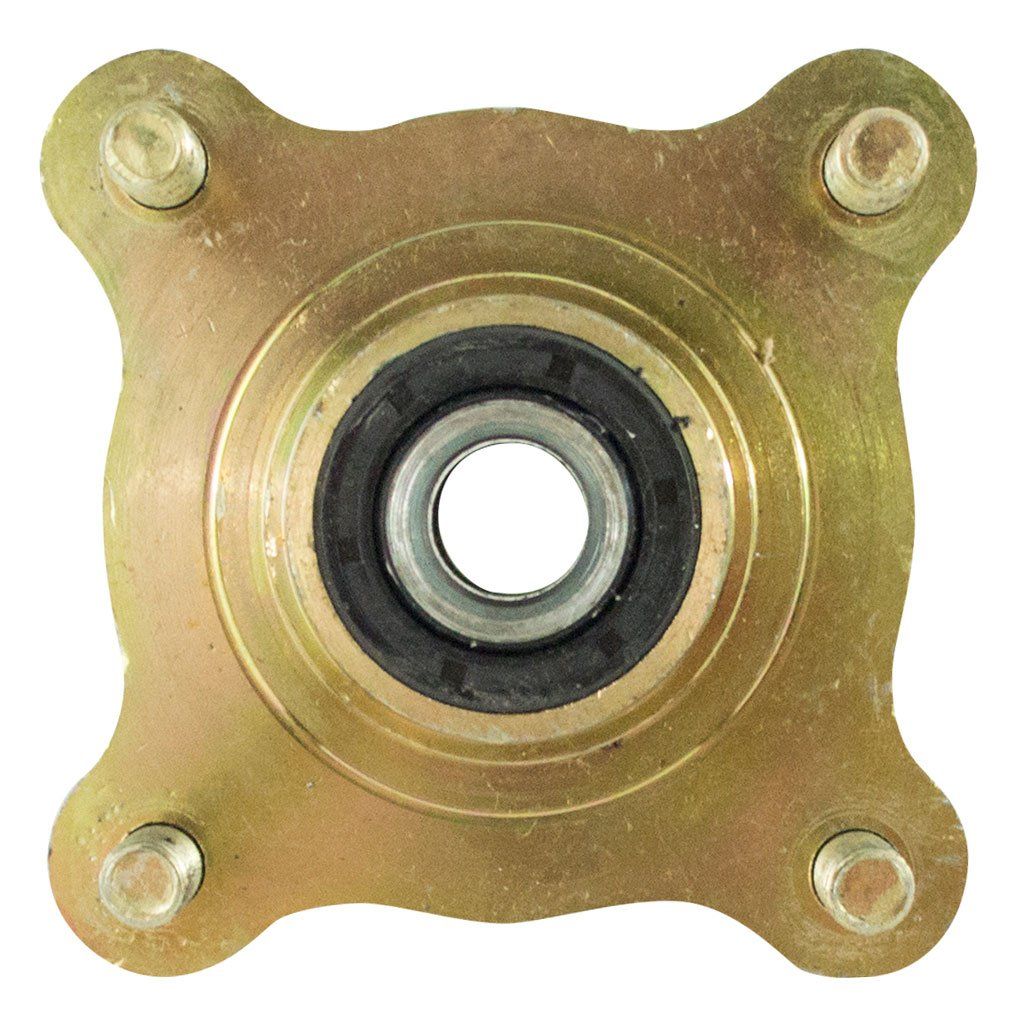

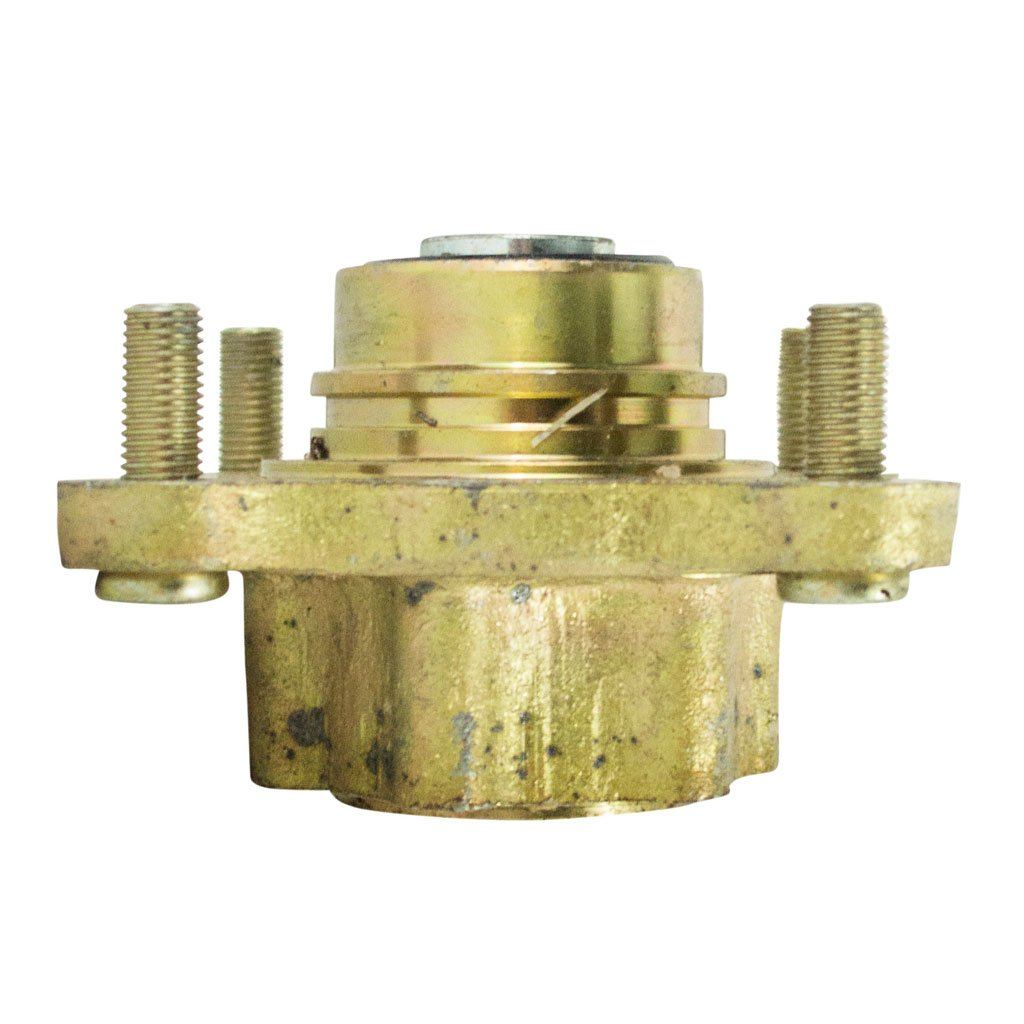

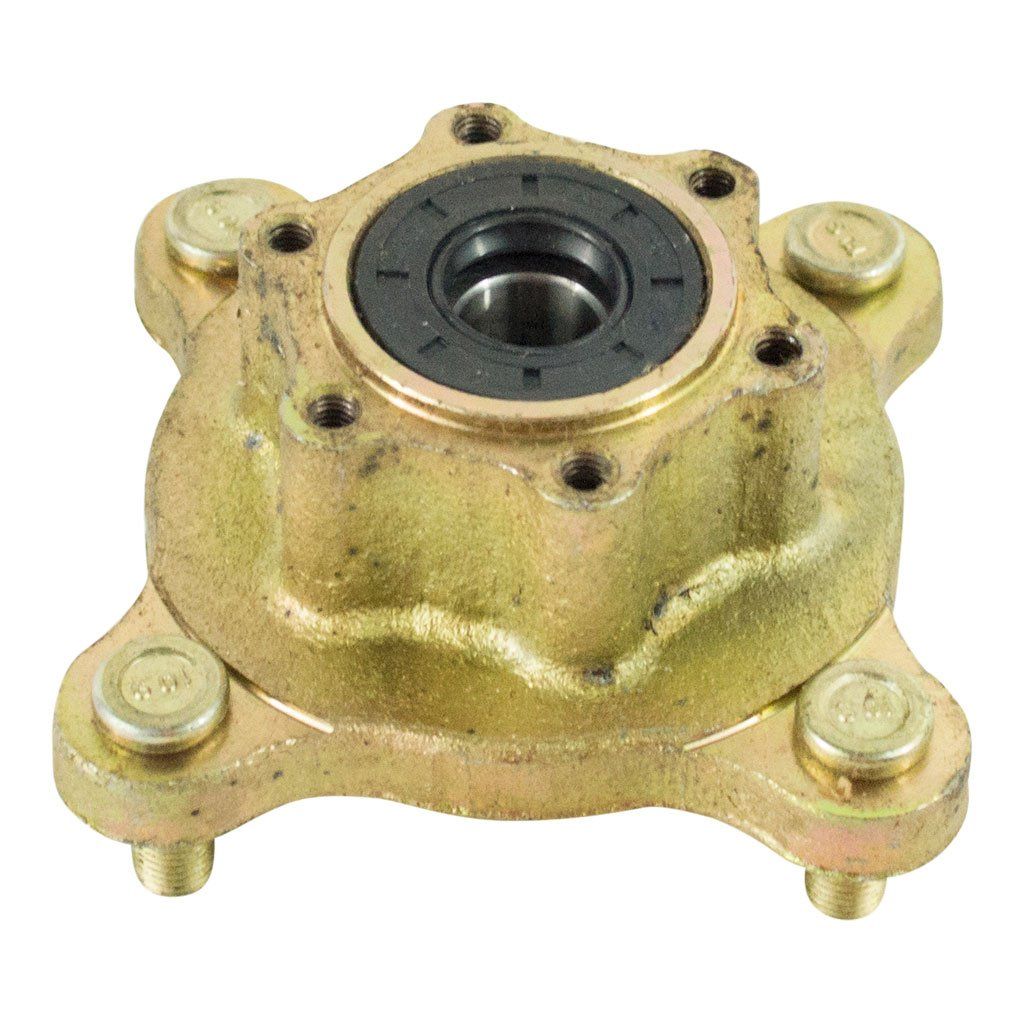

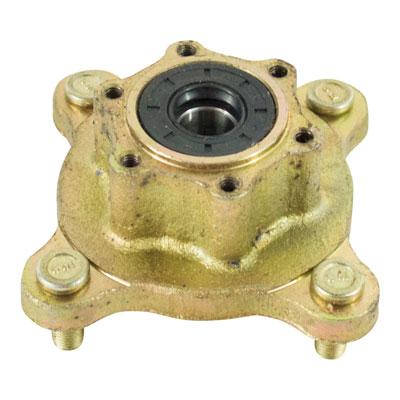

Hub details:
-
Width: 64mm (2.52 in)
- (4) 10mm studs
- Studs are 78mm (3.07 in) apart center-to-center, side to side
- Studs are 110mm (4.33 in) apart center-to-center across
- (6) 6mm threaded bolt holes
- Threaded holes are 29mm (1.14 in) center-to-center
- Threaded holes are 58mm (2.28 in) center-to-center across from each other
- Sleeve on stud side 17.8mm (0.70 in) inside diameter
- 22*42*7 seals on both sides
- 8.010.055
Hub is known to fit older models of the Hammerhead 150 Junior. Be sure to check your hub measurements with the above measurements to be sure you are getting the correct part.
