Part number:
1241-FS420-196
1

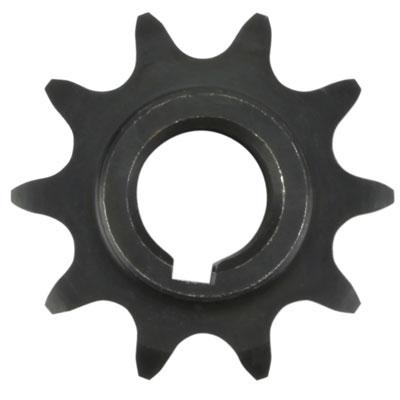

Chinese Front Sprocket 420-10T Coleman KT196 Go-Kart
This front sprocket is used on the Chinese 200cc engines, specifically the Coleman KT196 and the Hisun HS200GK go-karts. May be used on other applications as well. This sprocket has 10T and is compatible with 420 chain ONLY.
Sprocket details:
- Small chain sprocket on the KT196
- #420 chain
- 10T
- ID 16mm (0.625 in)
- OD 46mm (1.81 in)
- Width: 20mm (0.79 in)
- Uses 5x17 key - Not included
- 53303-400001-0000
- P400001533030000
- 41233-132-0000
Be sure to measure your chain or current sprocket before ordering. 420 chain has 1/2 inch pitch and 5/16 inch roller diameter. Most Chinese sprockets have the chain size and teeth count stamped into the metal.
