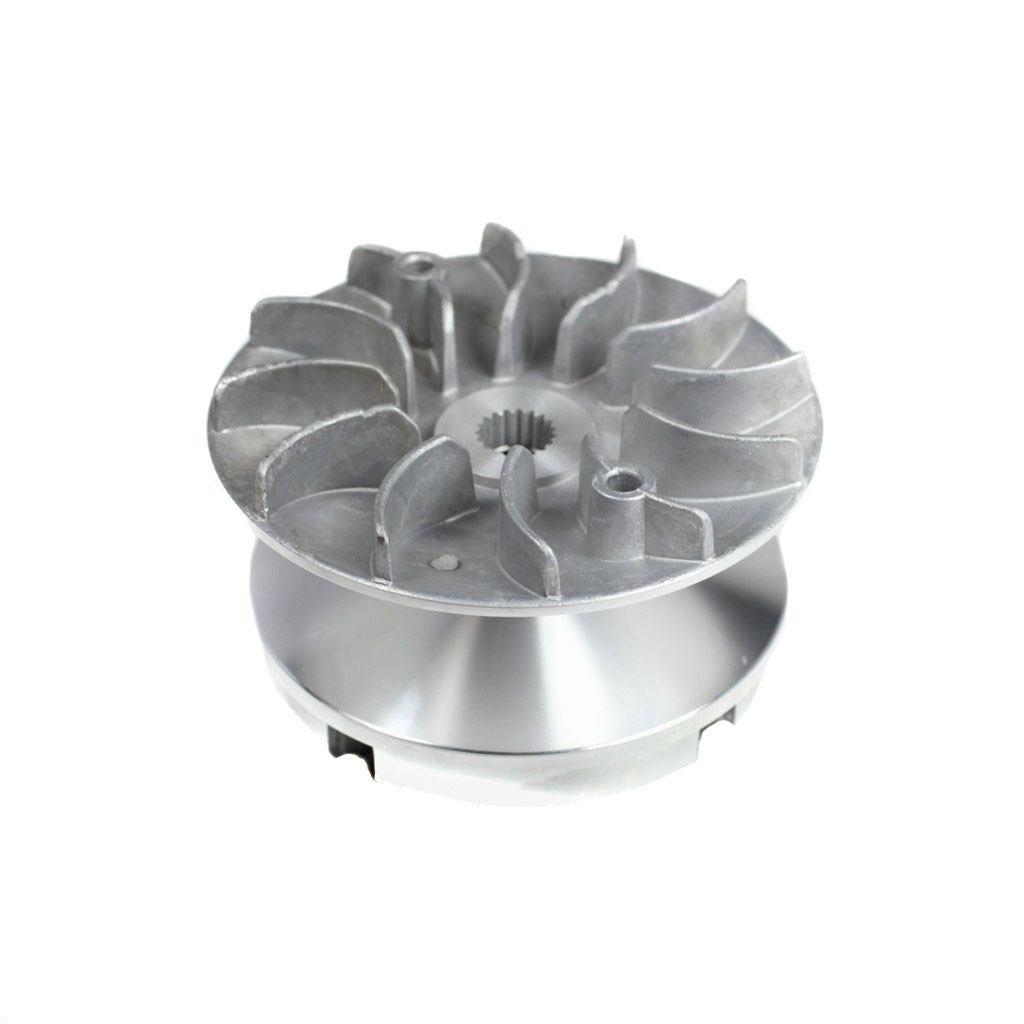

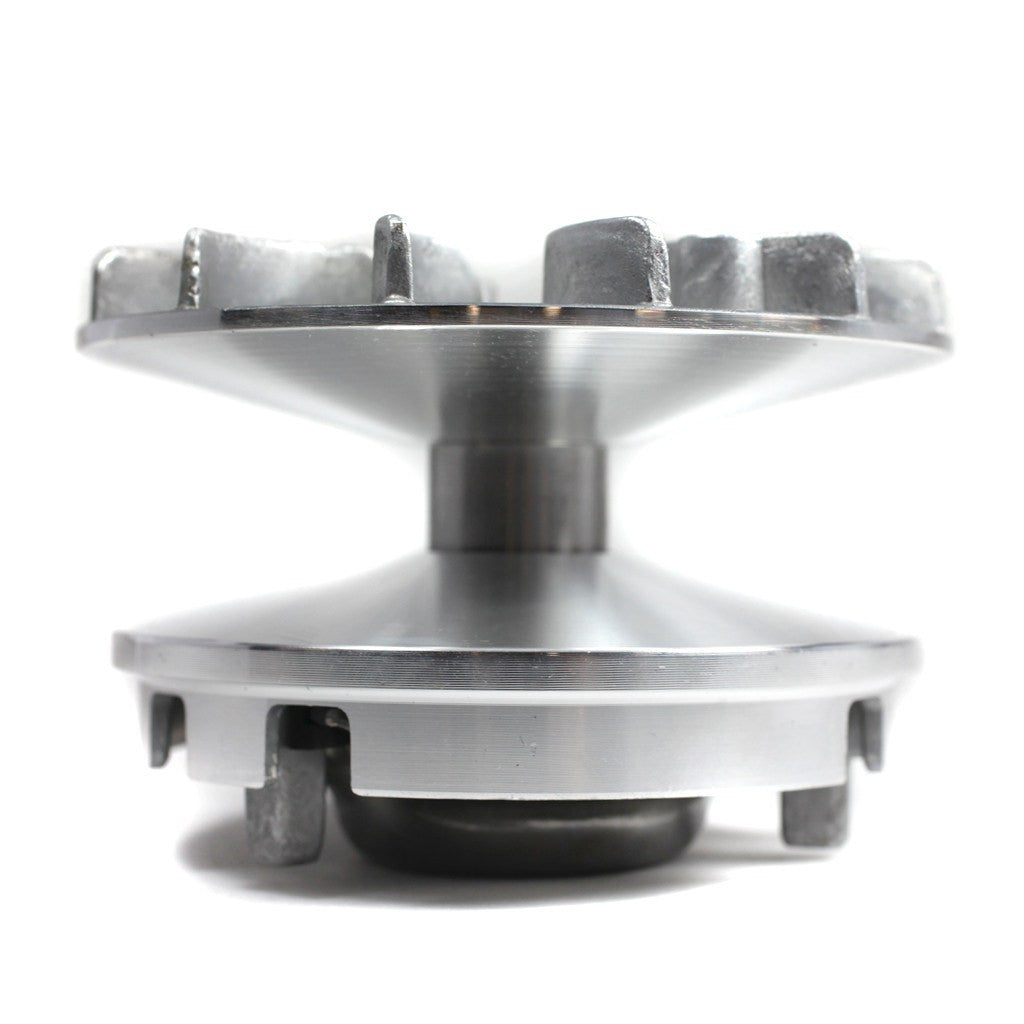

Variator Clutch Assembly - GY6 125cc 150cc

Front Drive Variator Clutch Assembly

GY6 125cc 150cc - CVT - Auto

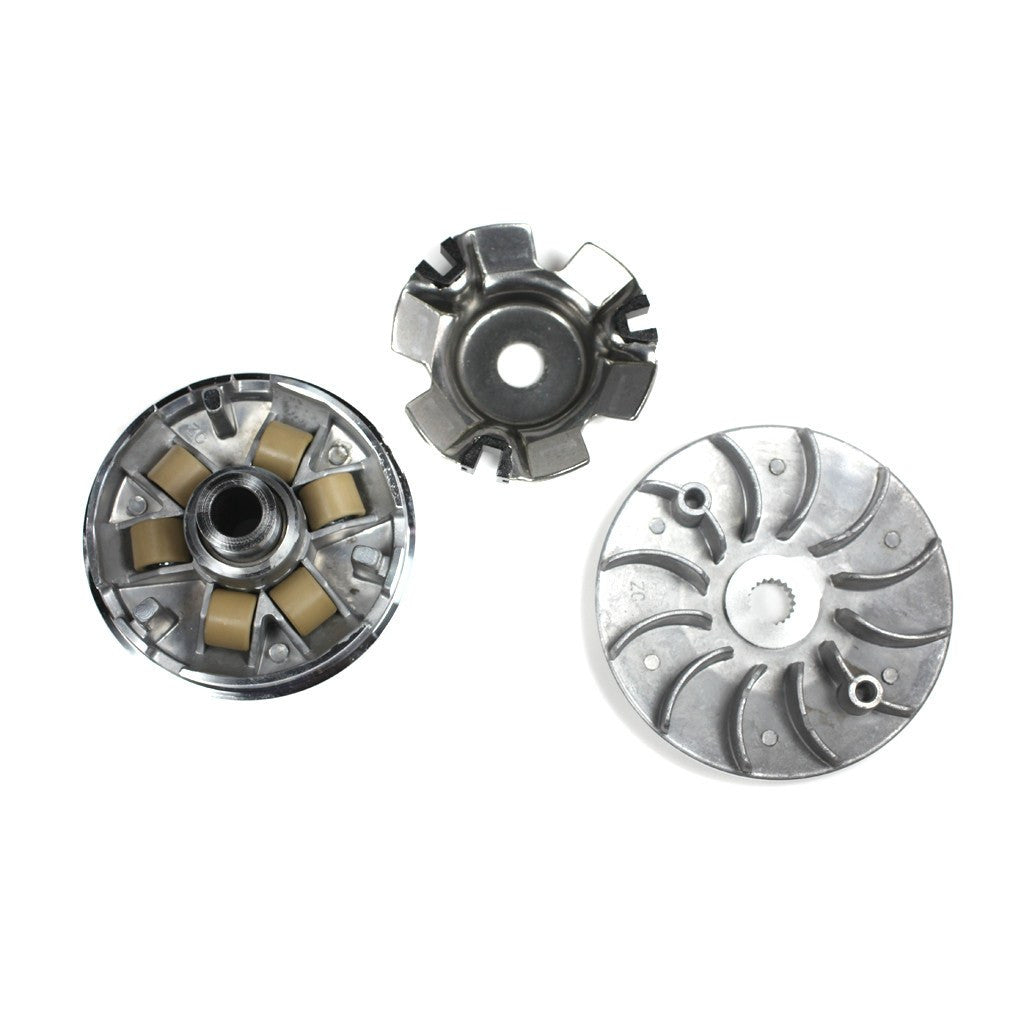

Complete variator assembly for the CVT fully automatic 150cc engines on several makes and models of scooters, mopeds, go karts, and some atvs.

Variator details:

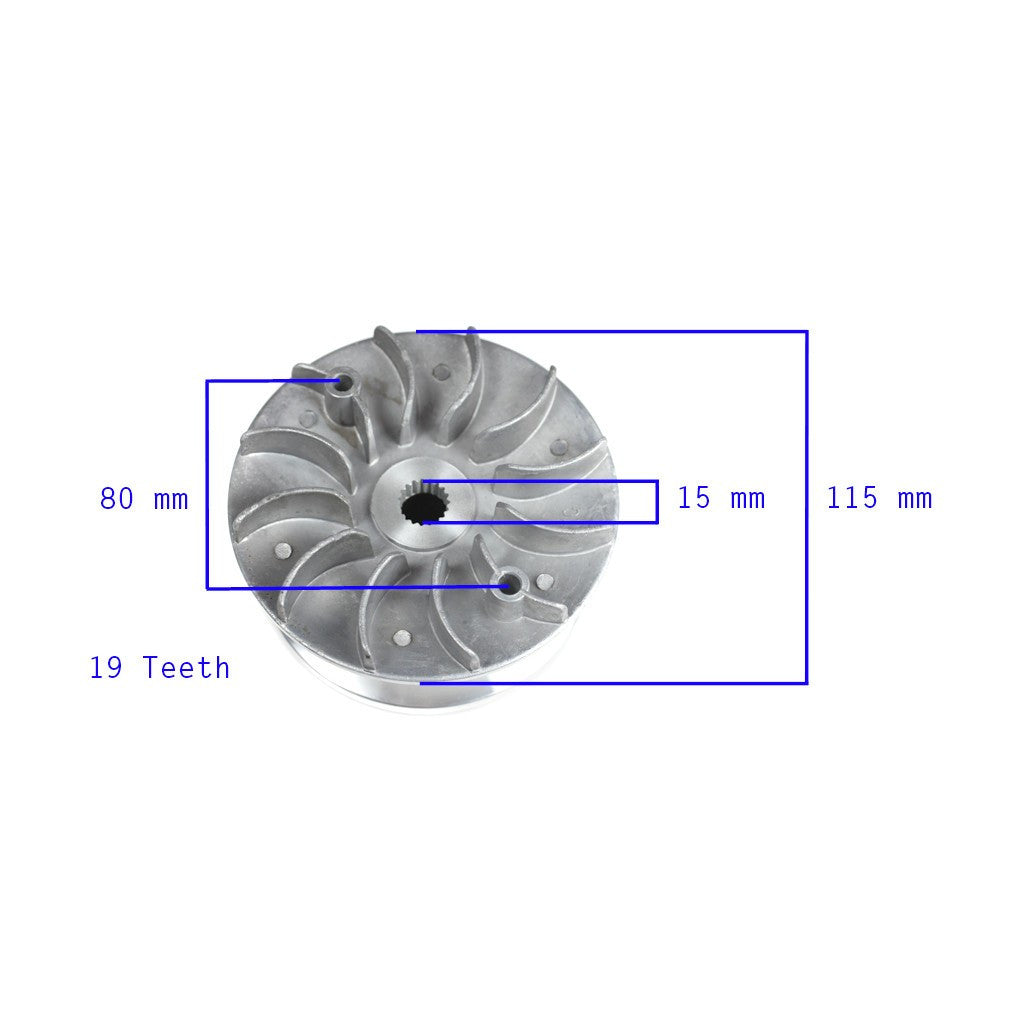

• Drive face center hole: 19 teeth (spline shaft)
• Drive face hole diameter:  15mm (0.59 in)

• Drive face diameter: 11.5cm (4.5 in)

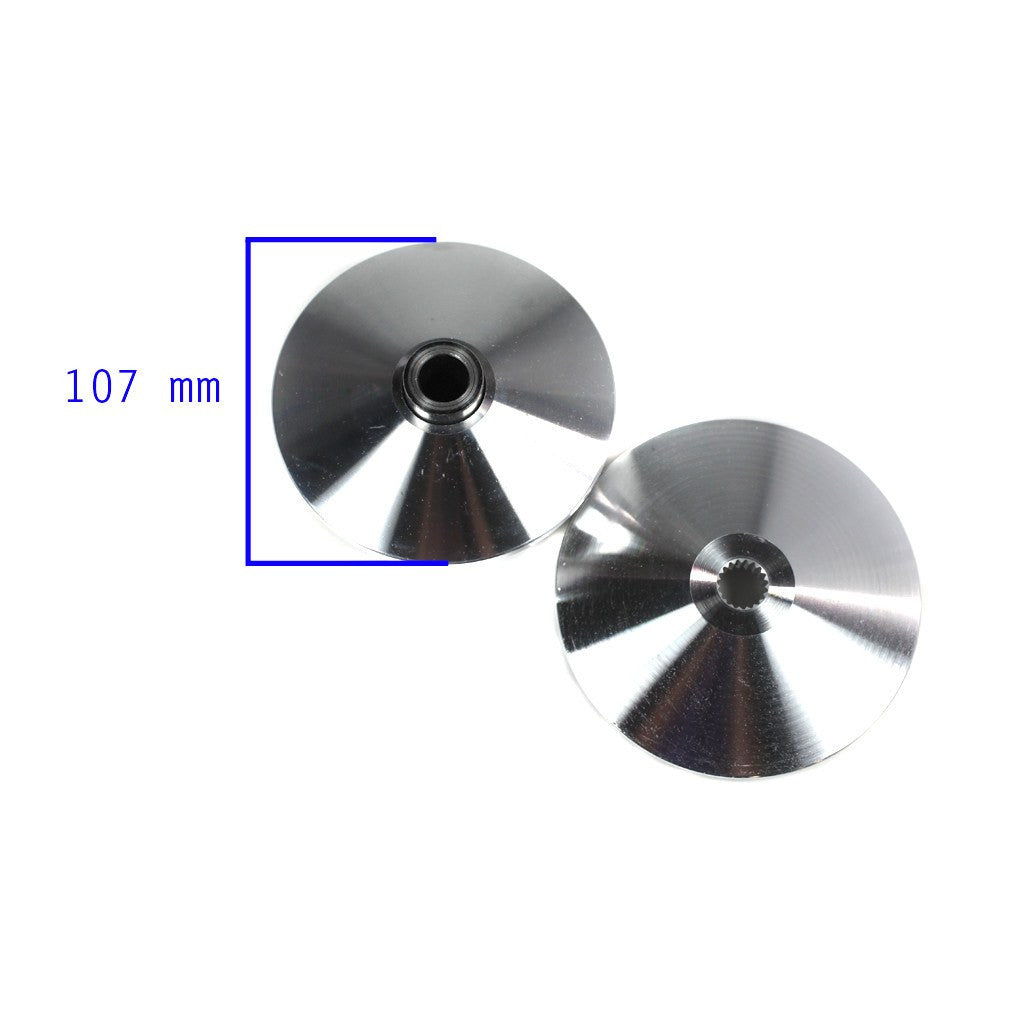

• Variator face diameter:  10.75cm (4.23 in)

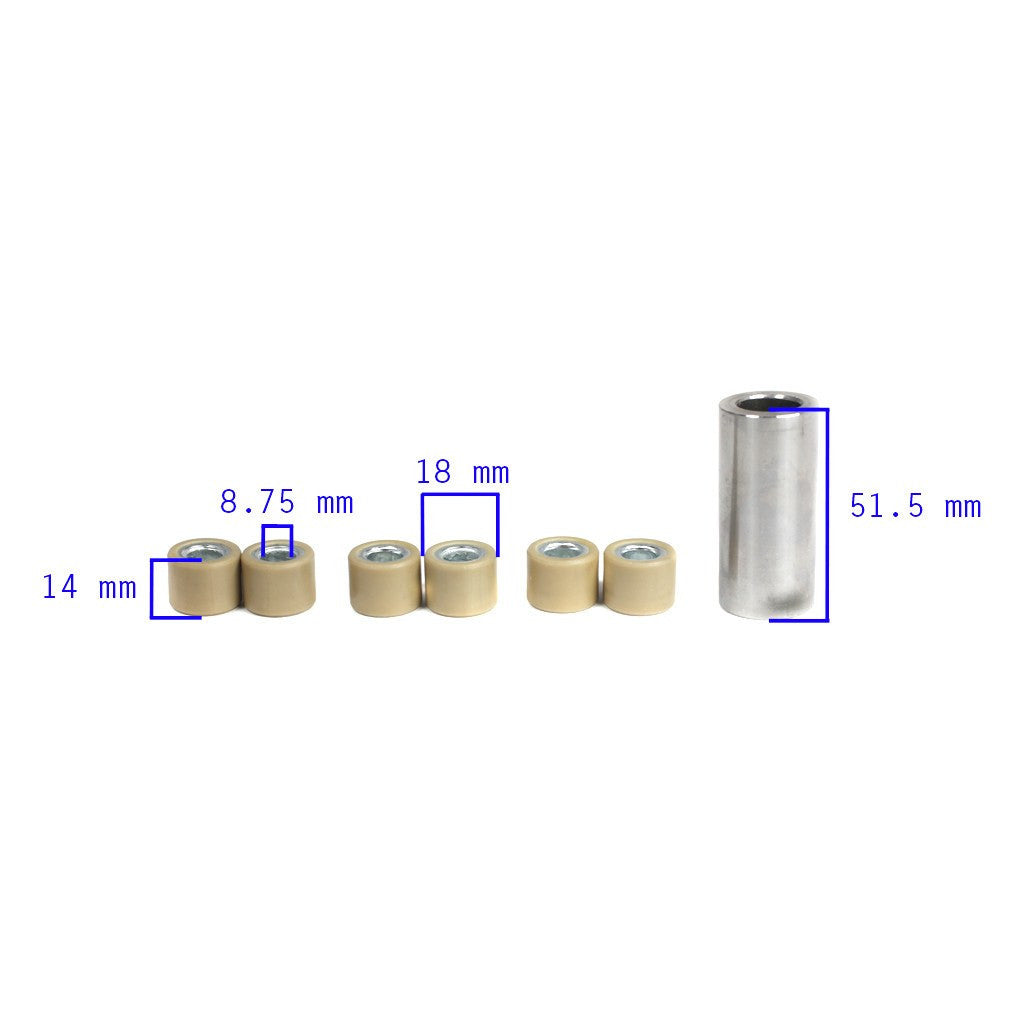

• Variator Pin length:  51.5mm (2.03 in)

• Variator Pin OD:  24mm (0.94 in)

• Variator Pin ID: 14.9mm (0.58 in)

• Roller width: 14mm (0.55 in)

• Roller OD: 18mm (0.71 in)

• Roller ID:  8.75mm (0.34 in)

• 10226A1310

Known to fit the Tao Tao ATA150G and Bull 150 atvs.  The 4FUN, ARROW 150 and Targa 150 go-karts.  And the BWS 150, EVO 150, Lancer 150, Paladin 150, Powermax 150 and Roman 150 scooters.  Please check measurements and pictures on your machine before ordering.
