Part number: 940-CHC001-200

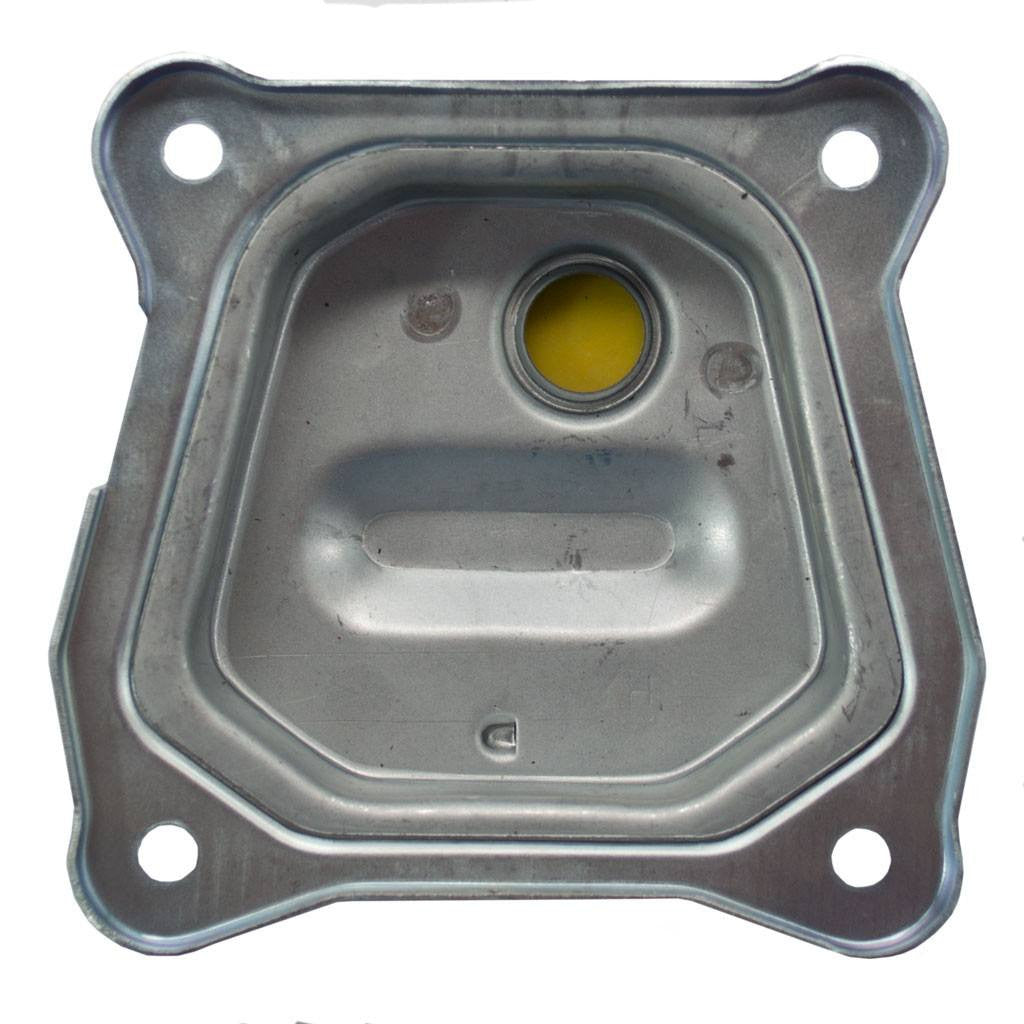

Chinese Cylinder Head Cover for Coleman 196cc Mini Bikes and Go-Karts

This is the OEM cylinder head cover for the Coleman BT200X, CT200U and CT200U-EX mini bikes. Also fits the Coleman KT196 go-kart.

Cover specs:

Compatible with 196cc 4 stroke, GX200 168F Honda clone engines
Overall dimensions: 107mm (4.2 in) x 103mm (4.1 in)
(4) 6.5mm bolt holes at corners

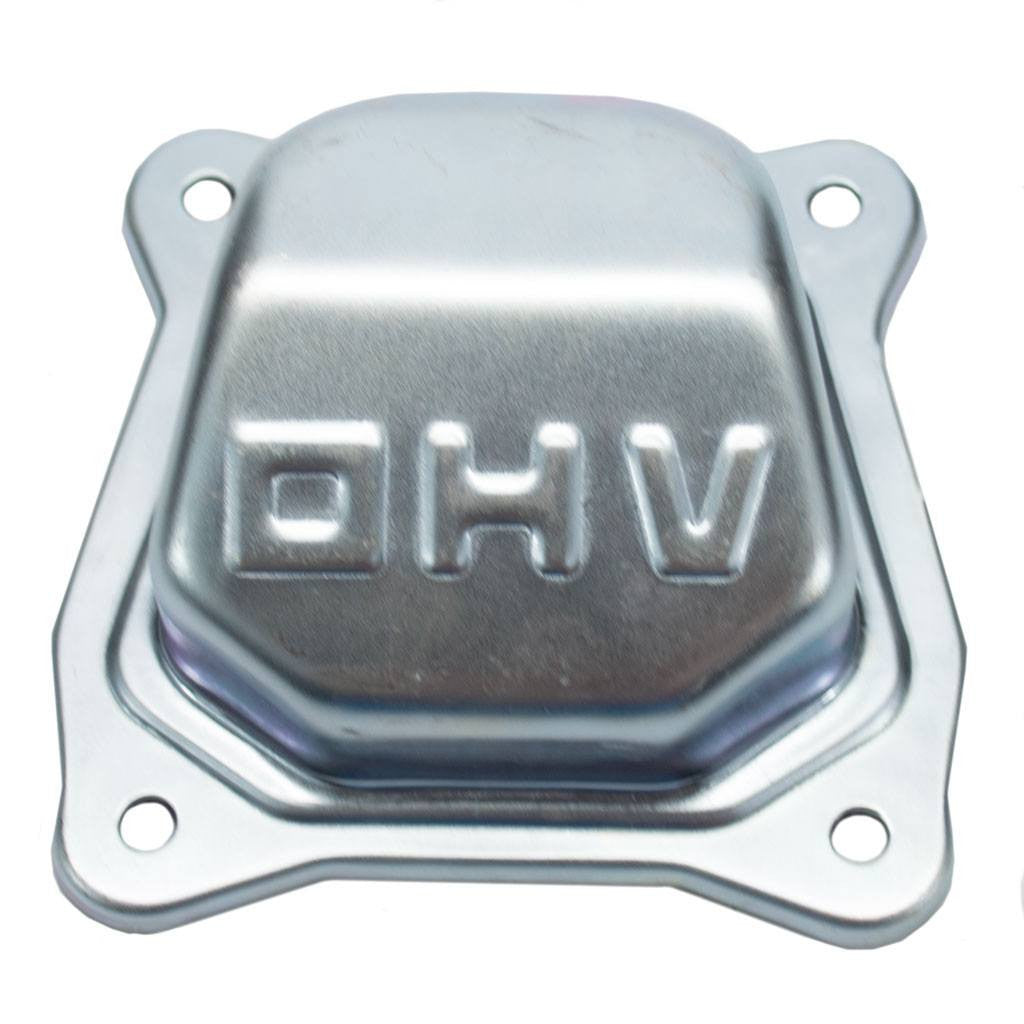

OHV embossed on cover
Hole on right side for air duct
Gasket NOT included
12310/168F

May work on other 168F engines. Please check pictures and measurements before ordering.

Fits the Lowe's Axis Off-Road M200 mini bike.

Shipping details:

Do you need your cylinder head cover fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
