6-Wire / 2-Plug Voltage Regulator Rectifier for 250cc, 260cc and 300cc Linhai Engines
Version 24
NOTE: This voltage regulator is identical in size to our version 72, however, the wiring is different. Please look closely at wires coming out of regulator!
Voltage regulators regulate the electric current from the battery to the other electrical components. If you find that your electrical system overloads when you rev up the machine, then you most likely need to replace the voltage regulator. Please look at pictures and compare measurements to ensure that you are choosing the right voltage regulator.

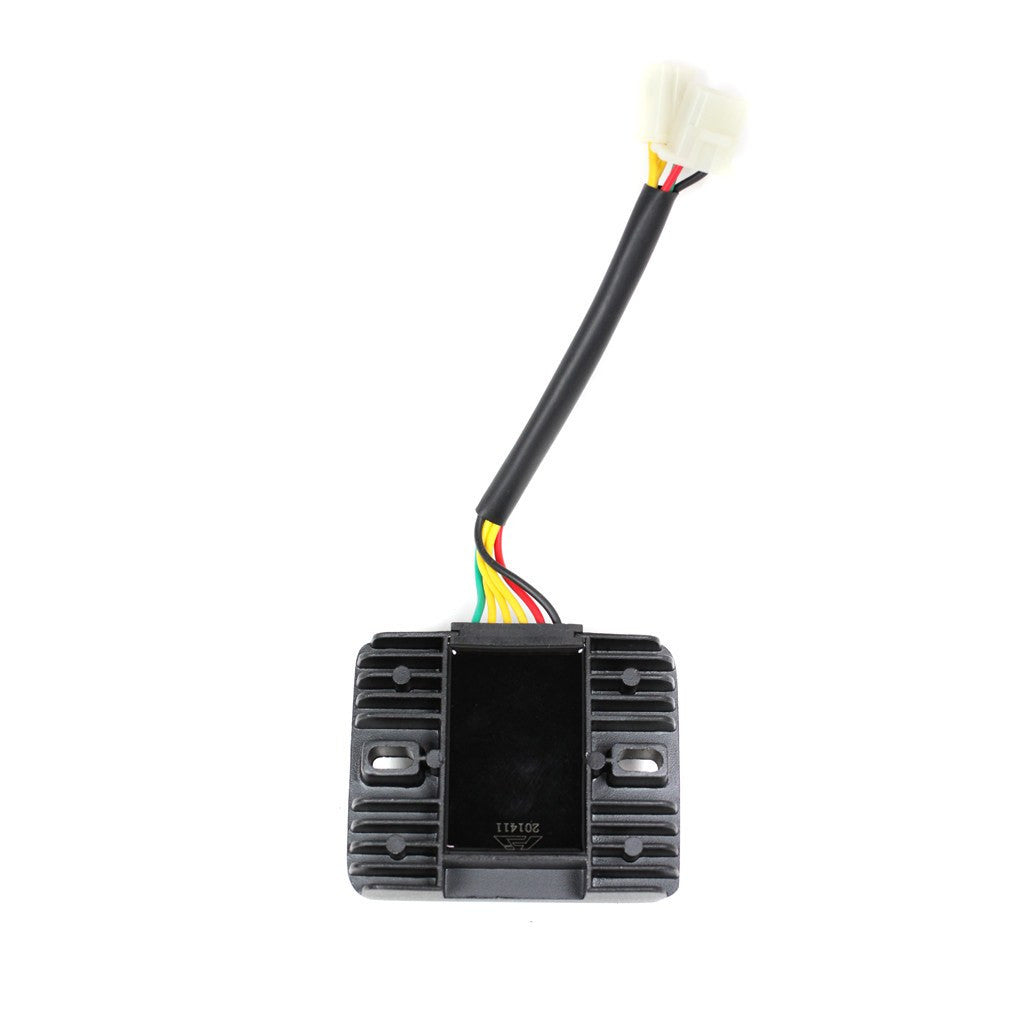

Regulator details:
- 6-wire
- 2-plug
- 250cc scooters and atvs

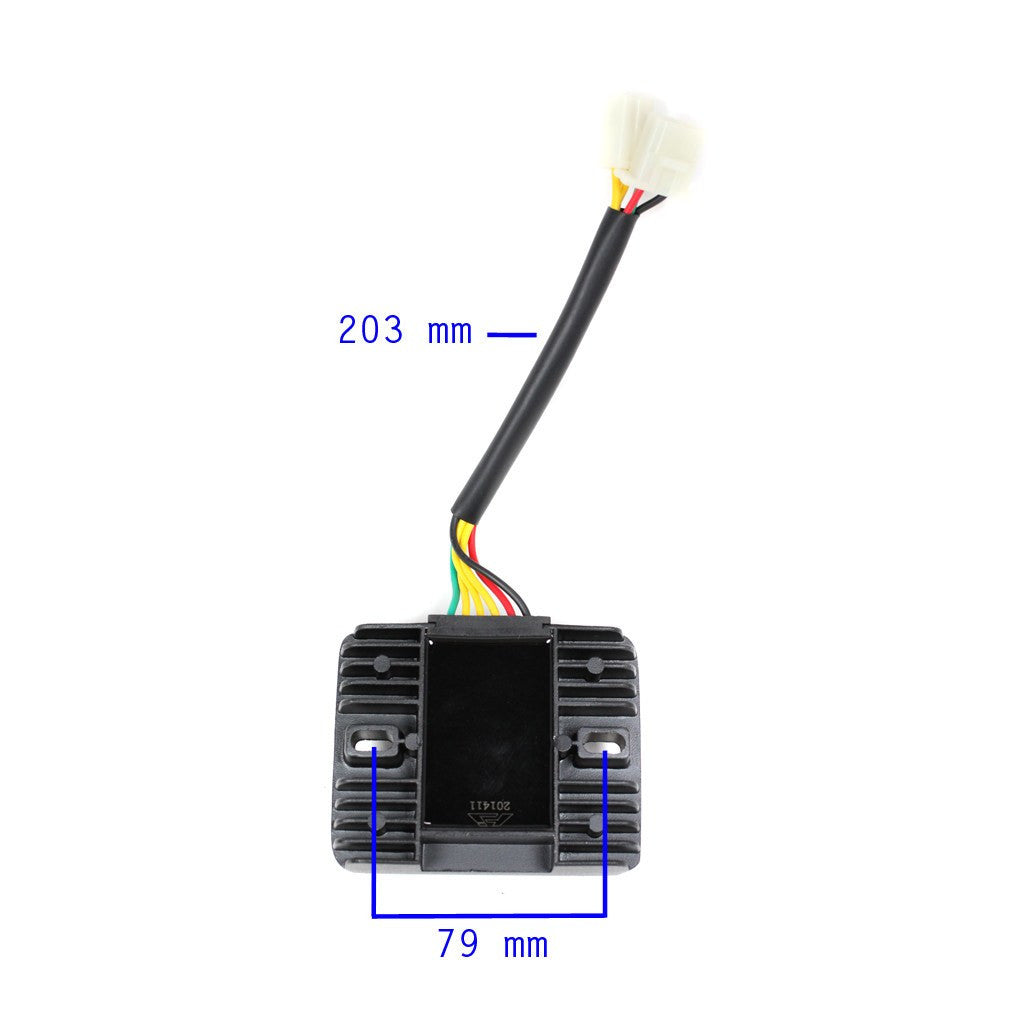

- Wiring harness length: approximately 20.3cm (8.0 in)

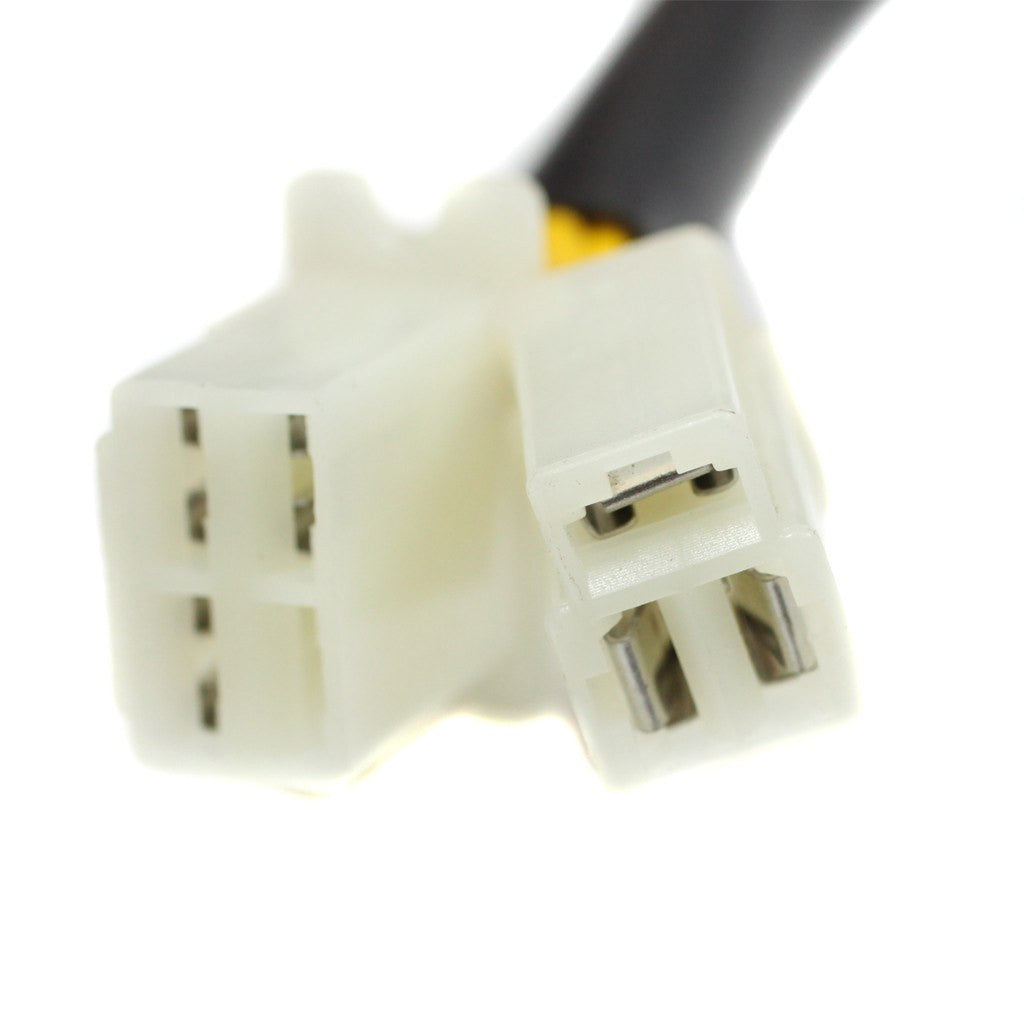

- The larger plug is a 4-wire plug with one empty slot.
- All three yellow wires go into smaller 3 prong plug.
- The plug dimensions are 19mm x 12mm (0.75 in. x 0.47 in)
- The smaller plug has 3 wires with one spade at a 90 degree angle to the other two spades.
- This plugs dimensions are 17mm x 13mm (0.67 in. x 0.51 in)
- The mounting holes are center to center 79mm (3 1/8 inch)

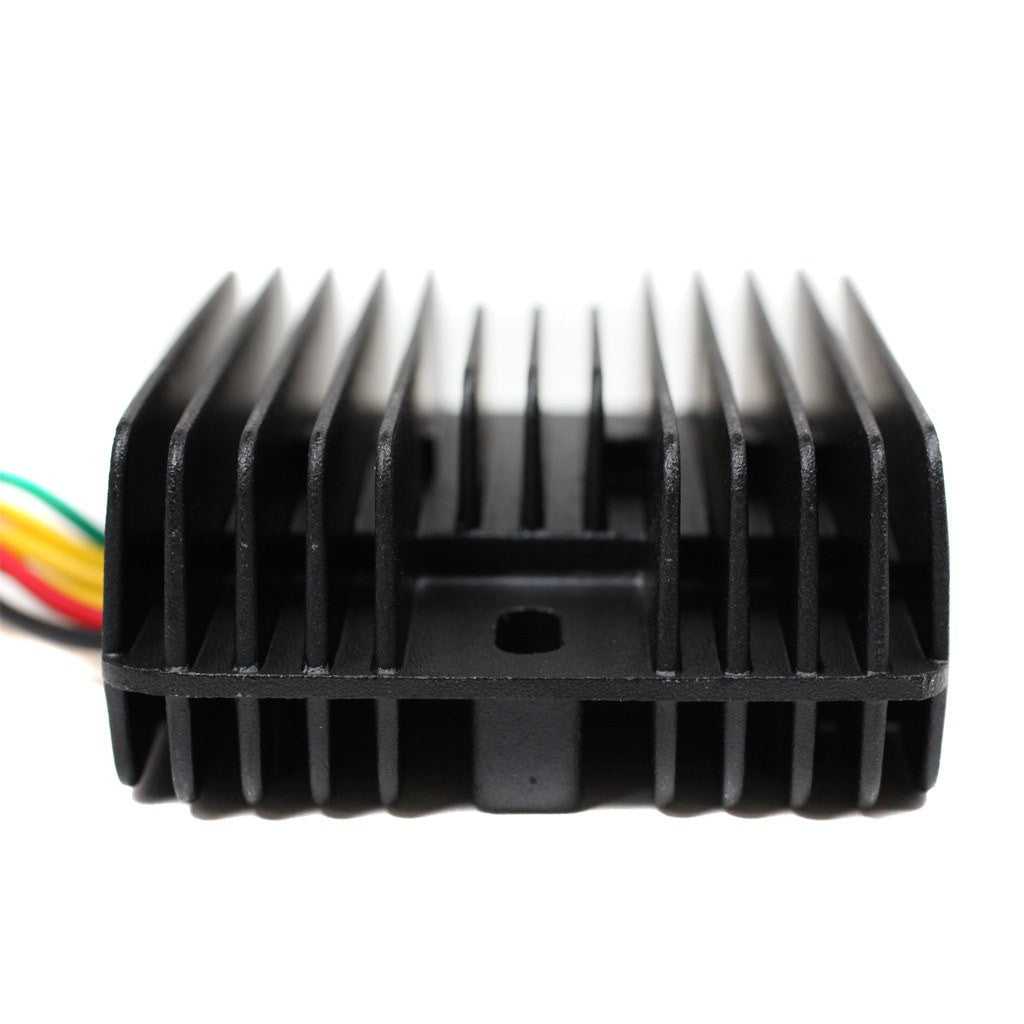

- Overall size is 109mm x 85mm x39mm (4.3 in. x 3.3 in. x 1.5 in)

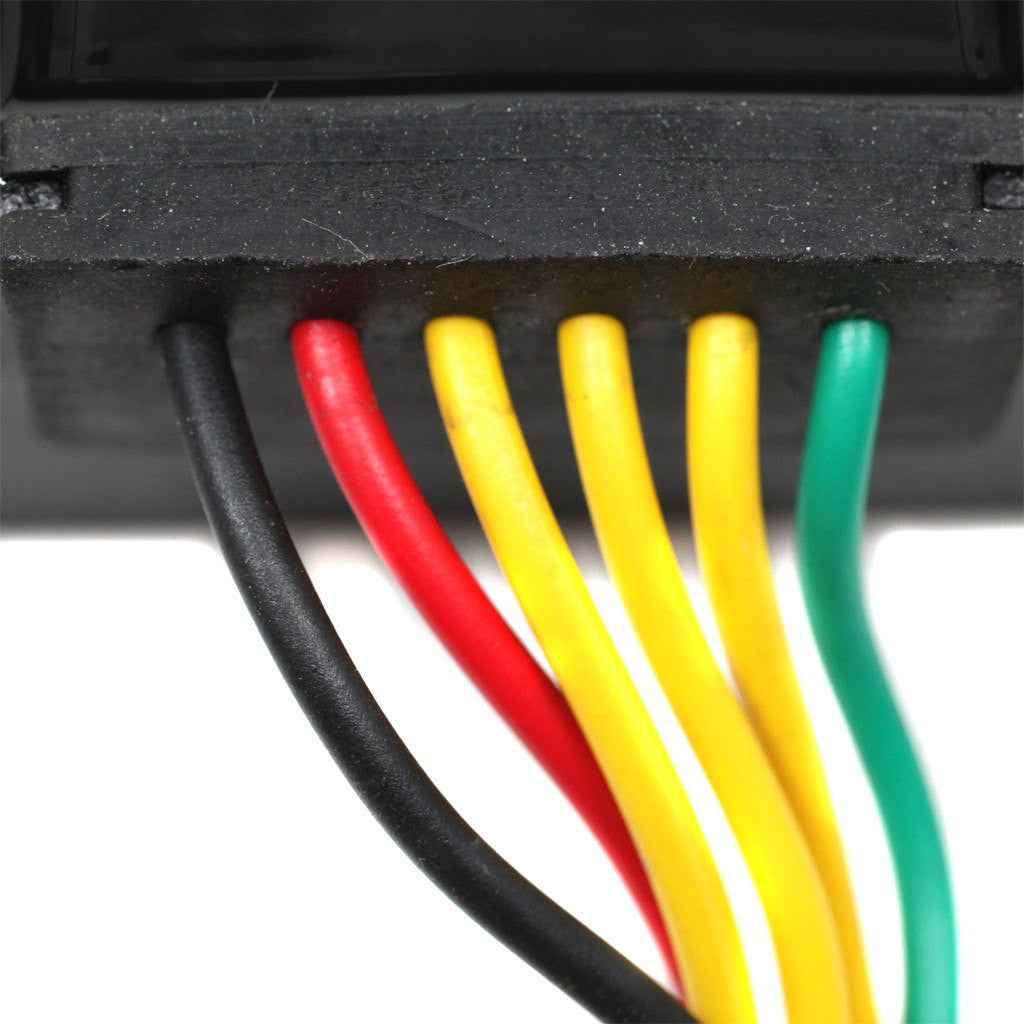

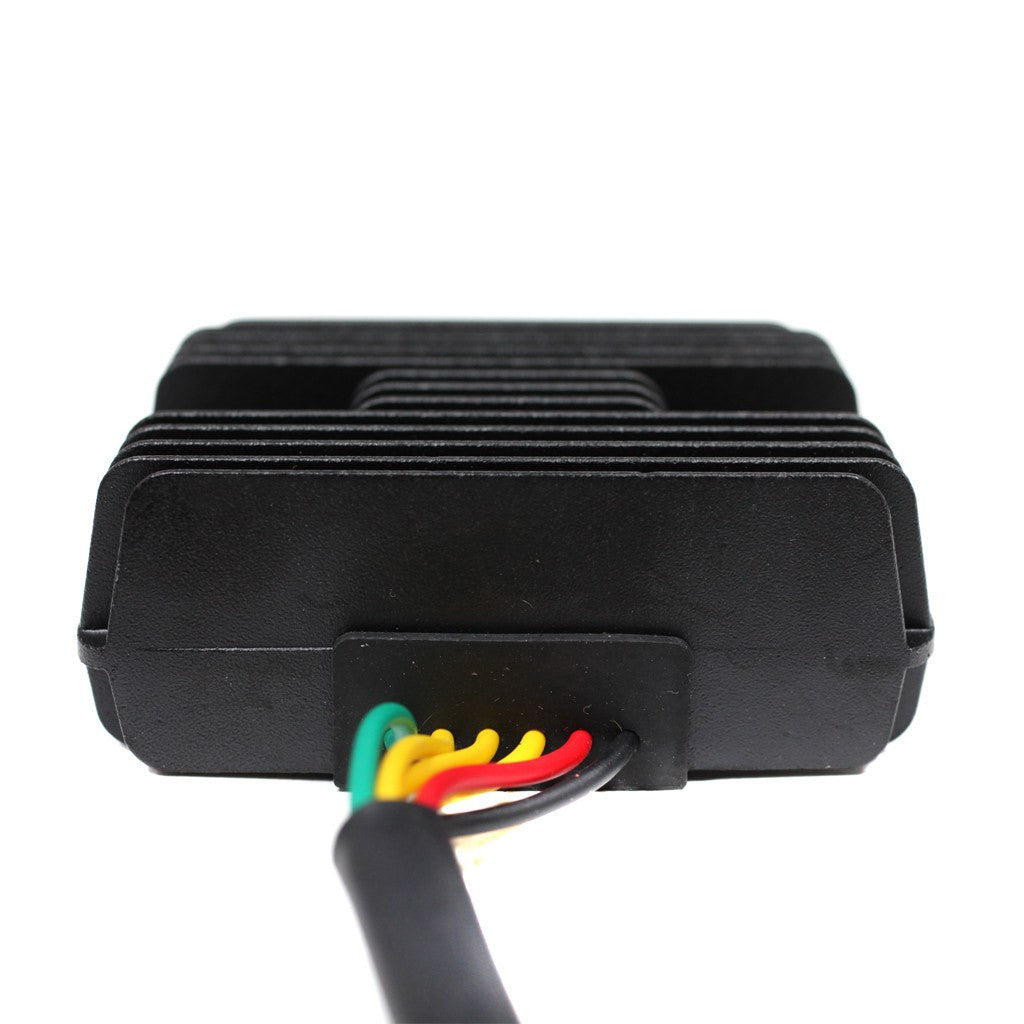

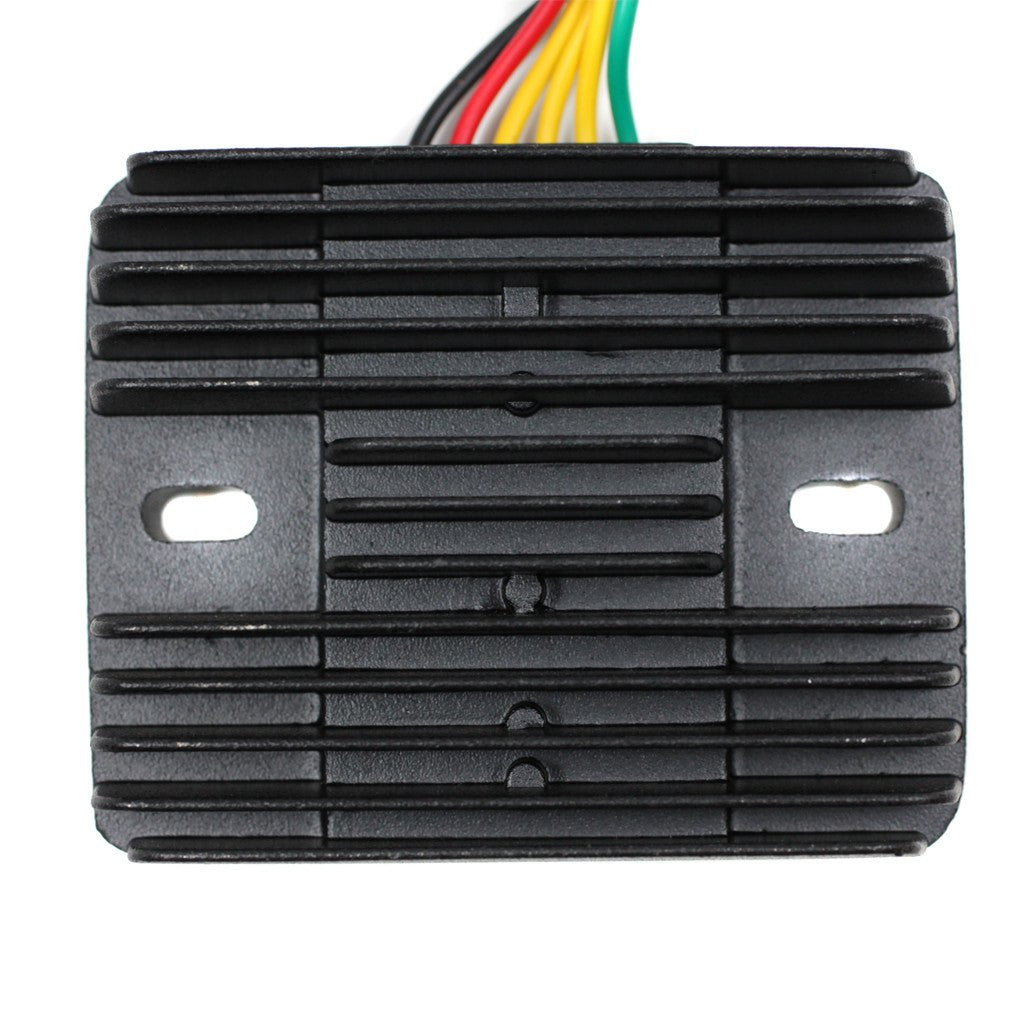

- Wire color left to right with fin side up... GREEN, YELLOW, YELLOW, YELLOW, RED, BLACK.
Shipping details:
Do you need your voltage regulator fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
