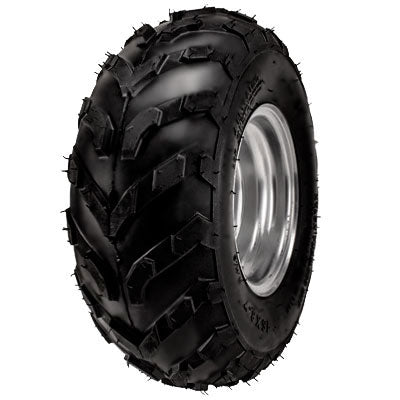

Rim and Tire Assy 16x8-7 - 3 Bolt - 8mm - Left Front or Rear - Tao Tao ATA110D, ATA125D

Chinese ATV Tire with Rim Wheel Assembly LH

16x8-7 - 3 bolt

Tires can be shipped standard shipping only due to the size and weight of the package.

Chinese rim and tire combo for kid's atvs and go-karts, used on several makes and models. Please use detailed measurements and pictures to help you get the correct rim for your machine.

Rim details:

• Overall width: 12.7cm (5.0 in)

• Overall diameter: 20.2cm (7.95 in)

• Diameter without bead lip: 18cm (7.0 in)

• 3 bolt holes
• Center hole diameter: 52mm (2.04 in)

• Bolt hole spacing: 78mm (3.0 in) center to center
• Bolt hole diameter: 8mm (0.31 in)

• Front or rear
• Left side
• 20710

Tire details:

• 4-ply rating
• 16x8-7
• Tire diameter: 16.0 inches

• Tire width: 8.0 inches

• Tubeless
• Directional tire mounted for left side of machine while sitting on seat.

The last number on your TIRE will let you know if you are needing a 7.0 inch rim.  This is a 7.0 inch rim.

Common ordering mistake!

This rim has 8mm bolt holes.  Tao Tao rims have both 8mm and 10mm bolt holes.  Sometimes an older unit used 8mm and a new unit uses 10mm.  Please don't order until you have verified the size of your bolt holes.

Do you carry a spare on your ATV?  Of course not!  That's why we highly recommended installing LiquiTube Sportsman Tire Sealant in all your atv tires.  This tire size uses 20 ounces of Liquitube Sportsman per tire.  If you are unfamiliar with this product, I suggest you watch the video on our website HERE!

Shipping details:

Do you need your tires fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!
