Front Sprocket 530-15 Tooth - 6 Splines - 200cc 250cc Engine
Front Sprocket 530-15 Tooth - 6 Splines - 200cc 250cc Engine is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Front Sprocket 530-15 Tooth - 6 Splines - 200cc 250cc Engine

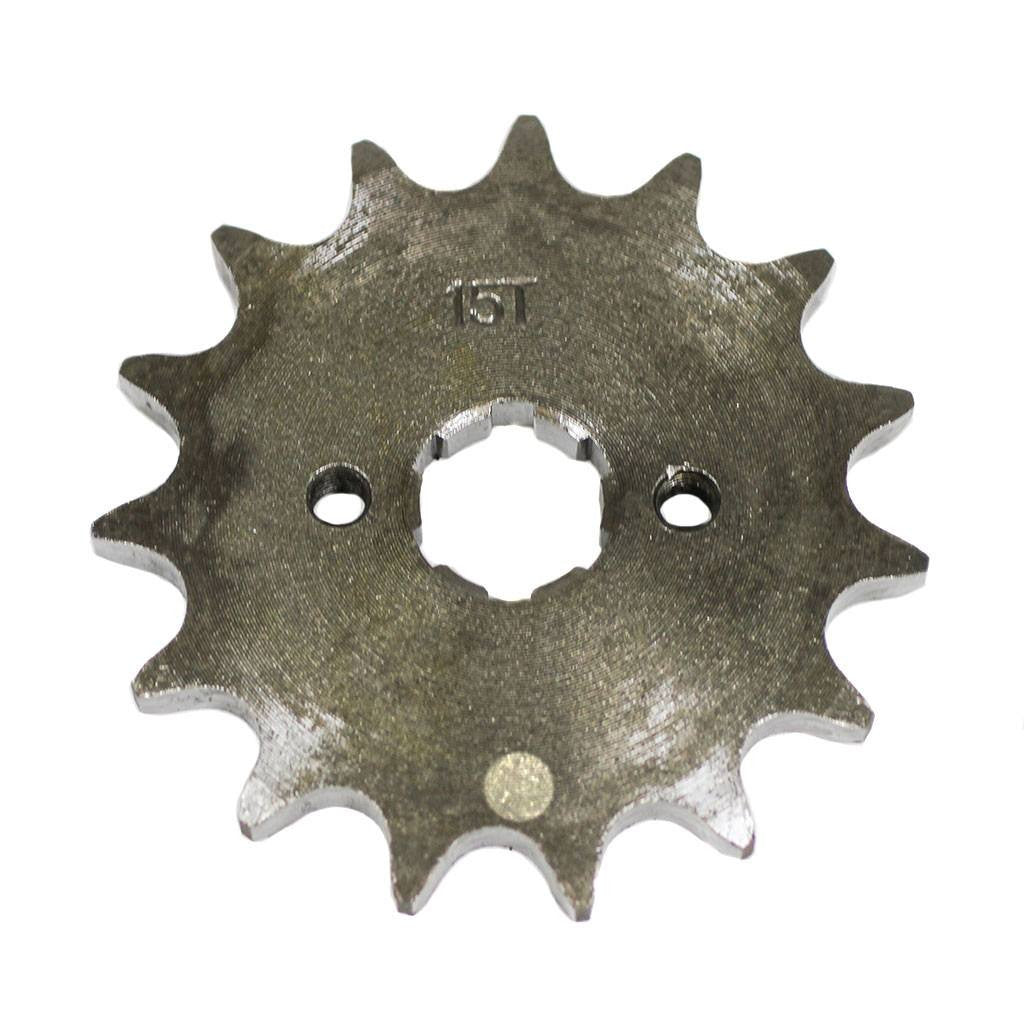

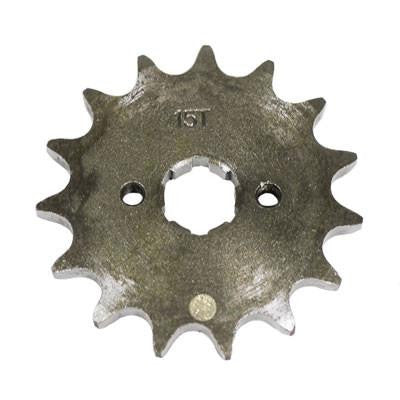

ATV Front Sprocket - 530-15T
This front sprocket is used on the Chinese CG200 and CG250 engines. This sprocket has 15 teeth and is compatible with the 530 chain ONLY.
Sprocket details:
- #530 chain
- 15 Teeth
- OD: 81mm (3.2 in)
- 6 Splines
- ID: 20.1mm (0.79 in) valley to valley
- ID: 17.6mm (0.69 in) tooth to tooth
- Mounting holes distance: 34mm center to center
- Uses retainer with bolts (not included)
Be sure to measure your chain or current sprocket before ordering. 530 chain has 5/8 inch pitch and 0.40 inch roller diameter. Most sprockets have the chain size and teeth count stamped into the metal.
Here is the link to the retainer with bolts:
Chinese ATV Front Sprocket Retainer with Bolts
