Front Spindle Rod End for ATVs and Go-Karts

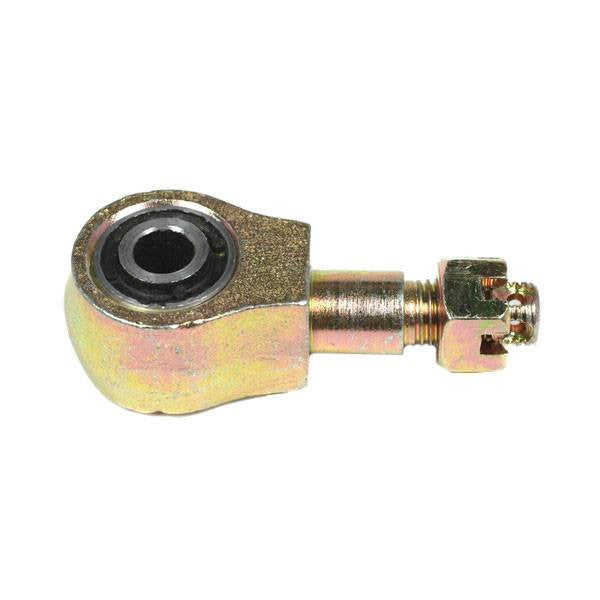

Chinese ATV Front Spindle Rod End

This Chinese atv rod end is the replacement part for many older model 4-stroke Chinese  atvs, go-karts and other applications. This rod end fits 50cc, 70cc, 90cc, 100cc, 110cc, 125cc and 150cc models.

Rod end description:

• Rod end suspension
• Overall length (+/- 2mm): 67.5mm (2.7 in)

• Thread length: 19mm (0.75 in)

• Threads: M10 x 1.25 pitch
• Overall rod length: 32.5mm (1.28 in)

• Ball width (+/- 1mm):  30mm (1.18 in)

• Ball thickness: 21.75mm (0.85 in)

• Hole ID: 8mm (0.32 in)

• Comes with nut
• Sold as EACH
• Compatible with 50cc-150cc 4 stroke
