Part number:
1013-IM287-500

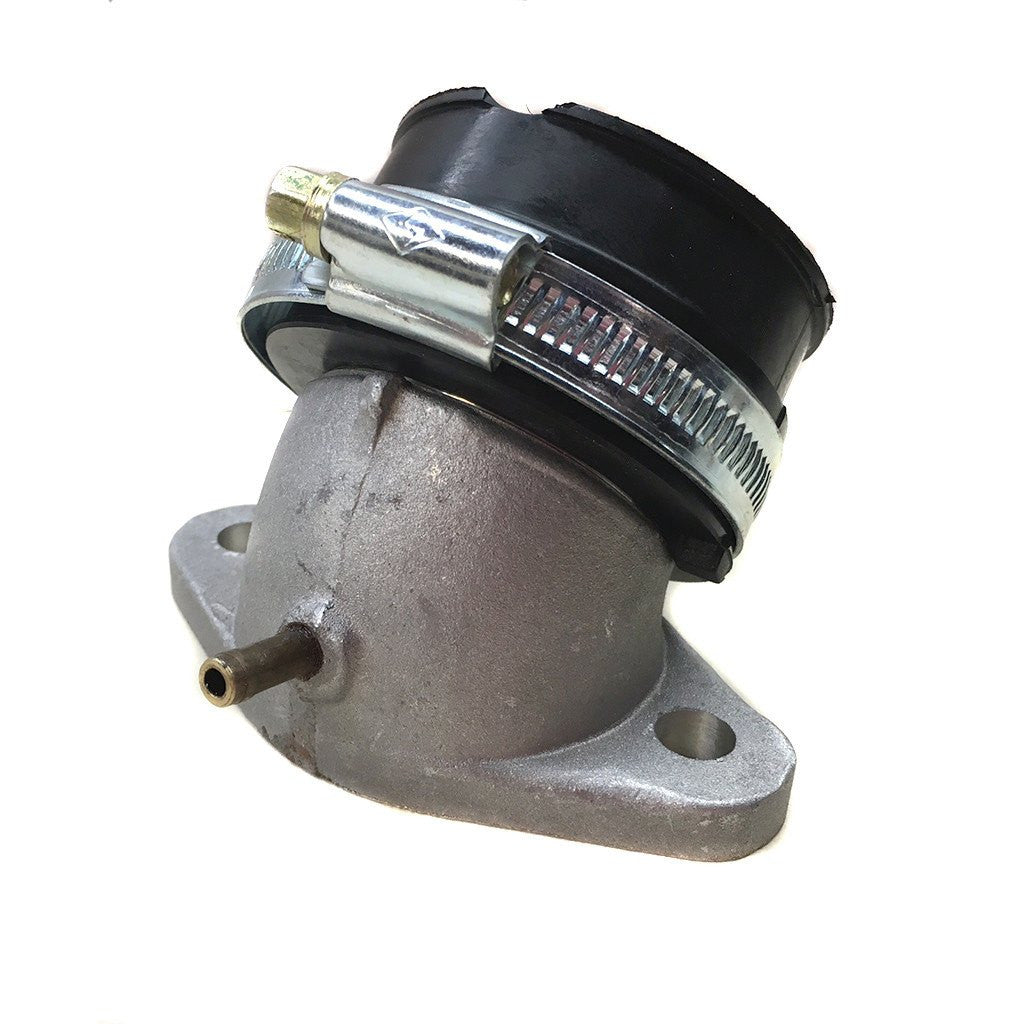

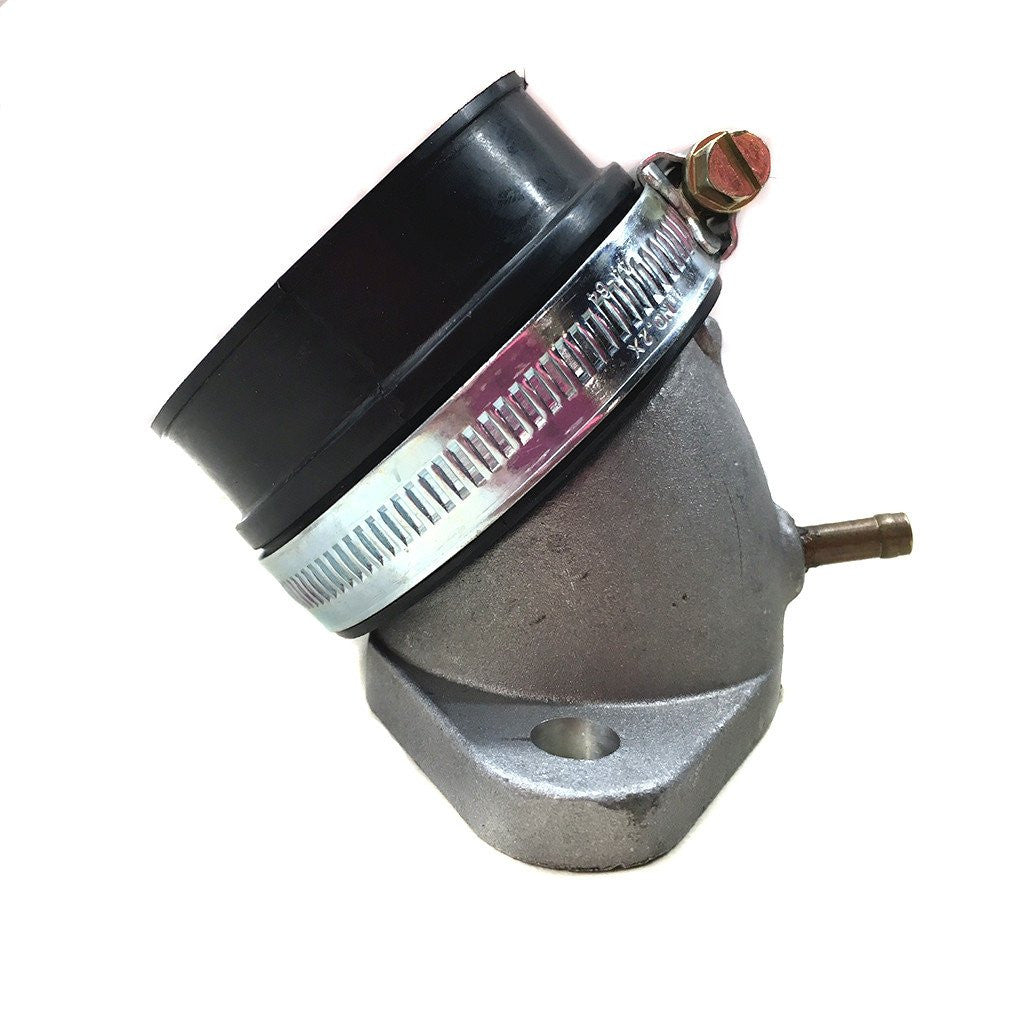

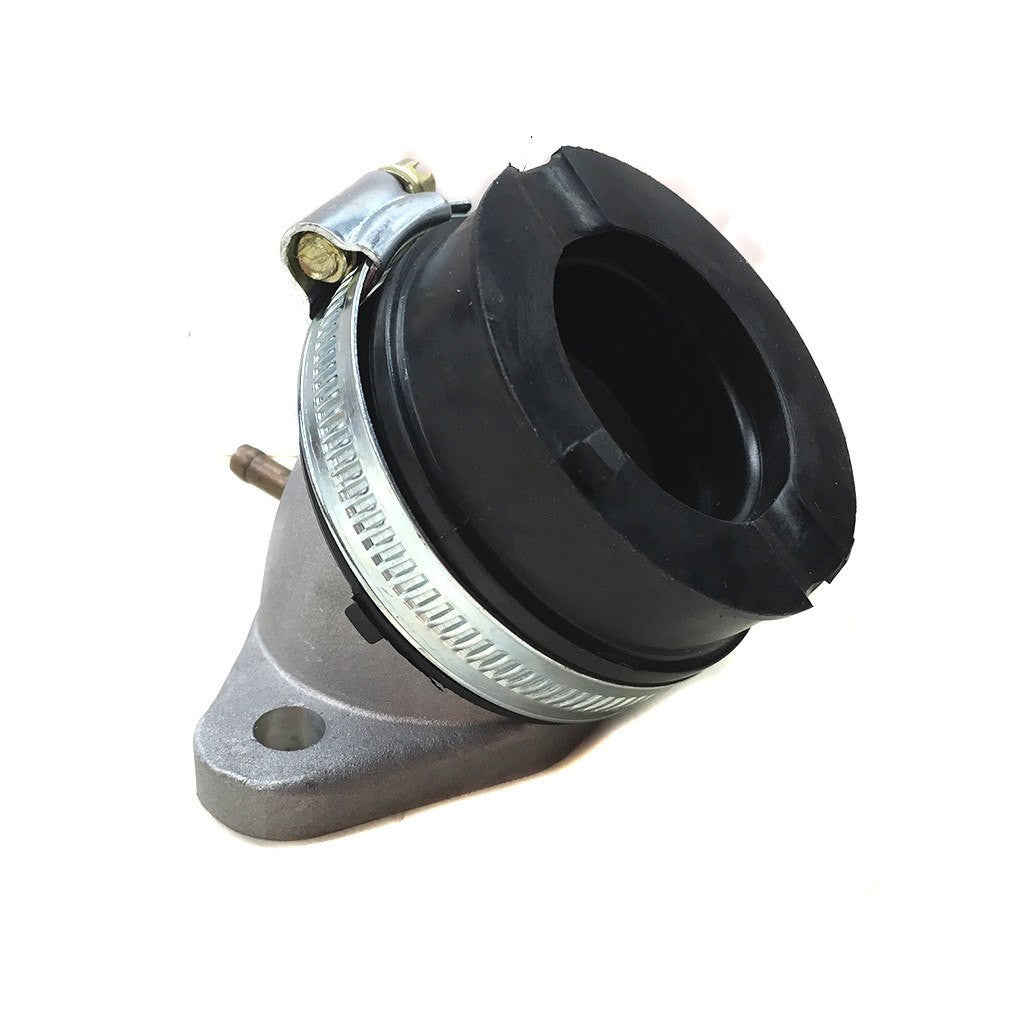

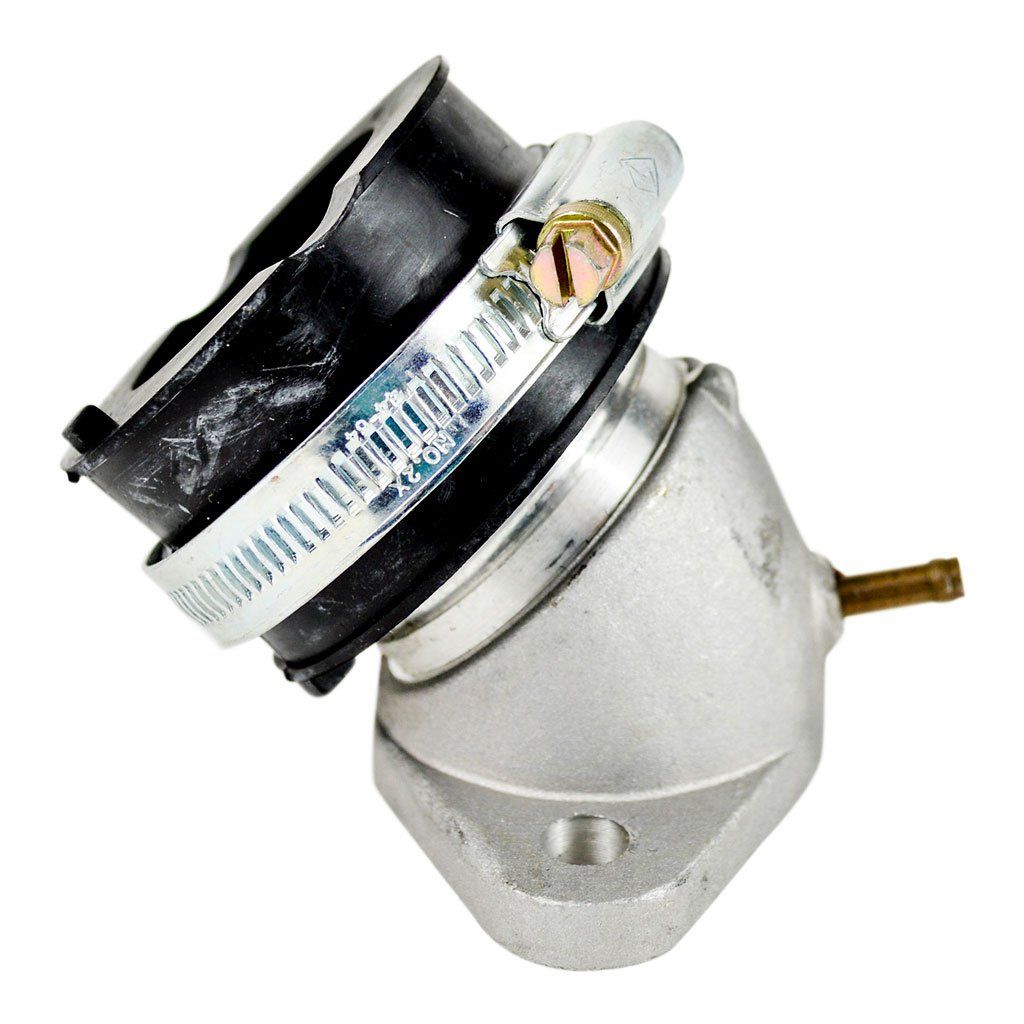

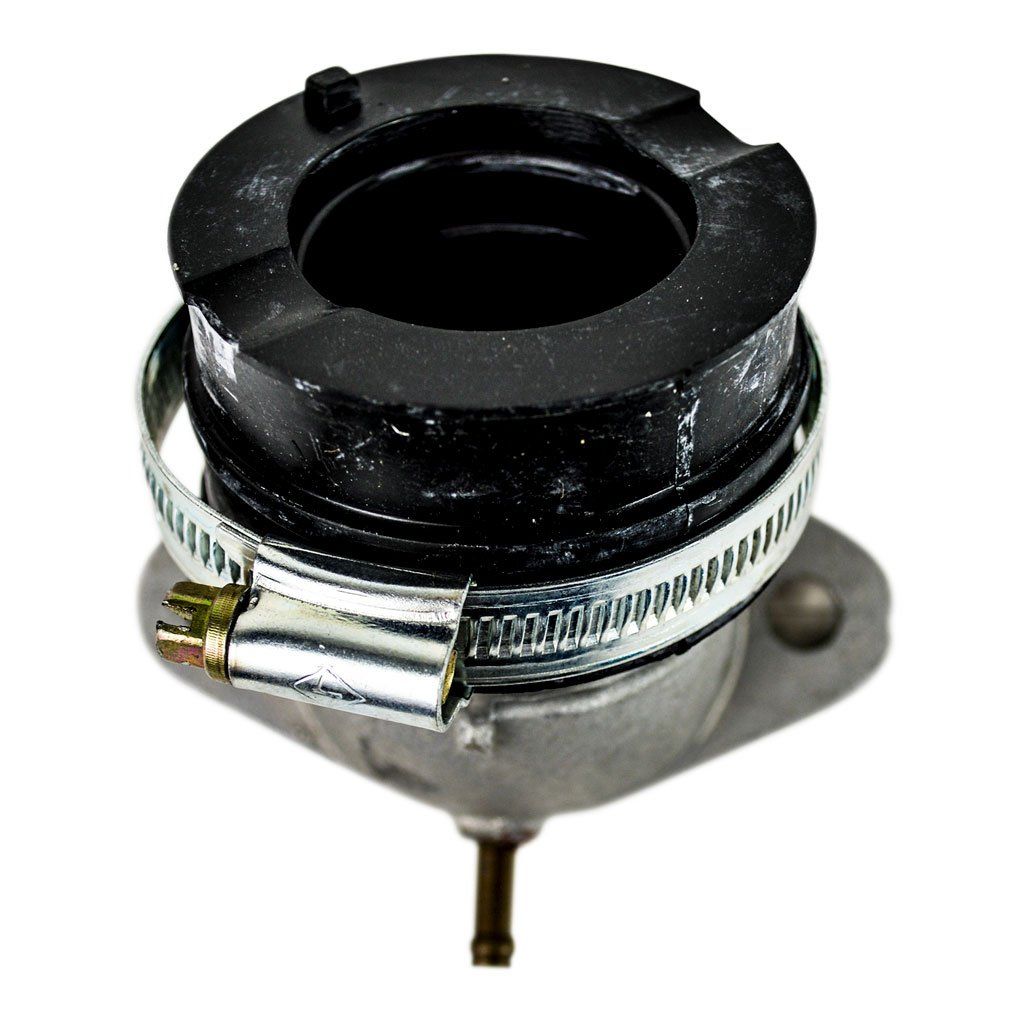

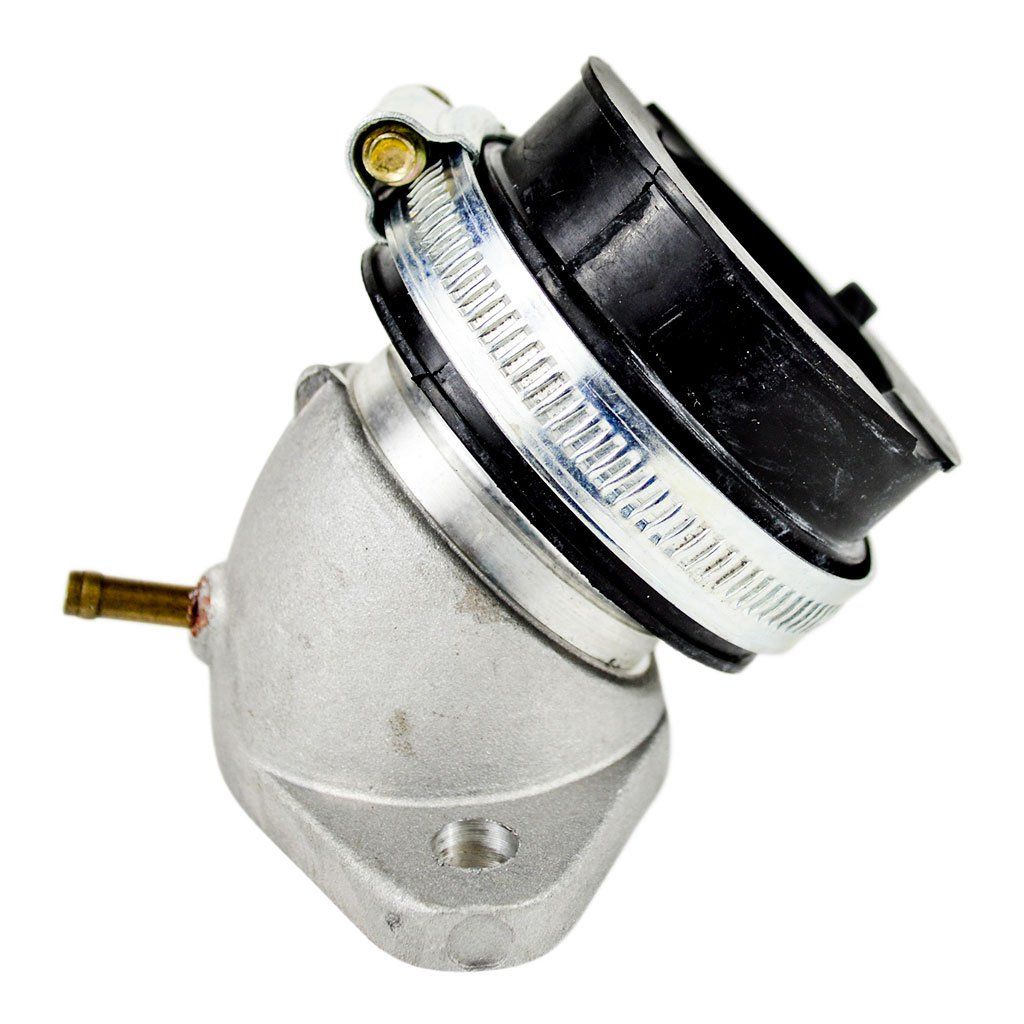

Chinese Intake Manifold 35mm ID
Version 500
Chinese 500cc intake manifold fits many 4-stroke models of ATVs, dirt bikes, go karts, scooters, and mopeds. Check pictures and measurements to verify this one will fit your machine/engine. Measurement on bolt holes are center-to-center.
Manifold description:

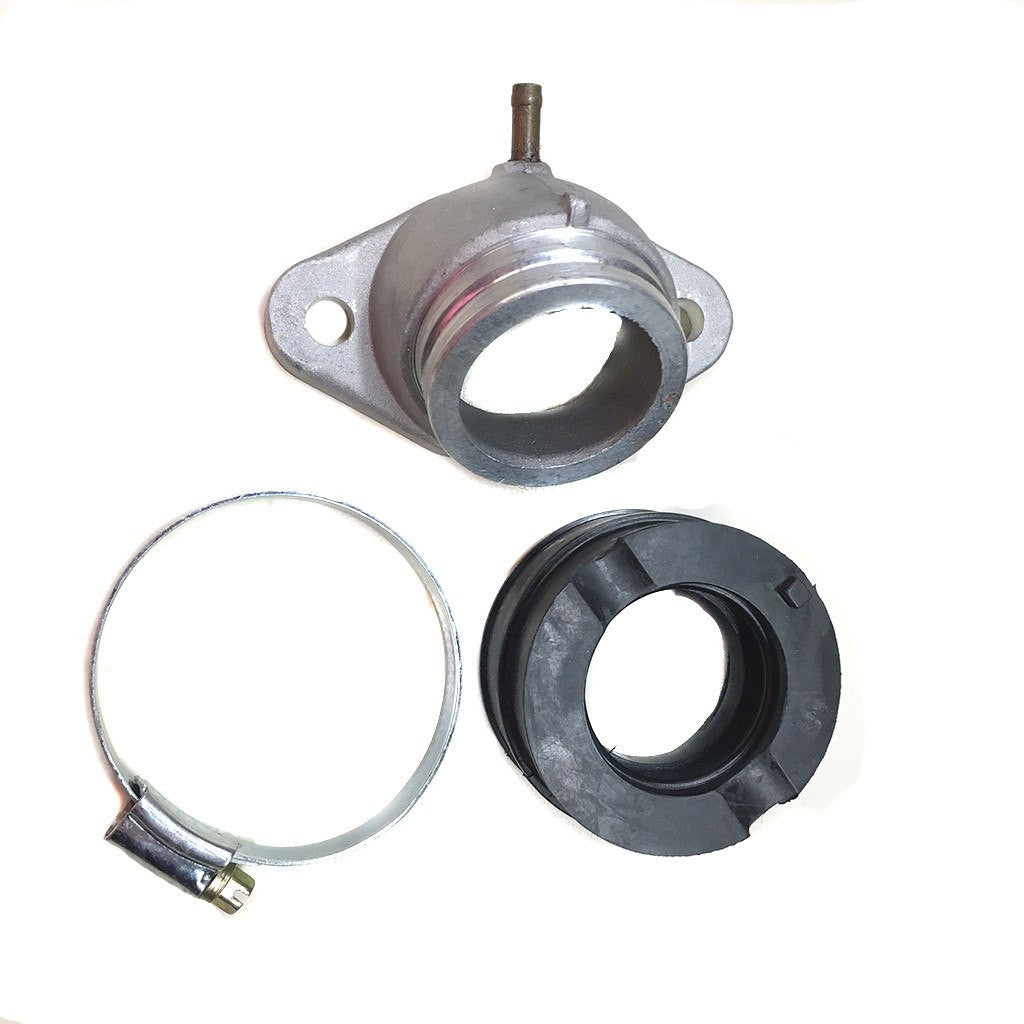

- Includes rubber boot

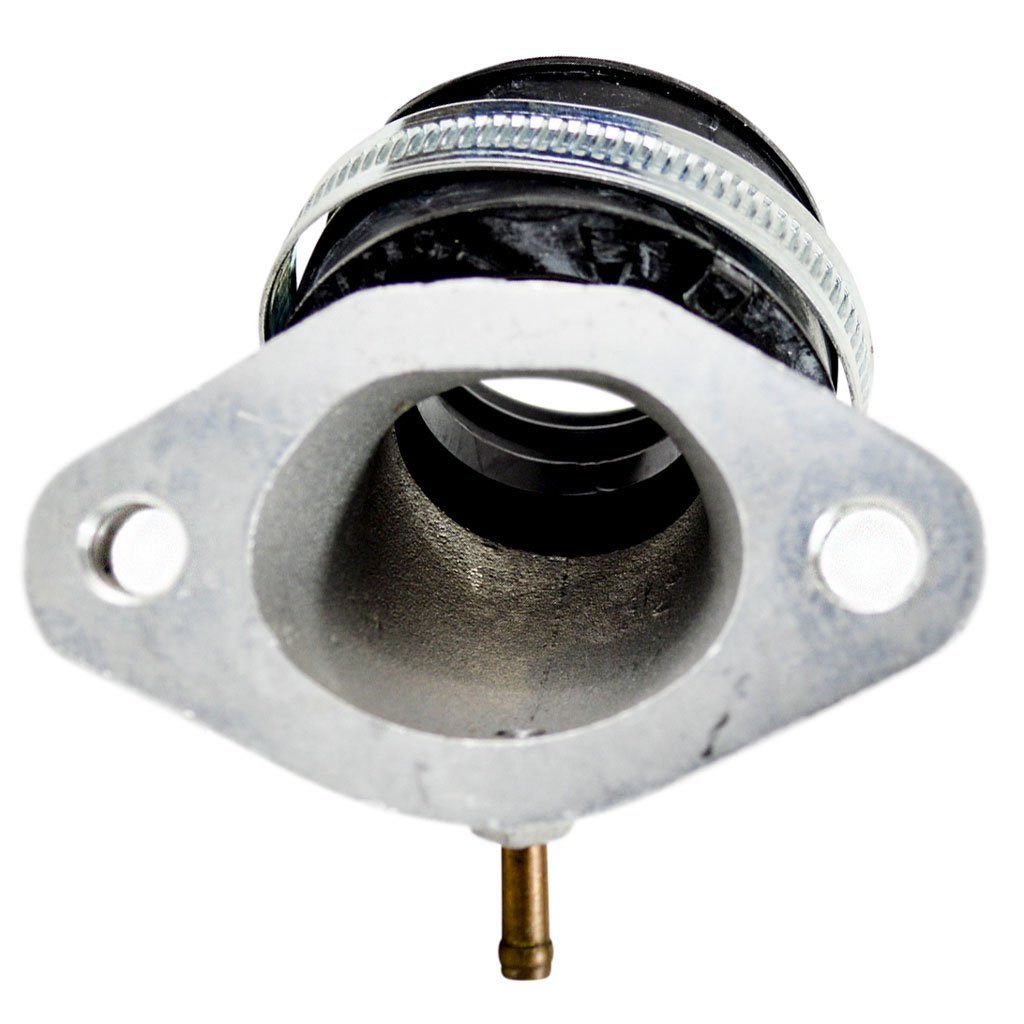

- Elongated opening where manifold bolts up

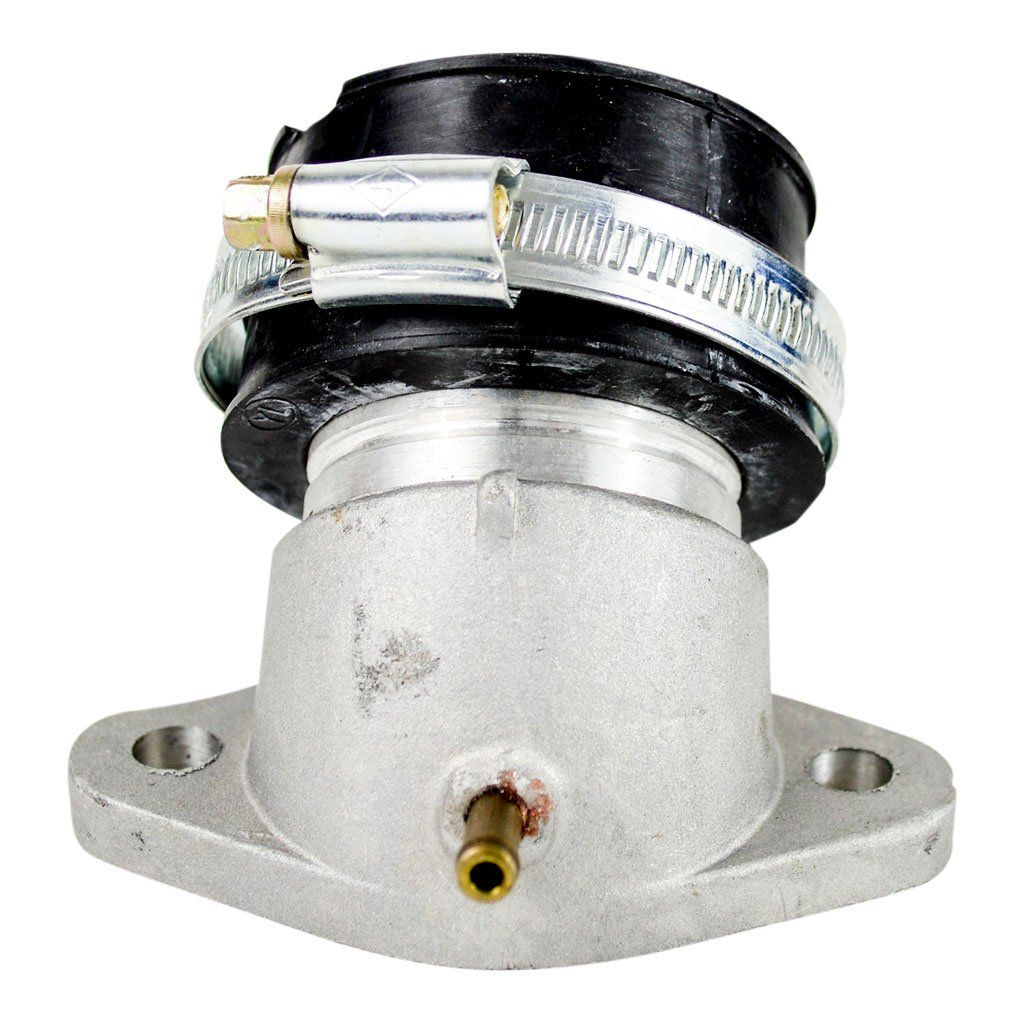

- Vacuum nipple on back
- Overall length: 52mm (2.0 in) manifold only
- ID of pipe: 35mm (1.36 in)
- OD of pipe: 45.2mm (1.78 in) where rubber boot goes on
- Rubber boot is 32.7mm (1.29 in) long
- Bolt holes are 70mm (2.76 in) apart center-to-center
Known to fit Kazuma Jaguar 500cc, Xinyang.
