VMC Chinese Parts

Part number: 8000-SR001-31004

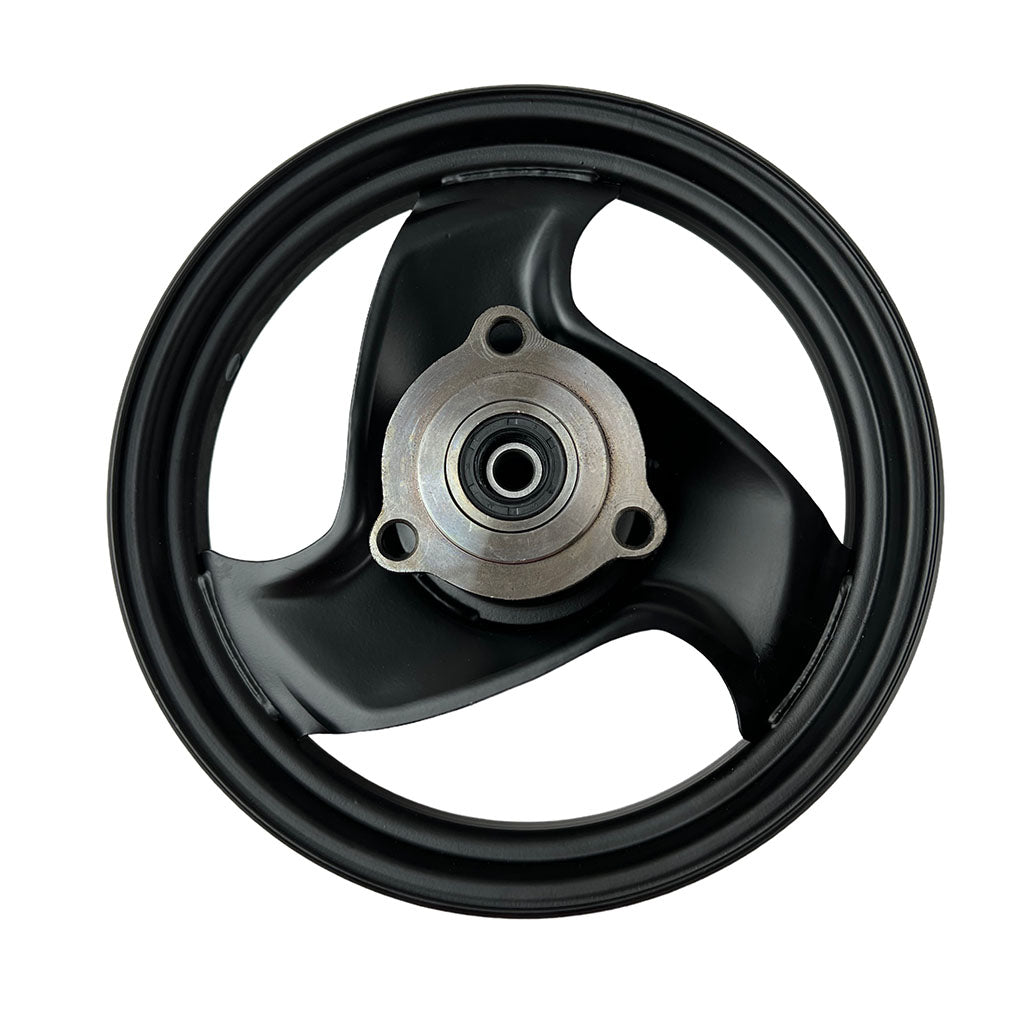

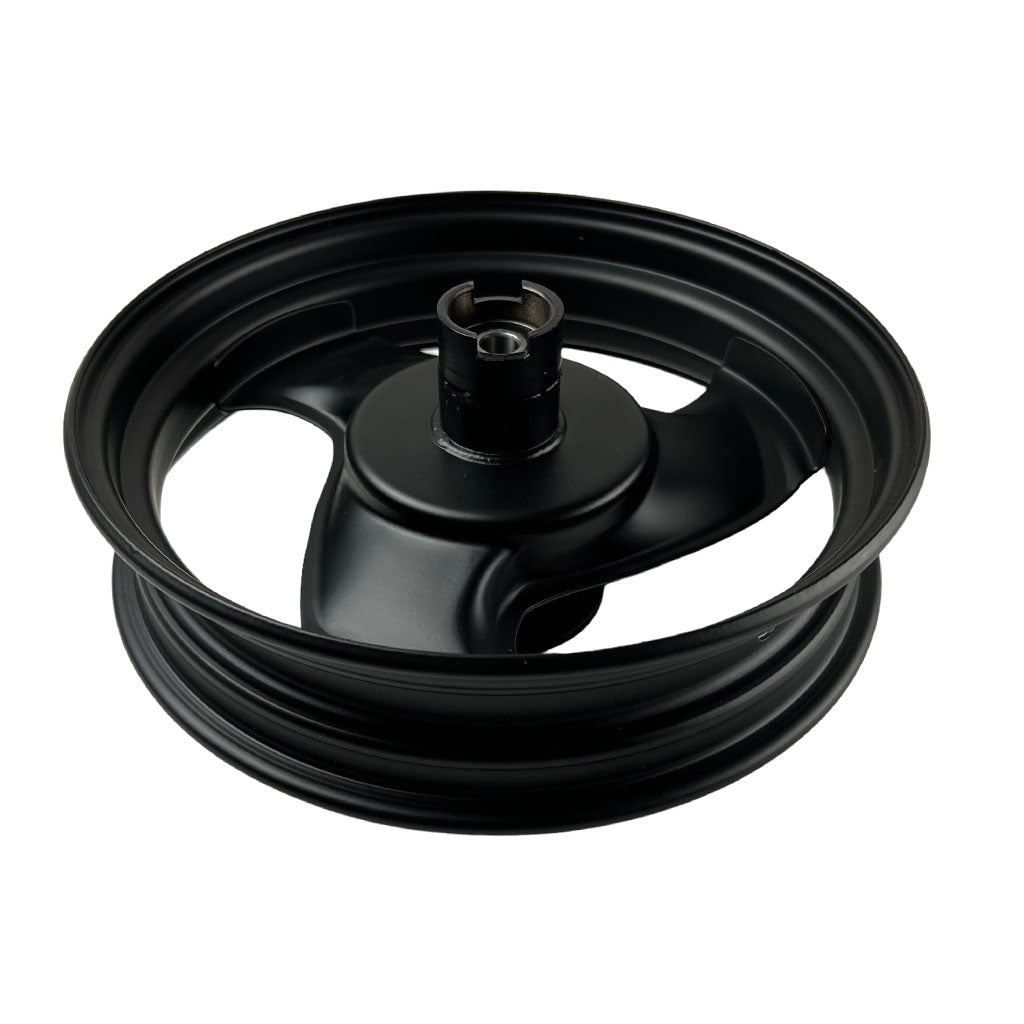

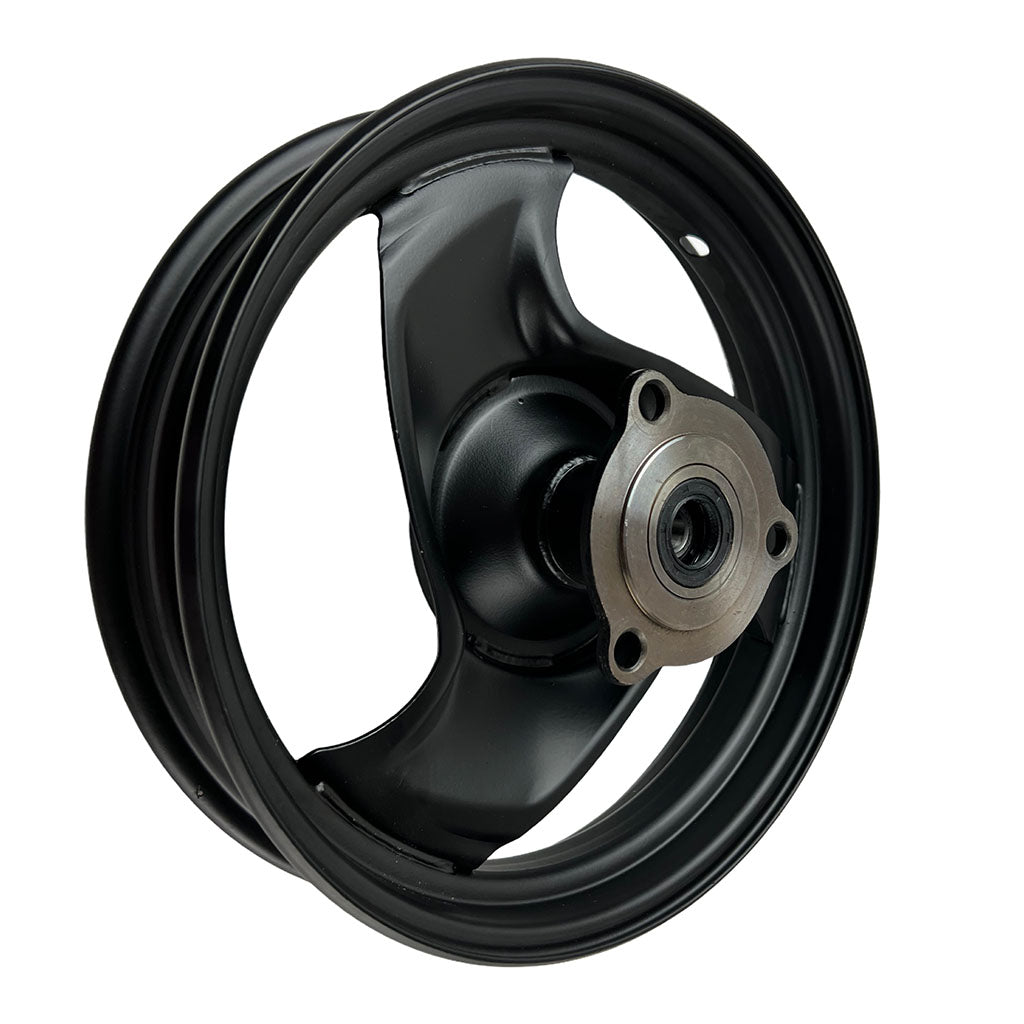

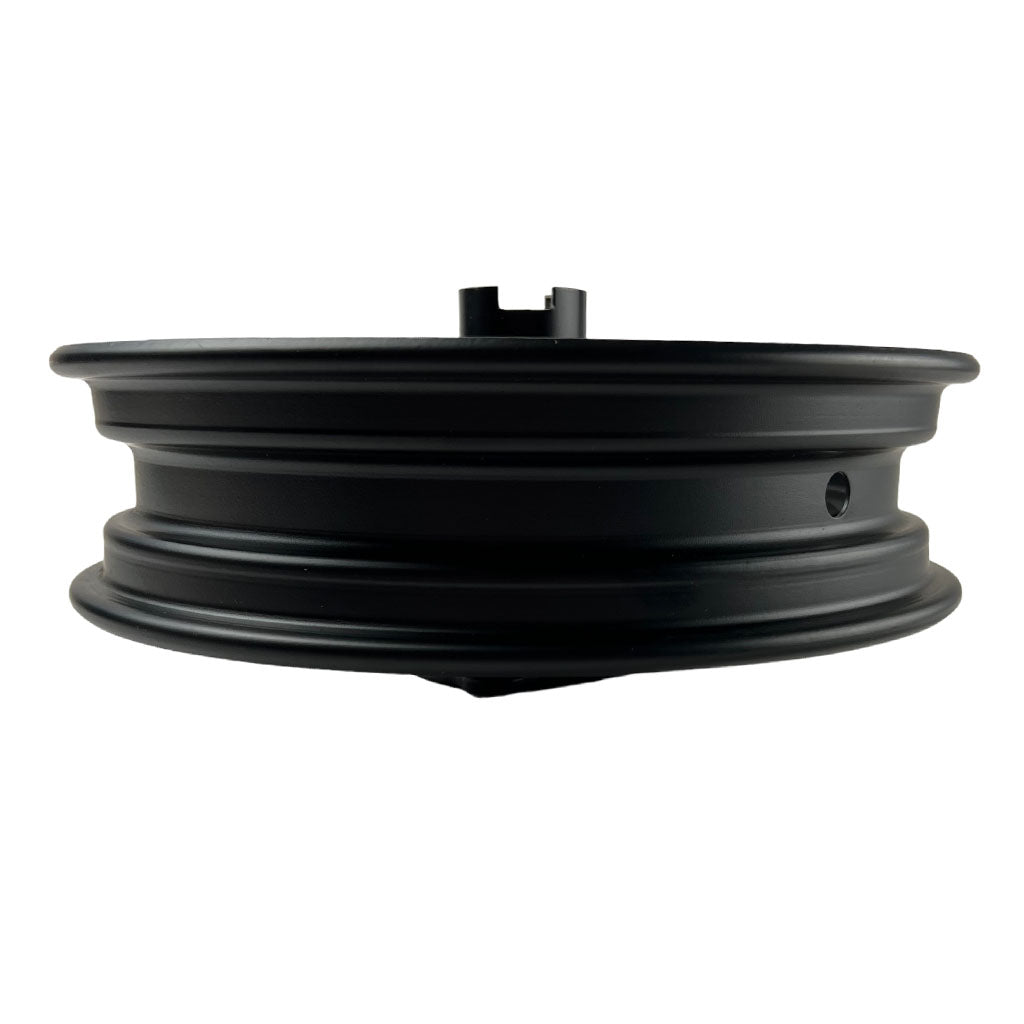

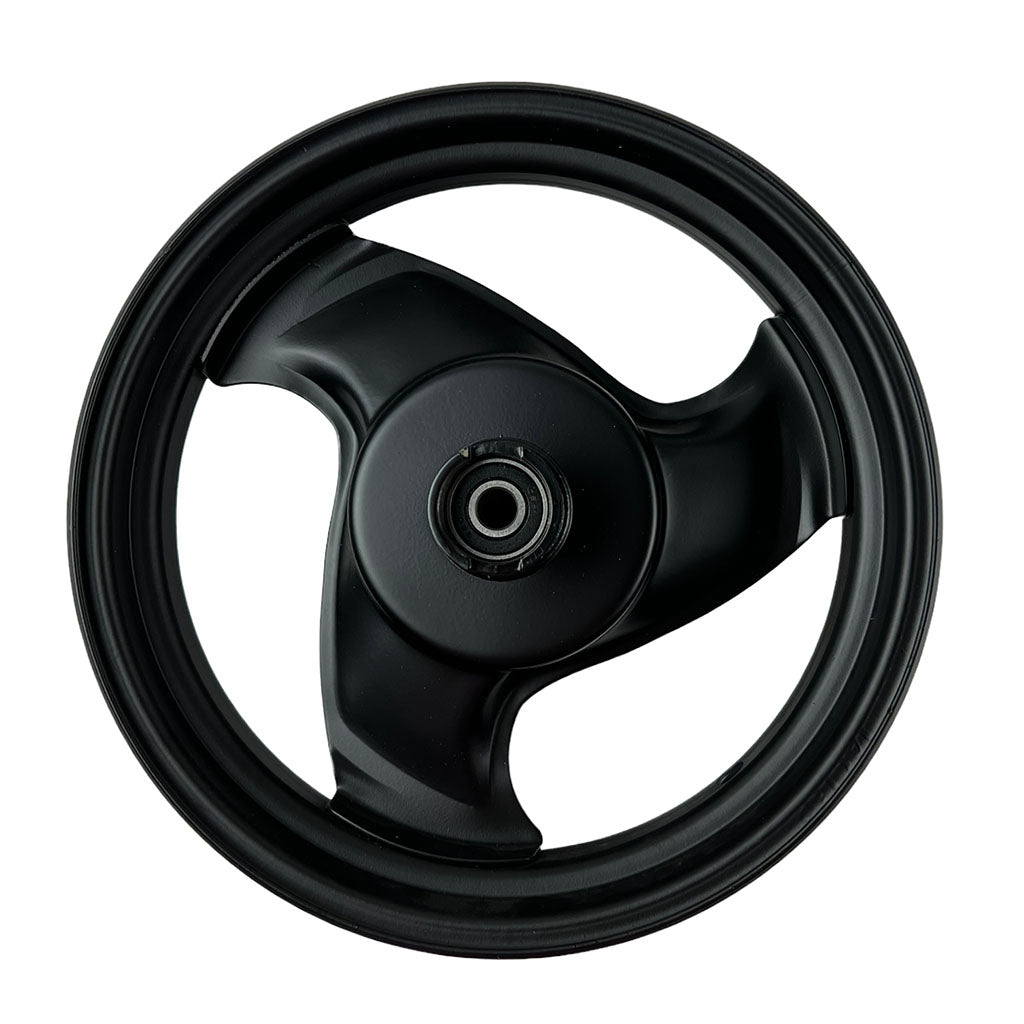

Chinese Front Rim for Scooter - 2.15x10

Rim specs:

Front
Listed as a 2.15 in. x 10.0 in., actual dimensions are 2.8 in. x 10.75 in.
Uses tire size 3.00-10
3-Bolt holes for rotor are 70mm (2.76 in) center-to-center apart
Right side shaft extends out 1.75 inches with two notches
6201RS Bearing - inner diameter is 12mm
20x32x5 seal
Black

Tao Tao says this fits the new VIP 50. It may also fit other 50cc scooters.

Shipping details:

Do you need your wheel fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
