One Way Starter Clutch Sprag Gear for Linhai 250cc 260cc 300cc
Version 8

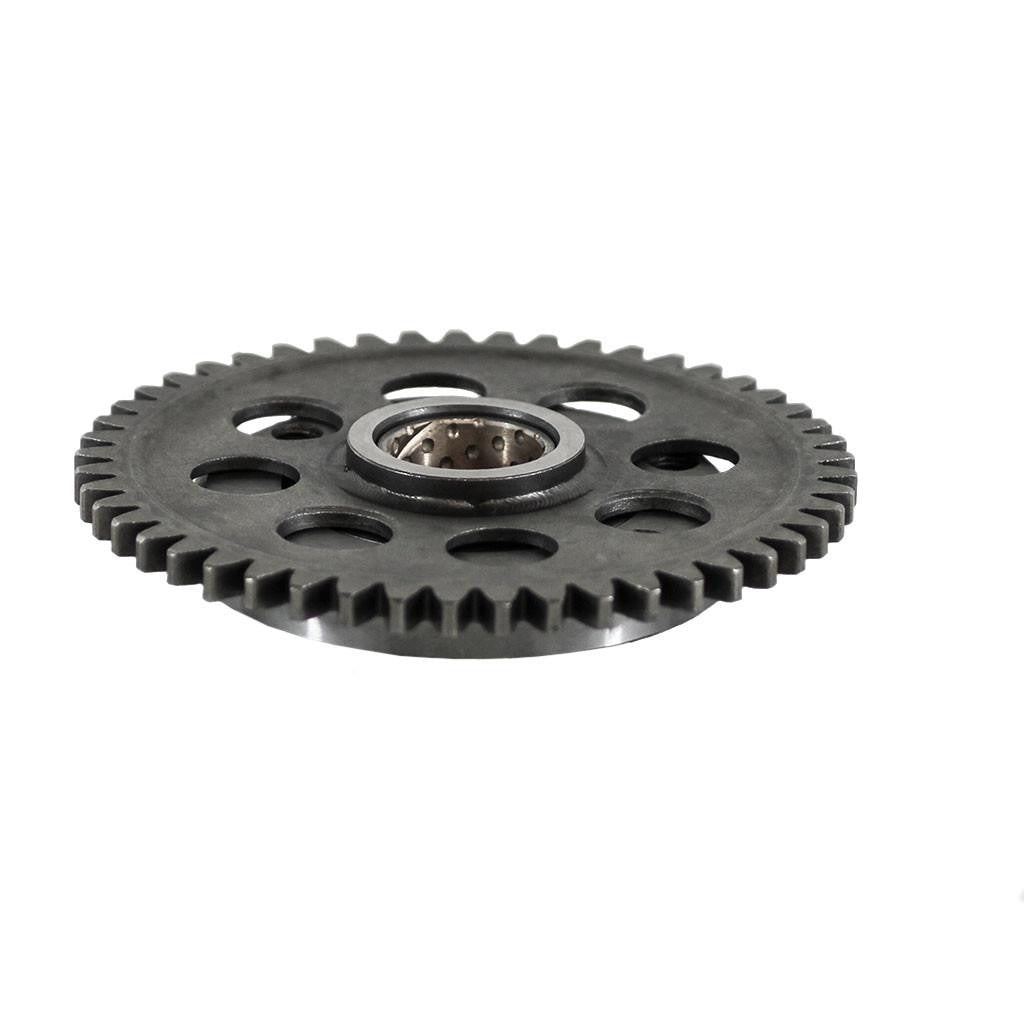

One way starter clutch sprag gear assembly for VOG 260 motors commonly found in Linhai 250cc, 260cc and 300cc atvs and scooters.

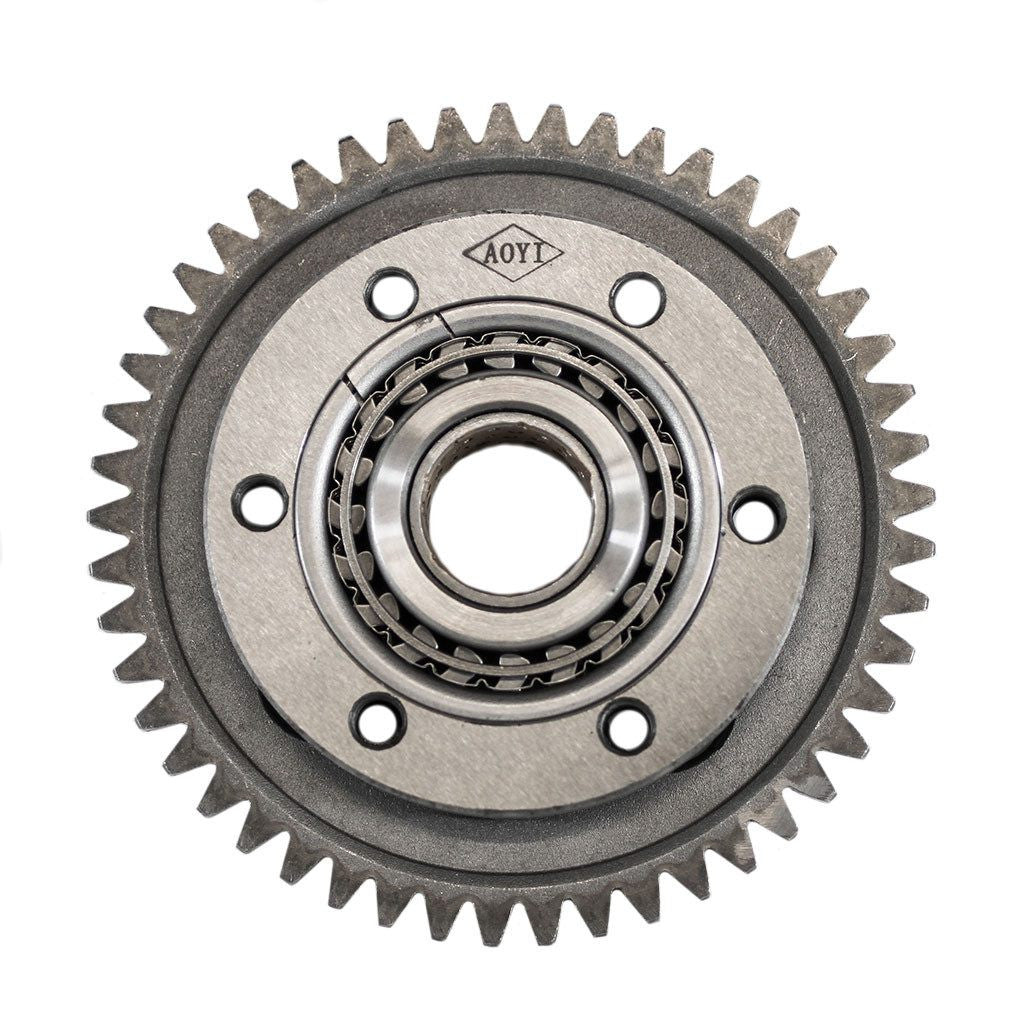

Sprag gear assembly details:
- OD: 91mm (3.58 in)
- Hole distance: 38mm (1.5 in) adjacent holes center-to-center
- Hole distance: 74mm (2.9 in) opposite holes center-to-center
- Thread size: M8*1.25
- 20 sprags/pawls

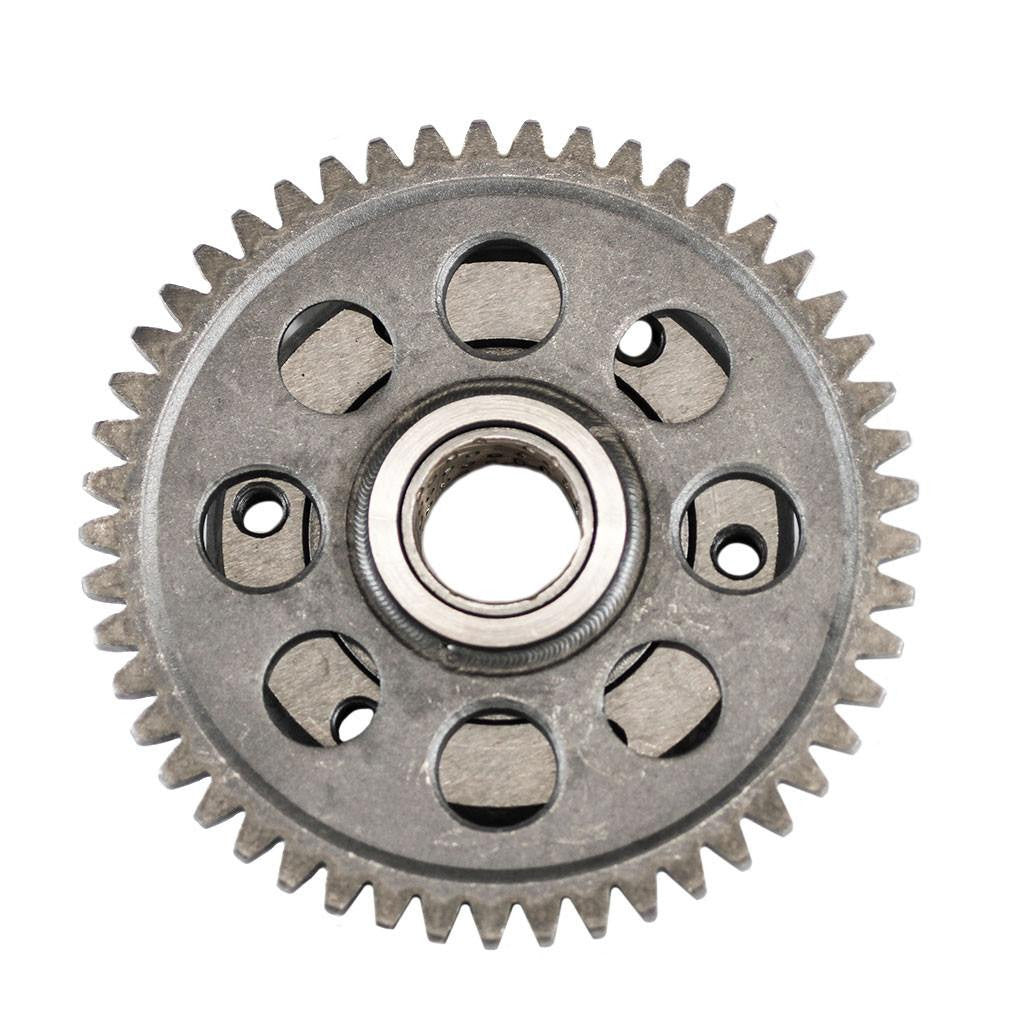

Driven gear
- ID: 25mm (1.0 in)
- OD: 129mm (5.07 in)
- 49 tooth gear
Known to fit American Sportworks 260cc, 300cc ATVs, Aprilia Leonardo 250, Aprilia Leonardo 300, Benelli Velvet 250, CF Moto V3/V5, Diamo Turista, Italjet Jupiter 250, JCL, VOG 260, Linhai Aeolus, Linhai Bighorn 260cc 300cc 400cc ATVs, Linhai Big Daddy 260cc ATV, Linhai Tank 260, Manco Talon 260cc, 300cc ATVs, Tank Touring 250DE, Malaguti Madison 250, Malaguti Password 250, MBK Kilibre 300, MBK Skyliner 250, Renault Kouranos 250, Roketa MC-54 250B, Xingyue VOG 260, Yamaha Majesty 250 and many more.
Shipping details:
Do you need your starter clutch fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
- scooter
- everything
- customer service
- Chinese
- parts
- sprag bearing
- answer
- situation
- defect
- three
United StatesIt works
It started the linhai mainstreet 300 scooter. It's Chinese. No complaints.
United StatesGreat site to find parts
Everything went well, as always.
United StatesTop rated customer service - bravo
This review is more regarding VMC customer service than the product itself. I received a Starter One Way Drive Clutch Gear Assembly which consists of three distinct parts: the drive gear, the overrun clutch "wheel", and the sprag clutch / bearing. It arrived swiftly, before the estimated arrival date. I installed it all the next day, and the scooter started right up. Not long after, however, it stopped running and exhibited symptoms of a failed sprag clutch bearing. Disassembling the parts, I found the sprag bearing had failed due an easily-missed defect in the cage housing. I emailed VMC explaining the situation and asked if just a new bearing could be provided. Without hesitation, the answer was "yes" with an unnecessary apology for my inconvenience. The new part arrived a couple days later, is installed, and working great. Kudos for customer satisfaction being a priority!
