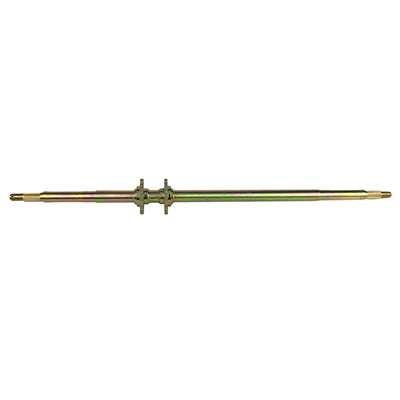

Rear Axle - 41.5 Inches for Tao Tao Arrow, Targa Go-Kart

Rear Axle for Tao Tao Arrow 150 200 and Targa 150 200 Go-Karts

These axles are model specific.  DO NOT ORDER if your make and model are not listed.  There is a 50% restock fee plus shipping for returned axles.

*Axles are standard shipping only - We can only ship axles to the 48 Contiguous States

Please read carefully!

This axle has 24 splines on each end and fits the 2020 and up Coleman BK200, Tao Tao Arrow and Tao Tao Targa 150 and 200 go-karts.  Prior to 2020 the axles had 23 splines.  Sometime during the 2020 model year, the Chinese factory that made the 23 spline axles closed.  TaoTao reworked the go-kart and started using a 24 spline axle.  If replacing the axle, will you also need two 24 tooth wheel hubs.  Our number is 213-RWH150-2424.

Axle description:

• Overall length: 105.4cm (41.5 in)

• 16mm*1.5 threaded ends
• 24 splines on each end
• Diameter of splines at both ends: 23.7mm (0.936 in)

• Diameter in center of axle 33.03mm (1.30 in)

• Axle has two 4-hole flanges
• Distance between flanges is approximately 52mm (2.0 in)

• Distance from end of axle to flange closest to the end is approximately 13.25 inches

• Ends of axle are drilled for cotter keys
