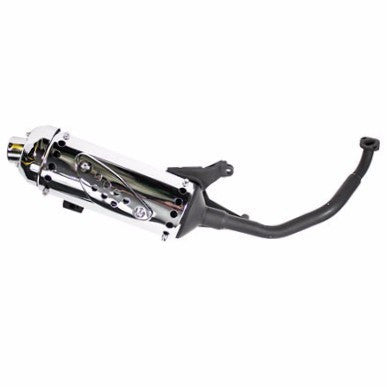

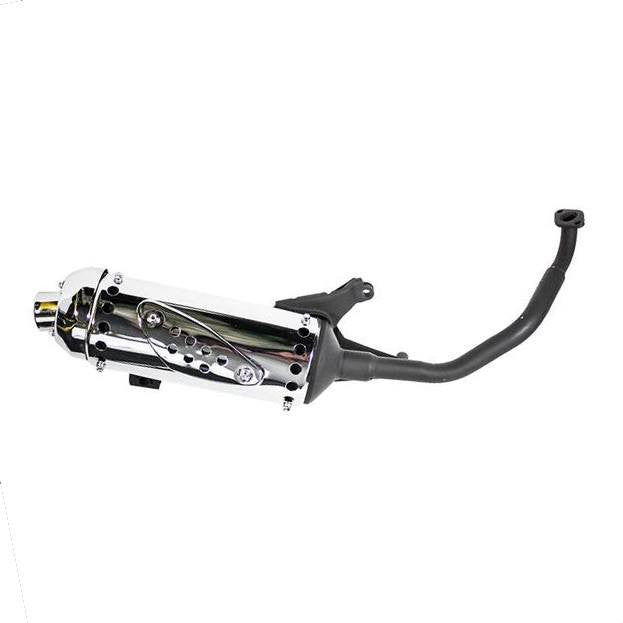

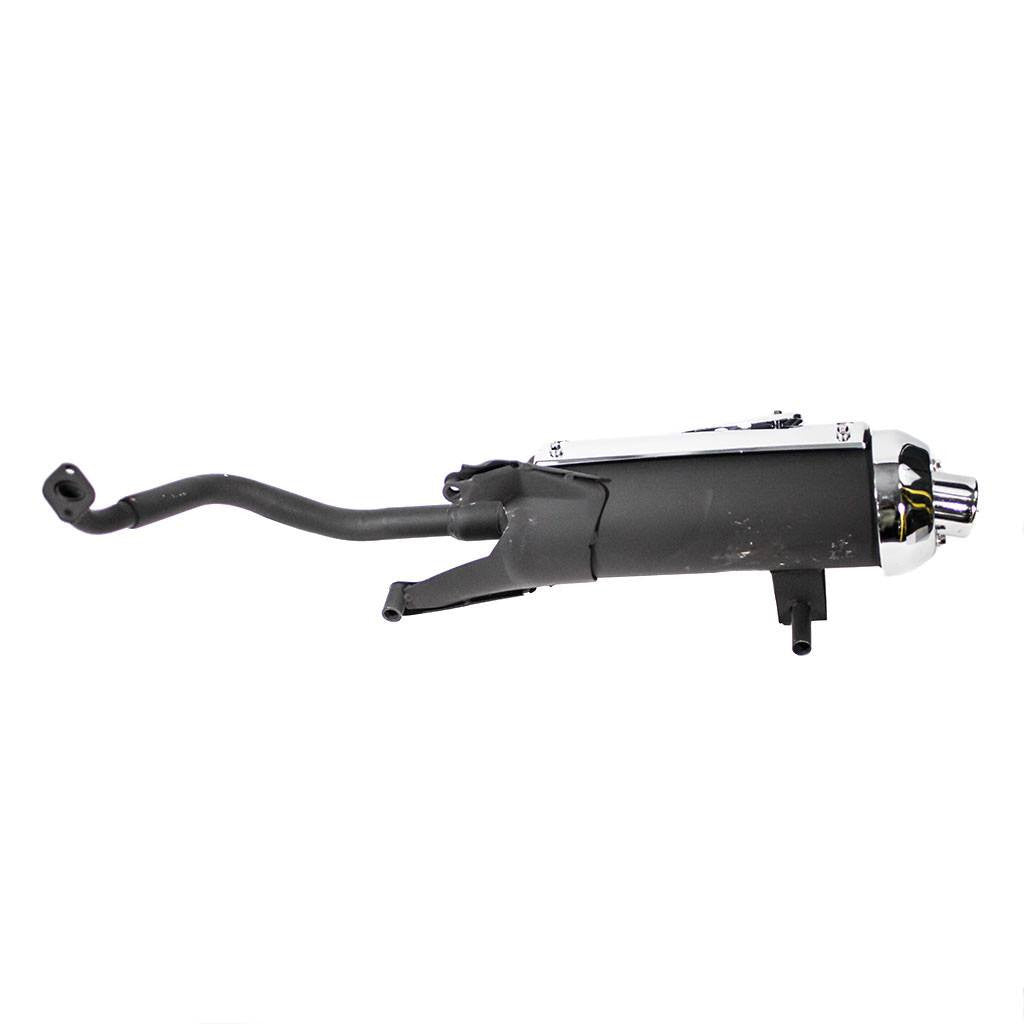

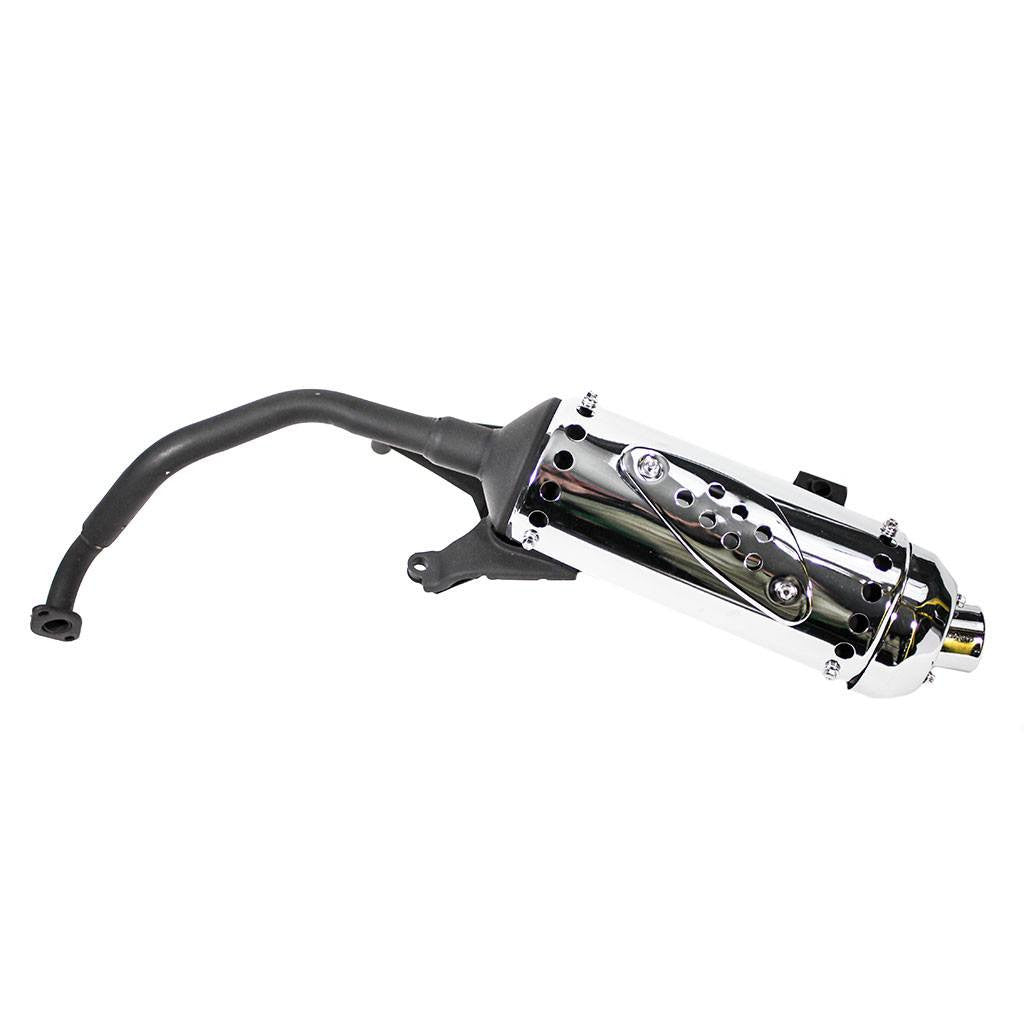

Tao Tao Motor Powermax 150cc PMX150 Scooter ATV Exhaust System
Version 21
This exhaust is known to fit the Tao Tao Powermax 150cc scooter. Please verify the measurements before purchasing this exhaust. May fit other makes and models.
Exhaust details:
- Overall length: 28 inches
- Silencer length: 15.5 inches
- Silencer OD: 10.5cm not including the chrome cover
- Pipe OD: 27.5mm
- Pipe end OD: 16.5mm
- Pipe ID: 17.5mm
- Pipe end ID: 13.75mm
- 3 mounting brackets
- Mounting bracket closest to end of silencer: approximately 6.5 inches from end; 1.75 inch drop from bottom of silencer [mounting hole]
- Mounting bracket on top of silencer: 16.5 inches from end of silencer; 1.5 inch rise from top of silencer (mounting hole)
- Mounting off back of silencer: 18.5 inches from end of silencer; centered with center of silencer (mounting hole)
- 1st bend is 6.0 inches from silencer
- 2nd bend is 4.0 inches from 1st bend and goes towards center of machine.

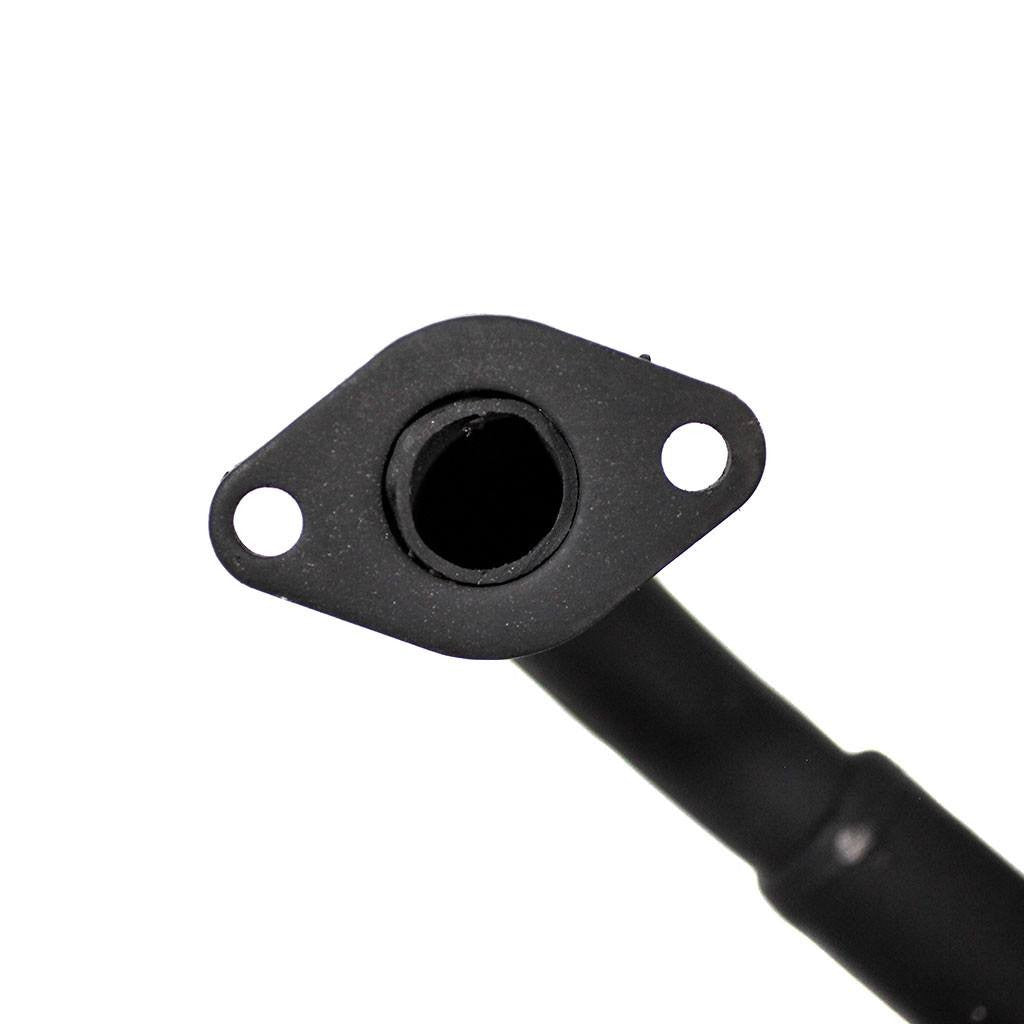

- 3rd bend is 6 inches from 2nd bend and curves upward to mount into cylinder head with slight L shape.
- 20730B2110
- 104191
We don't get any exhaust assemblies that are cosmetically perfect. They all have a few Dings and Scratches on them from their overseas journey. If you need a perfect one, better to buy somewhere else.
Known to fit the Taotao Powermax 150, 150cc Sporty and the 150cc Maxpower.
