Part number:
932-CHC352-94
1

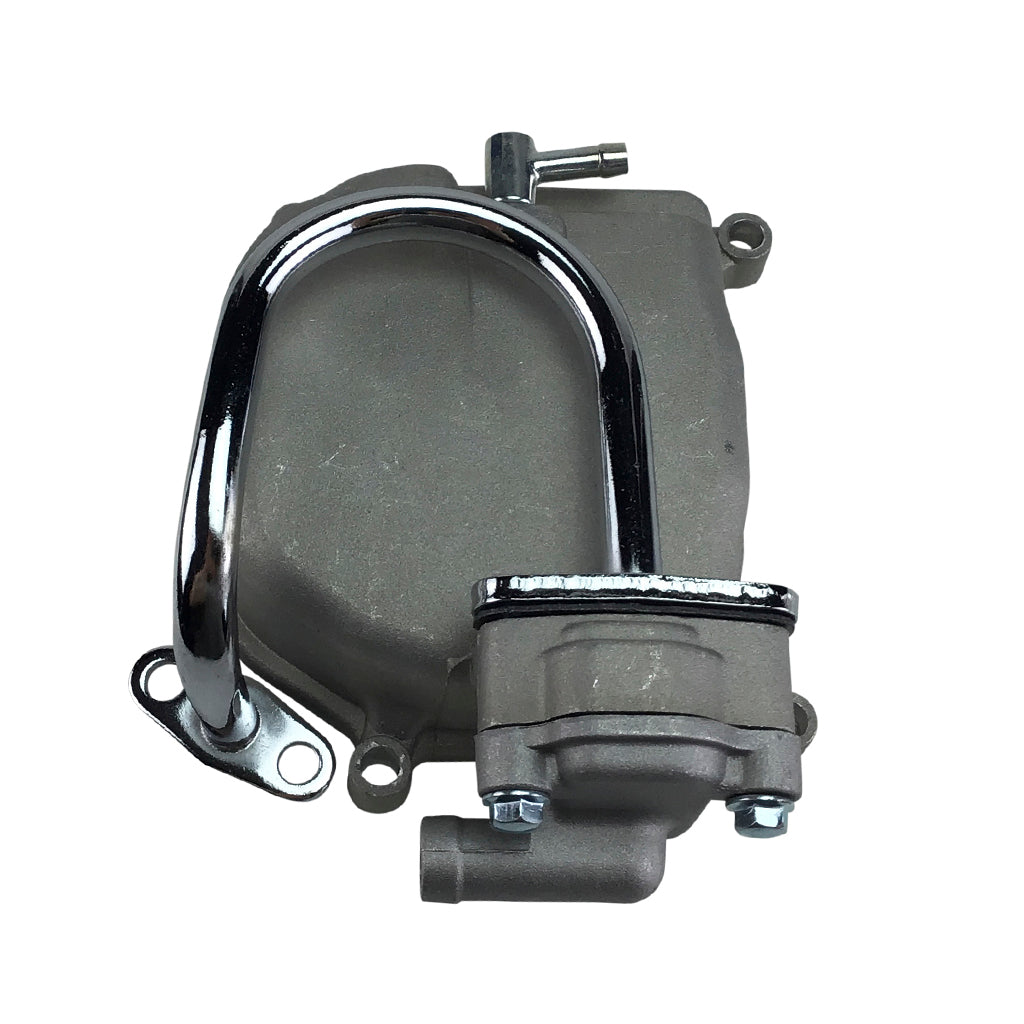

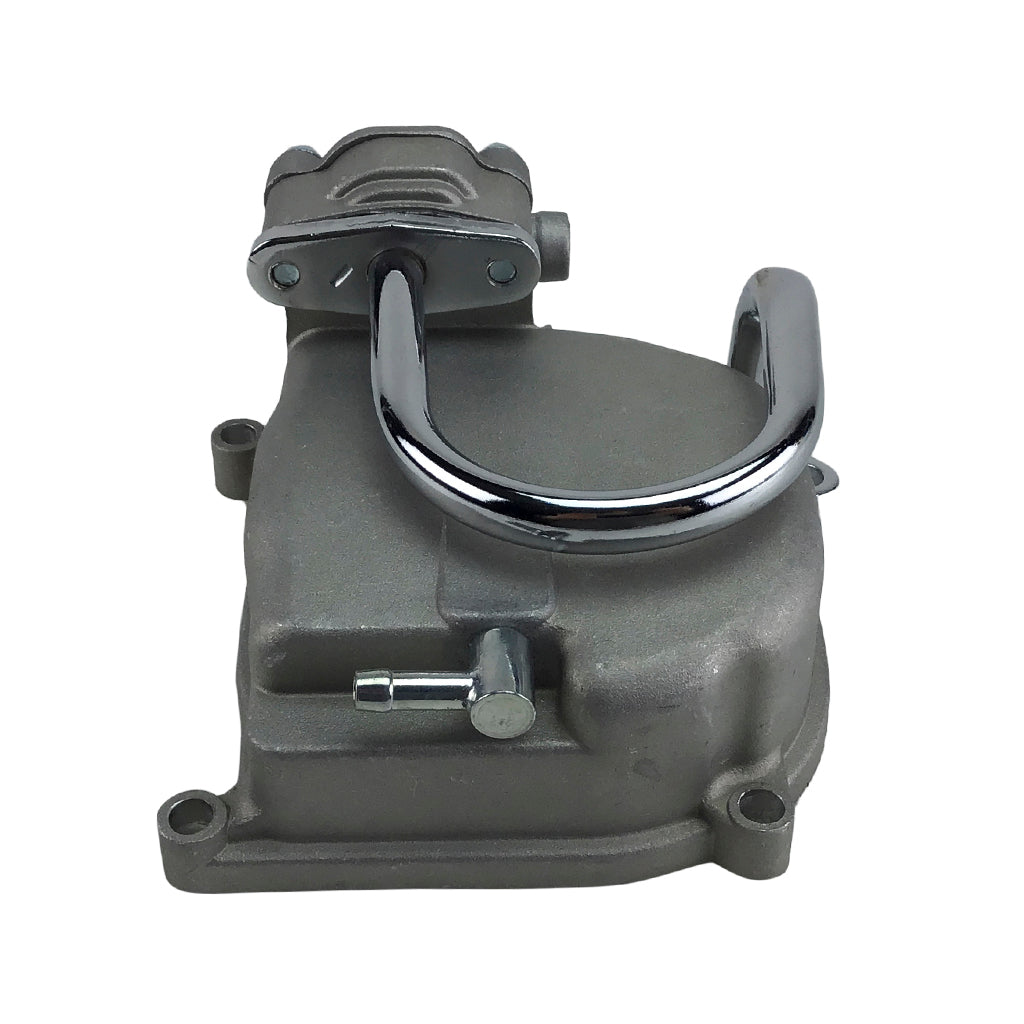

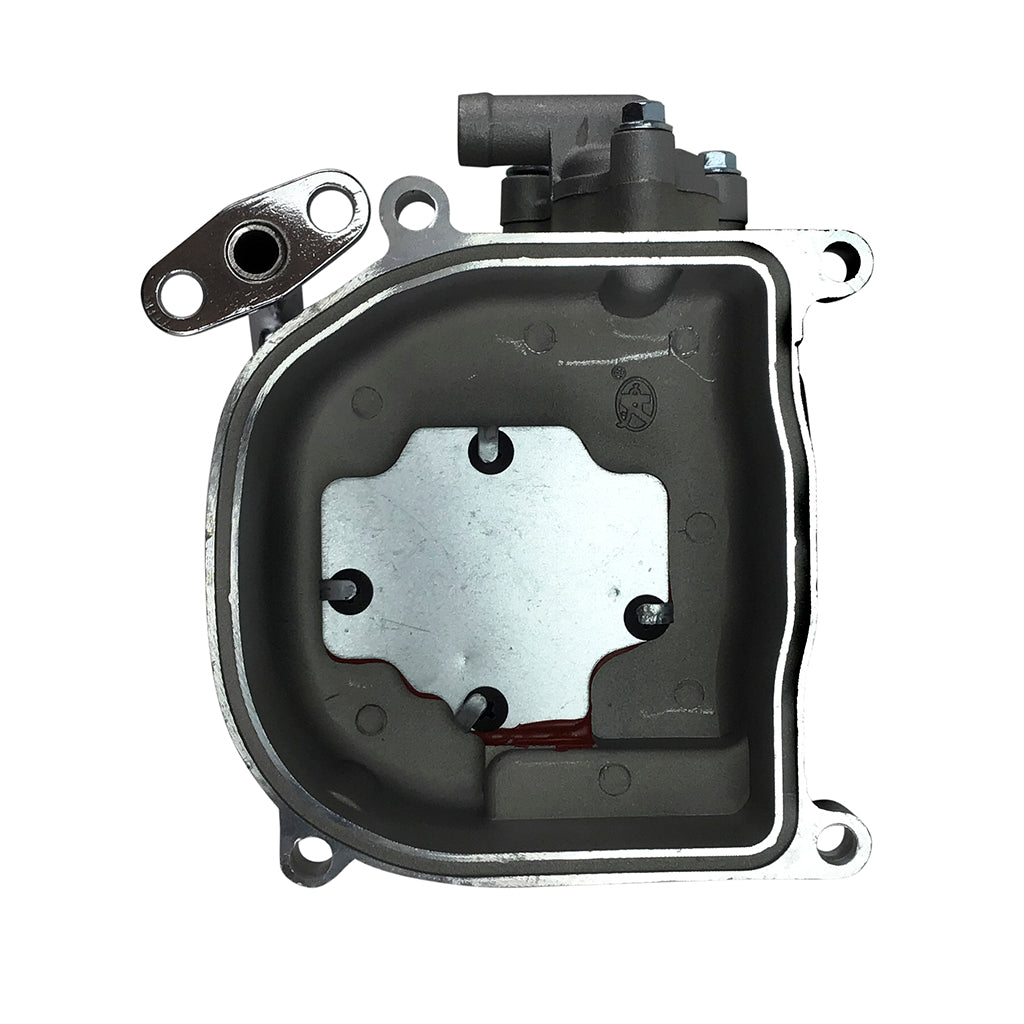

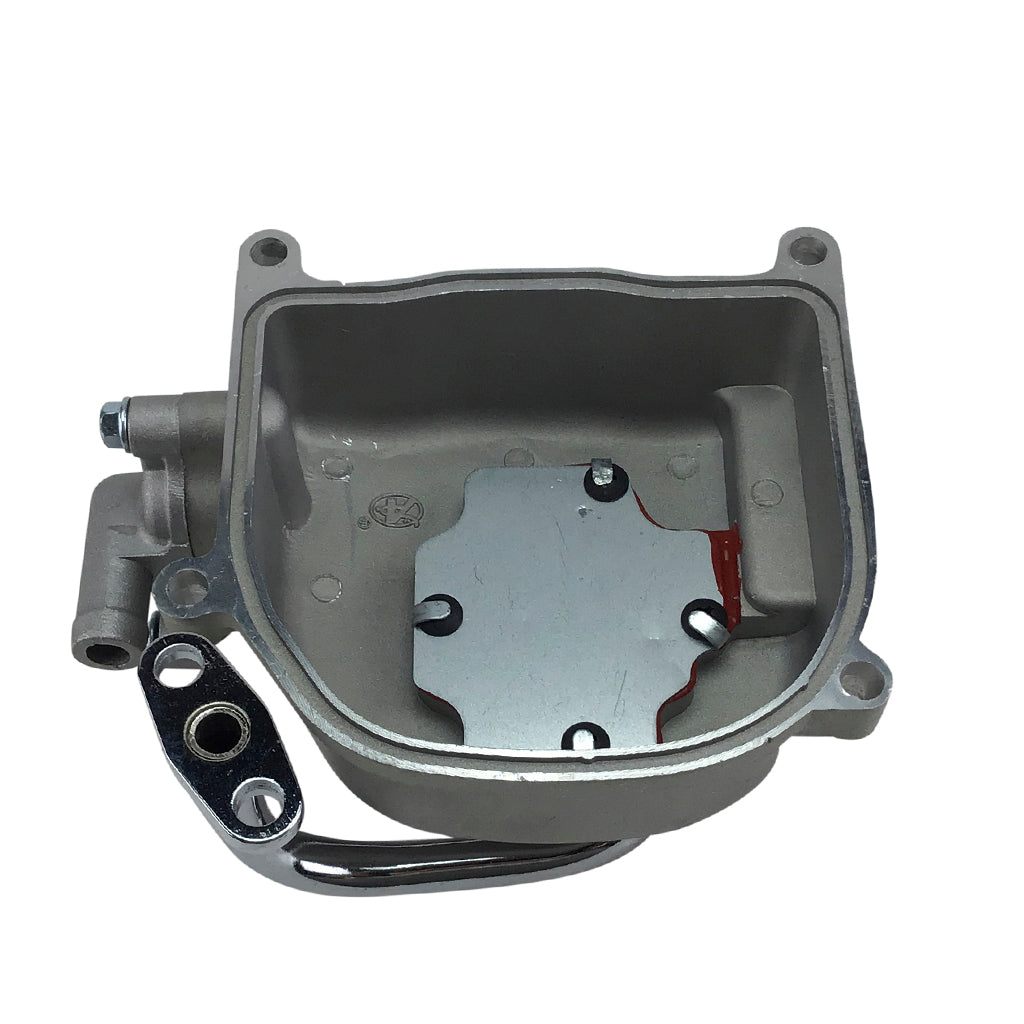

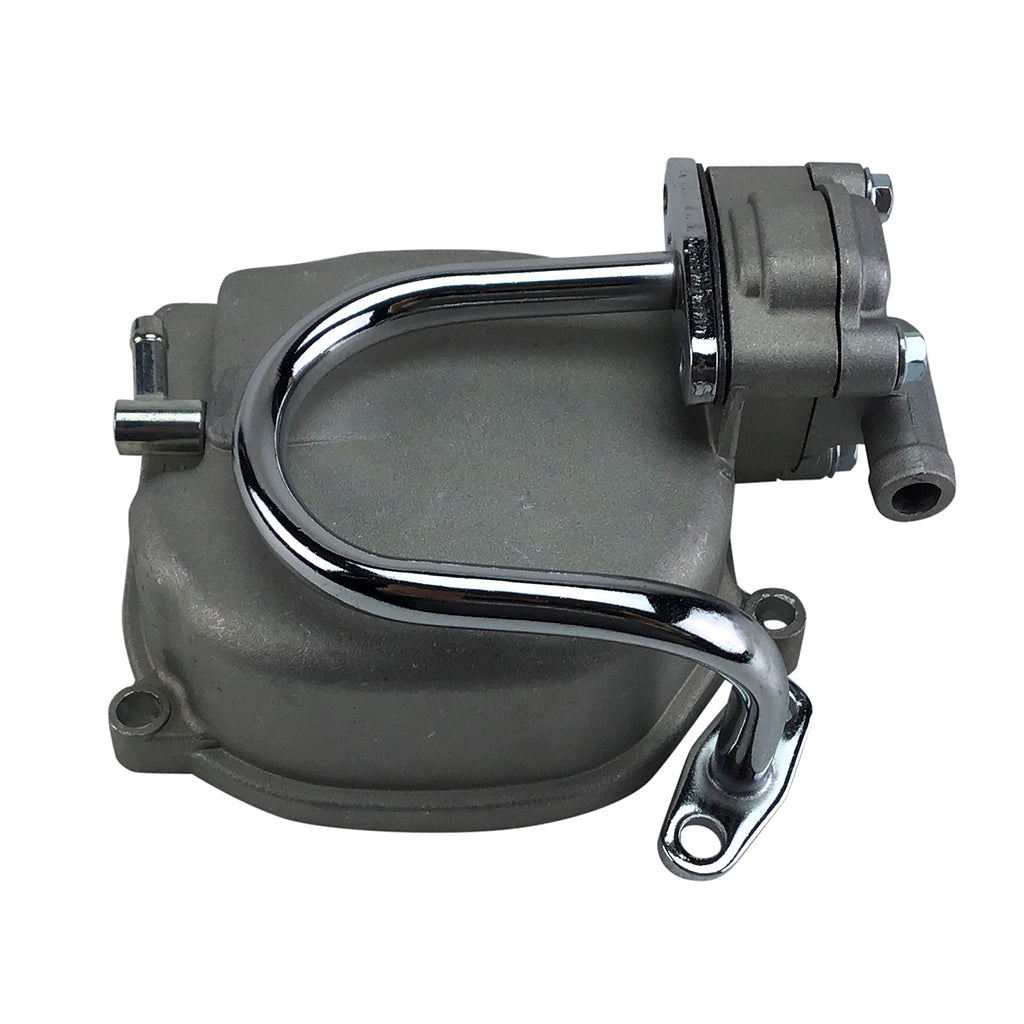

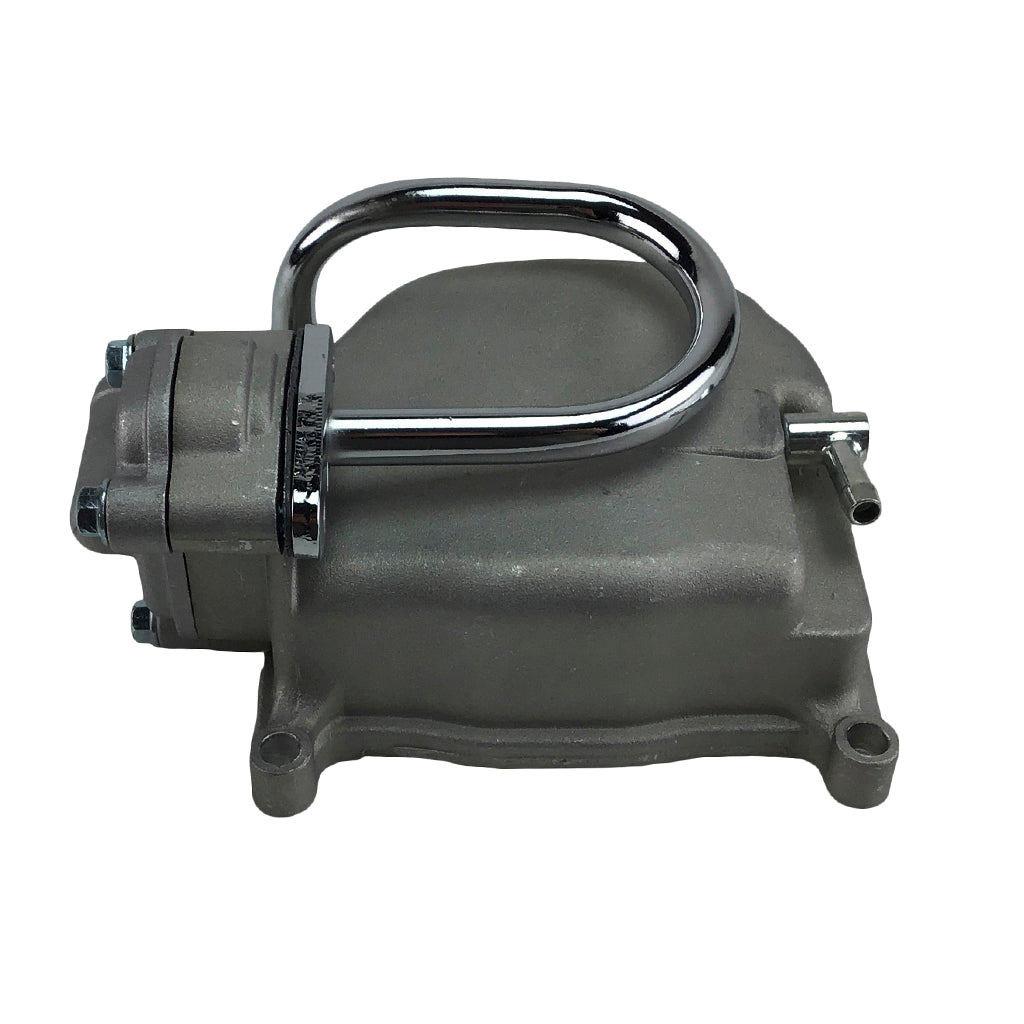

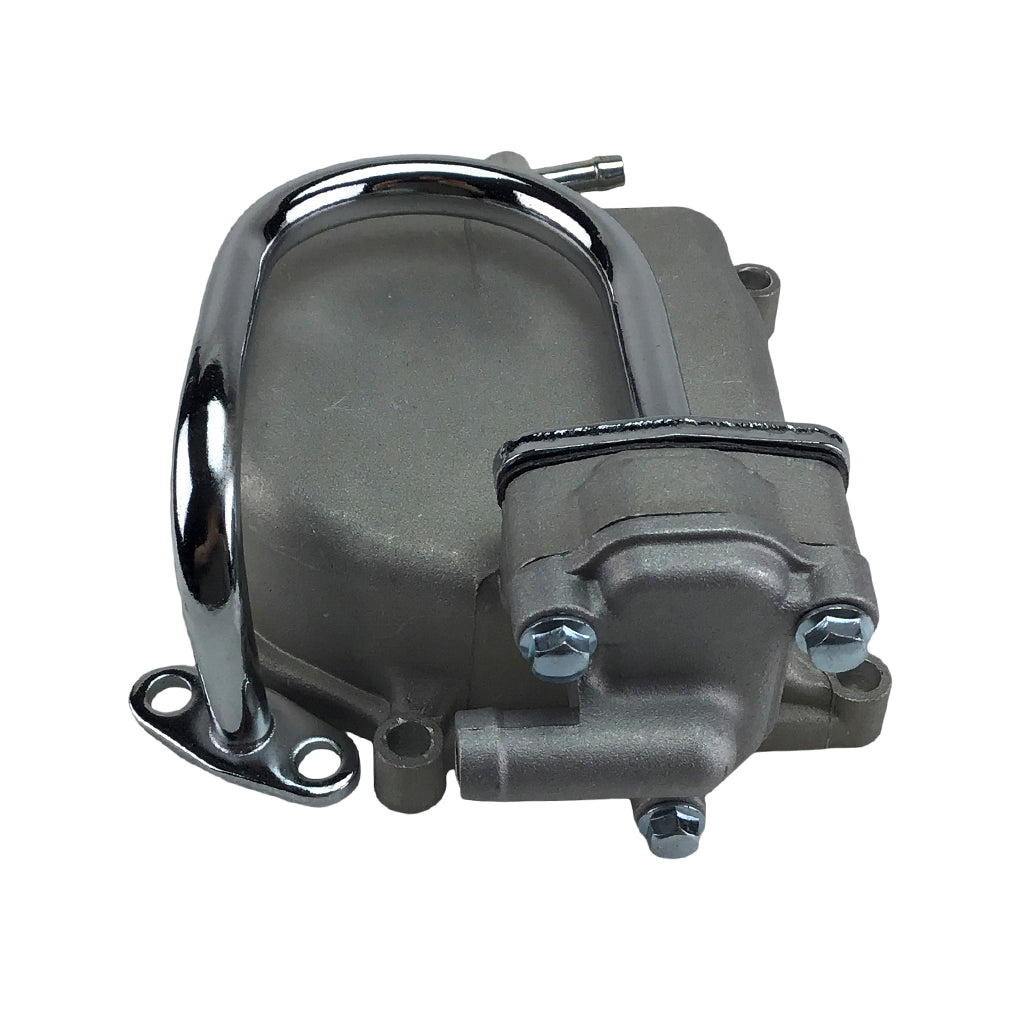

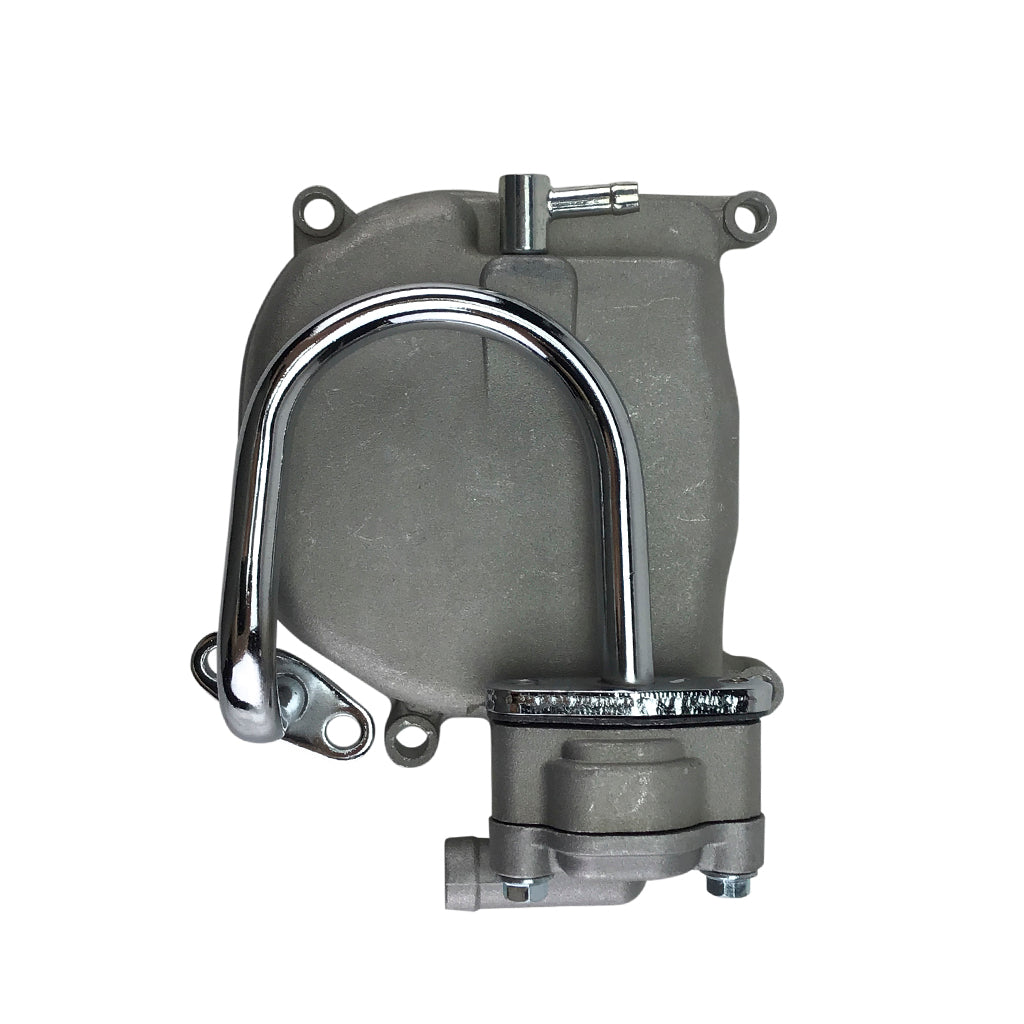

Cylinder Head / Valve Cover for GY6 50cc Scooter Engine
This valve cover is the original equipment cover on the new Tao Tao 50cc scooters. It fits many makes and models, but you still need to compare description and pictures to make sure this will work on your scooter.
Cover details:
- GY6 50cc
- Bolt holes across straight side are 104mm (4.1 in) center-to-center apart
- Width: 149mm (5.86 in)
- Depth: 118mm (4.66 in) doesn't include EGR pipe
- Height: 70mm (2.76 in)
- Small 0.25 inch nipple on side
- Large 0.57 inch nipple on opposite side
- Does not include gasket
Fits Tao Tao Blade 50, Cruiser 50, EVO 50, Jet 50, Magic 50, Milano 50, New Racer 50, New Speedy 50, Pony 50, Speedy 50, Thunder 50, Venus 50, VIP 50 and Zummer 50 scooters.
Fits Tao Tao GY6 50cc Short Case Engine, GY6 50cc Long Case Ext 3 Engine and the GY6 50cc +6 Long Case Engine.
