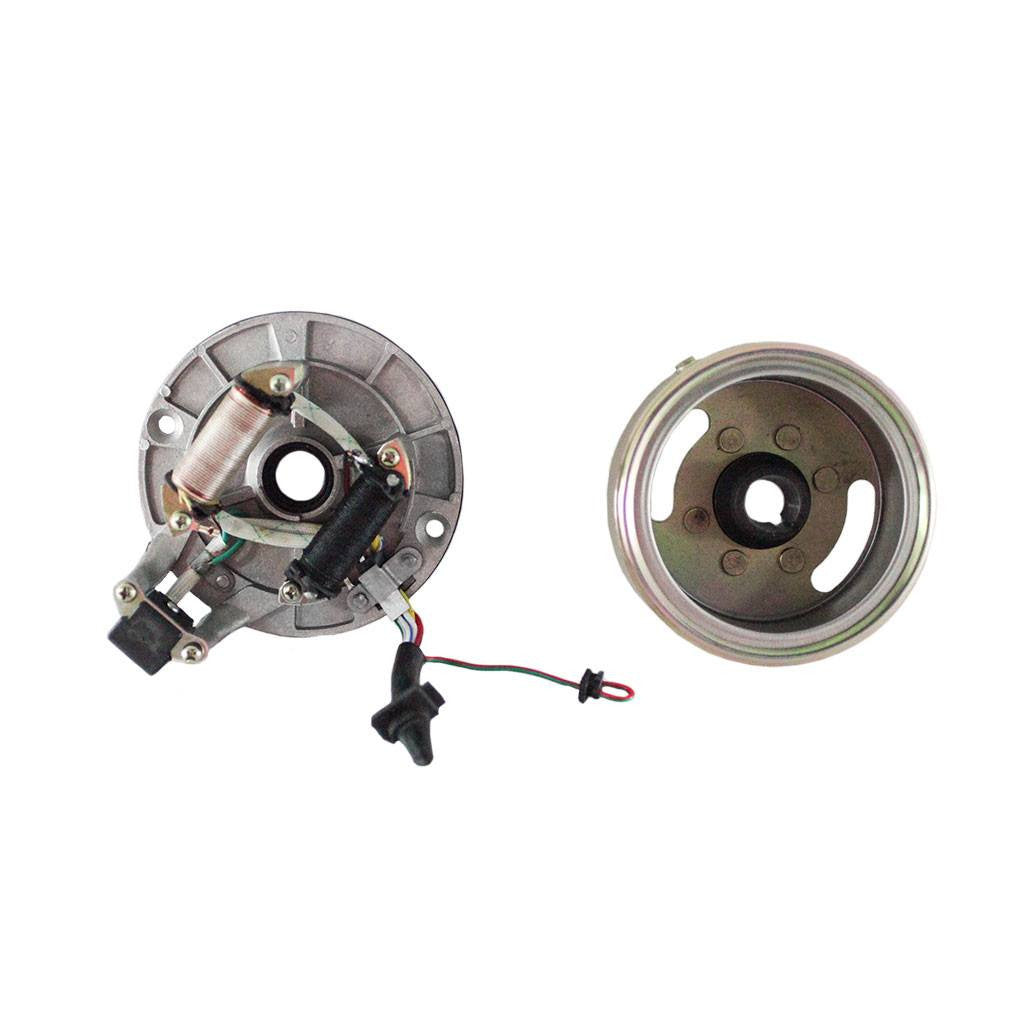

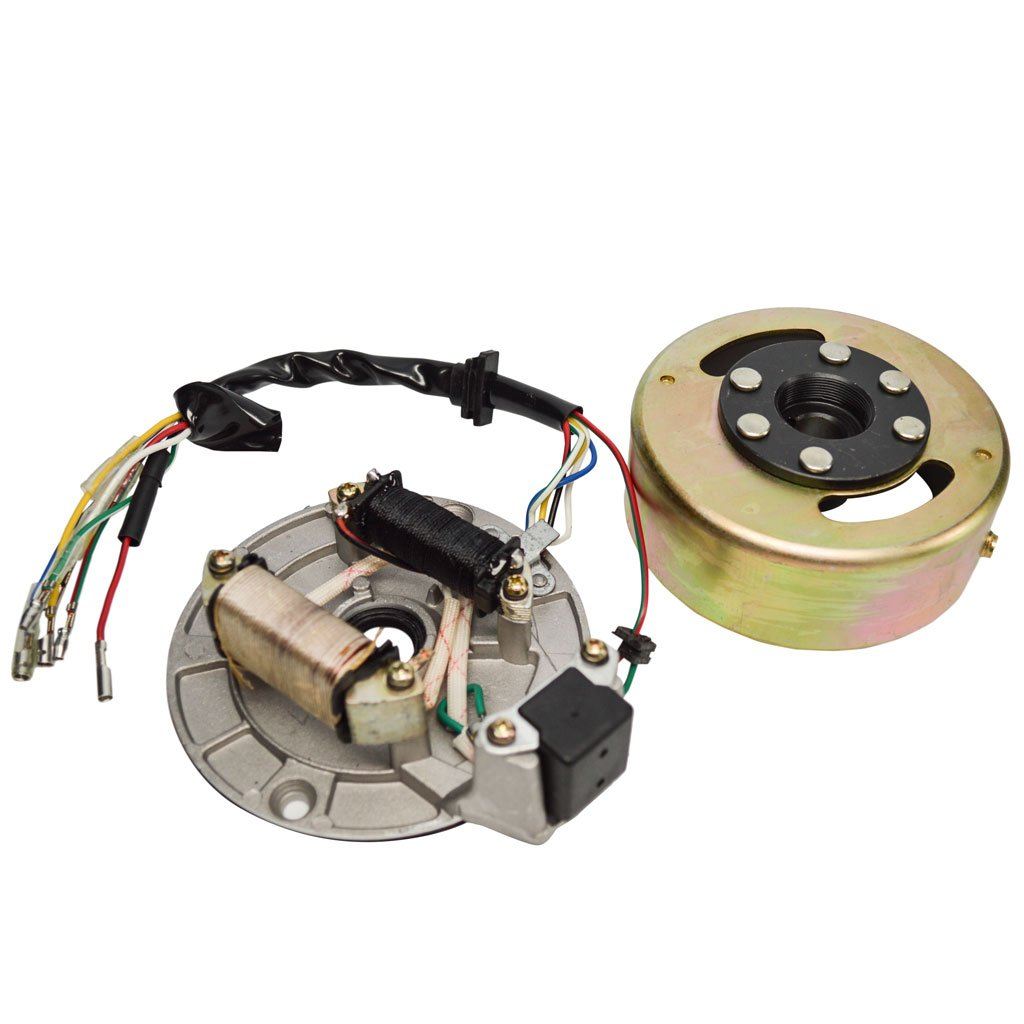

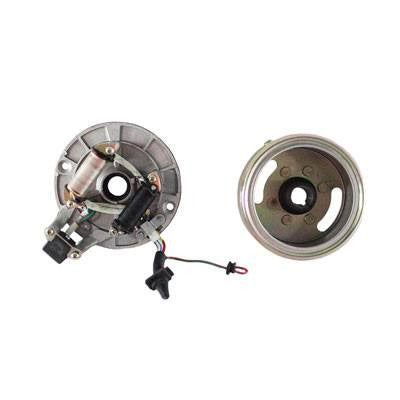

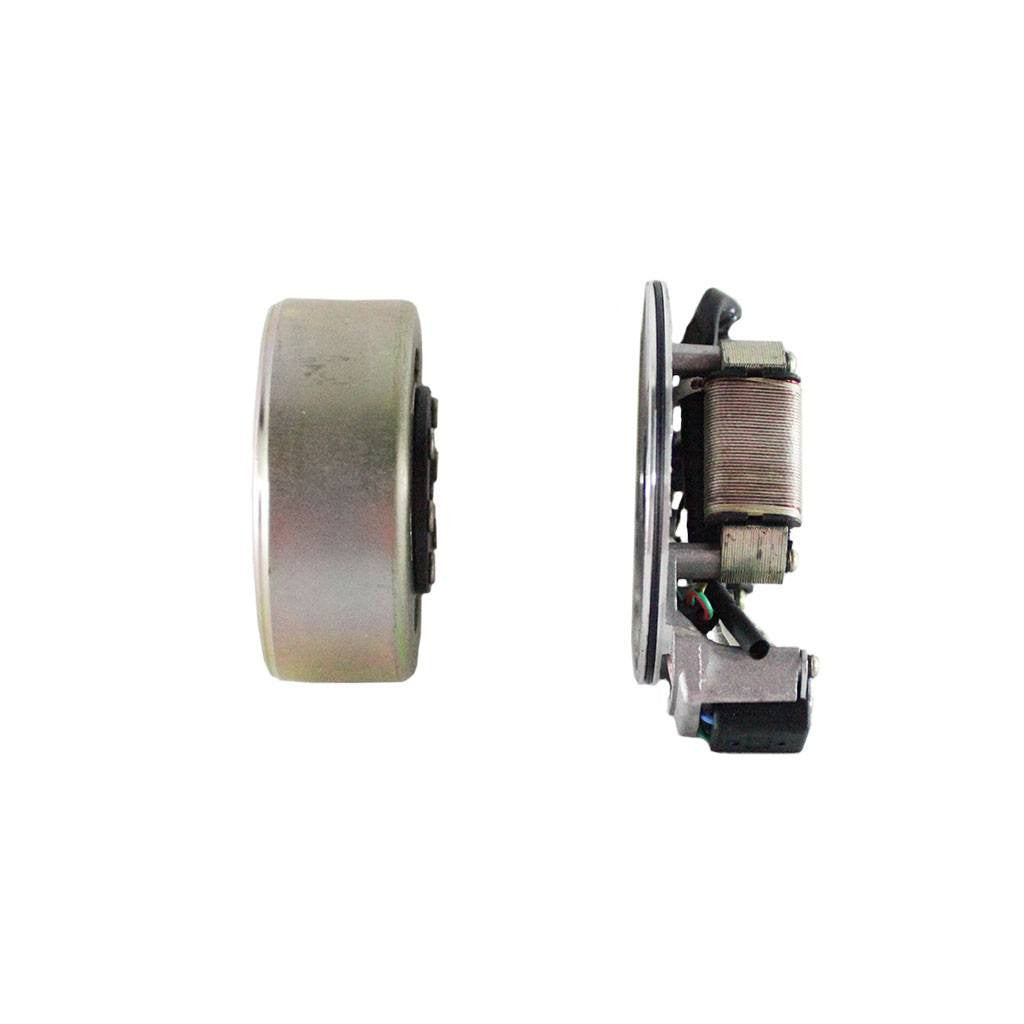

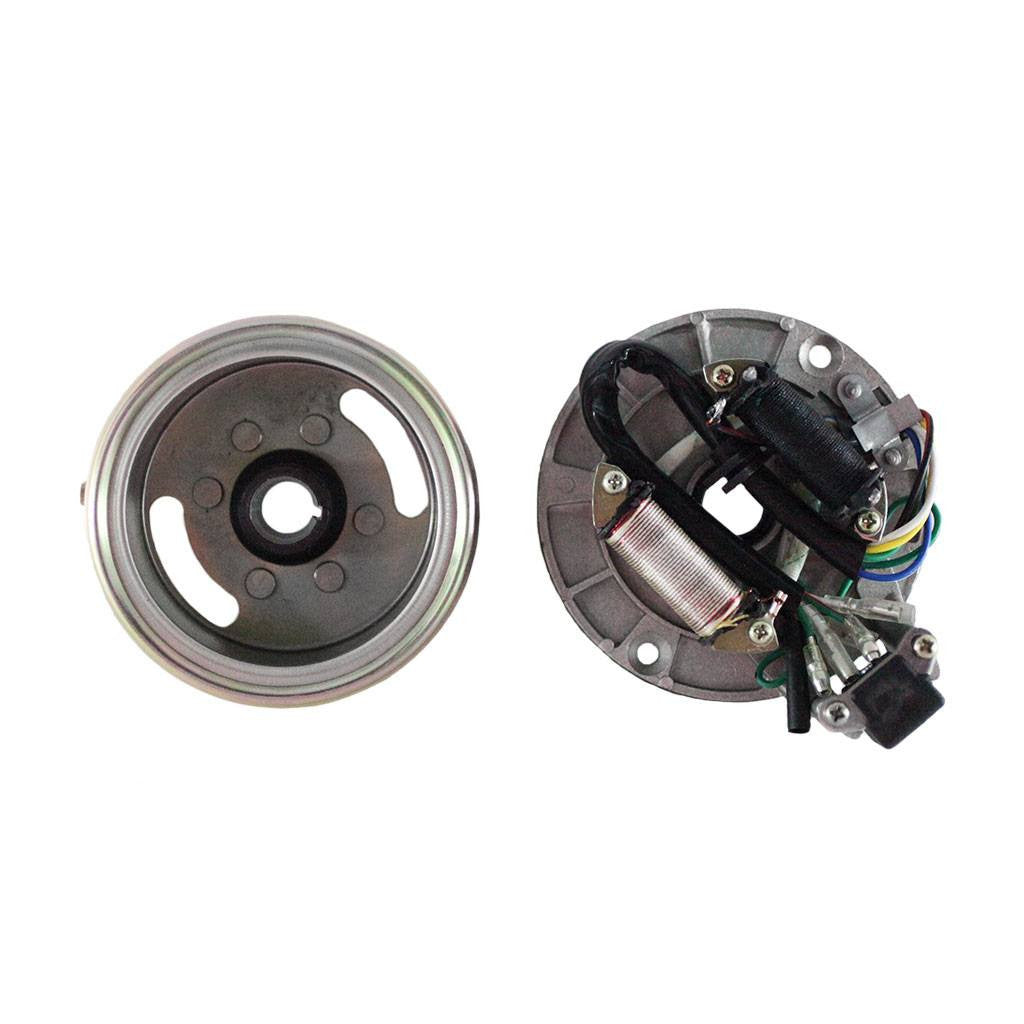

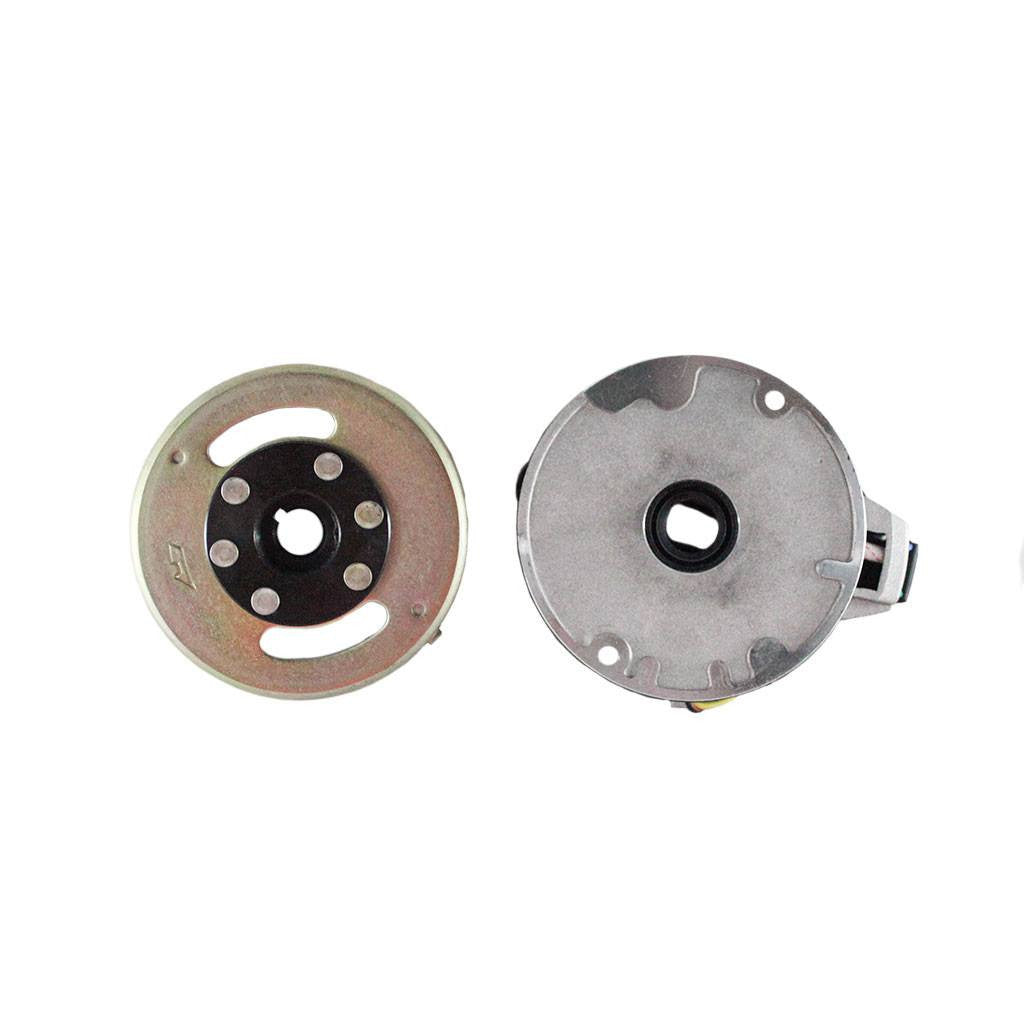

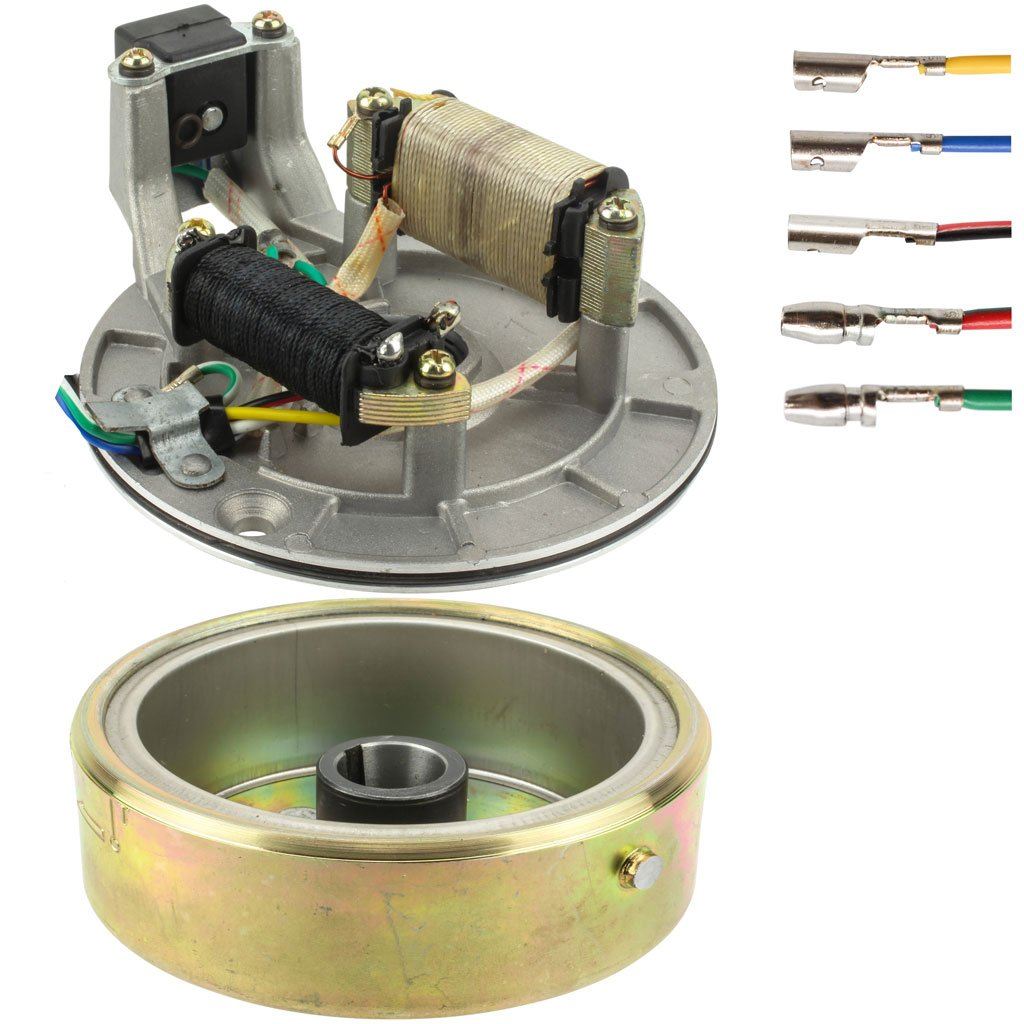

Chinese Stator Magneto / Flywheel Assy - 2 Coil - 50cc thru 125cc
This Chinese stator magneto / flywheel assembly is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes and Go Karts.

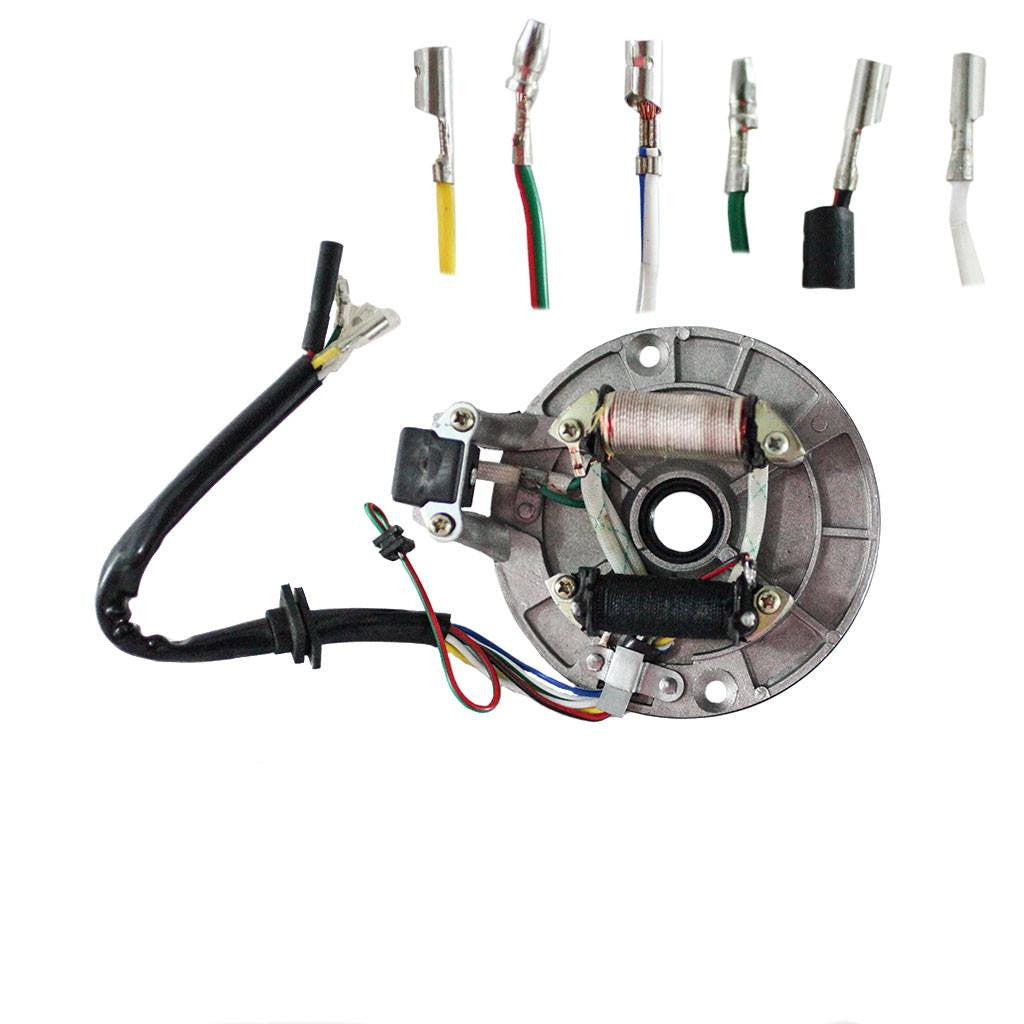

Stator description:
- 2 coil

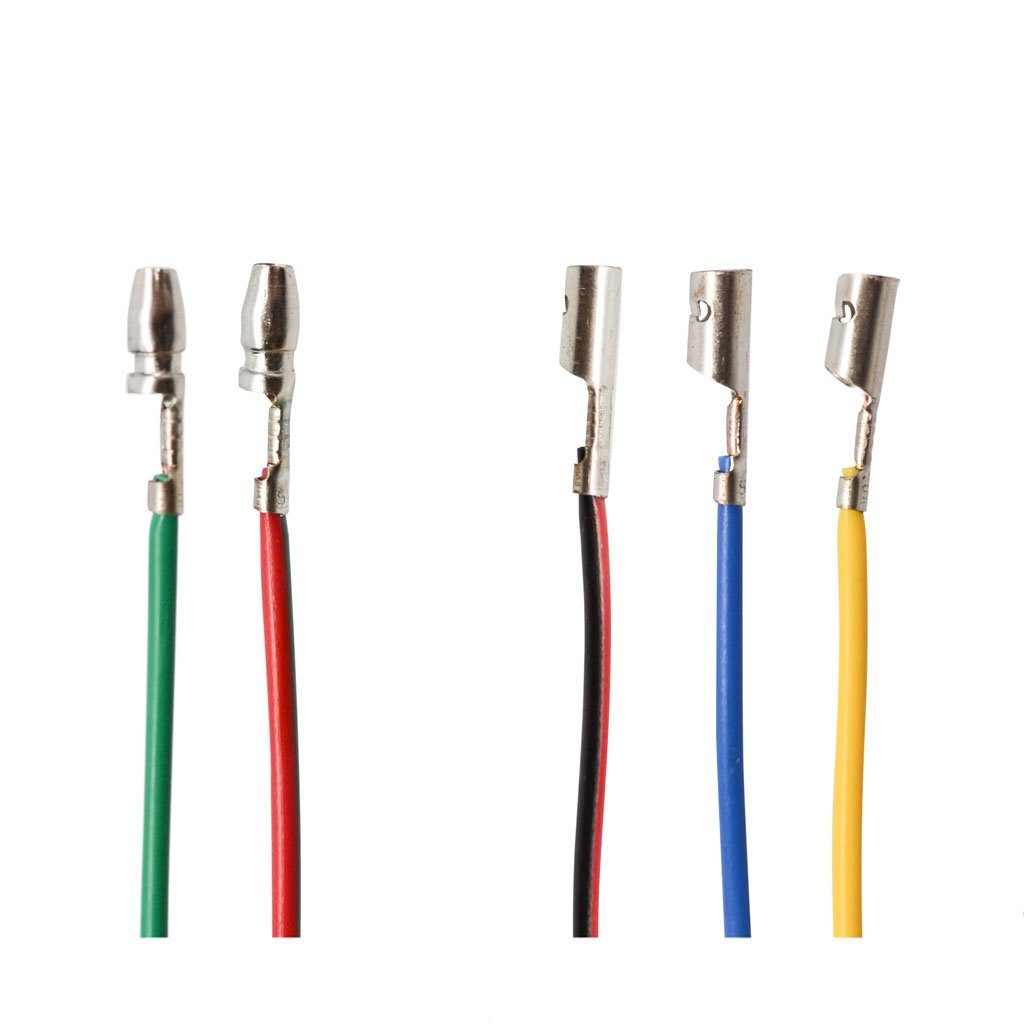

- 6 pigtail wires: 10.0 inch overall wire length
- 1 Short wire coming back out of harness... see pictures.
- 2 bolt mounting
- Pickup trigger
- Mounting measurement: center-to-center 10cm (3.98 in)
- Compatible with 110cc 4 stroke

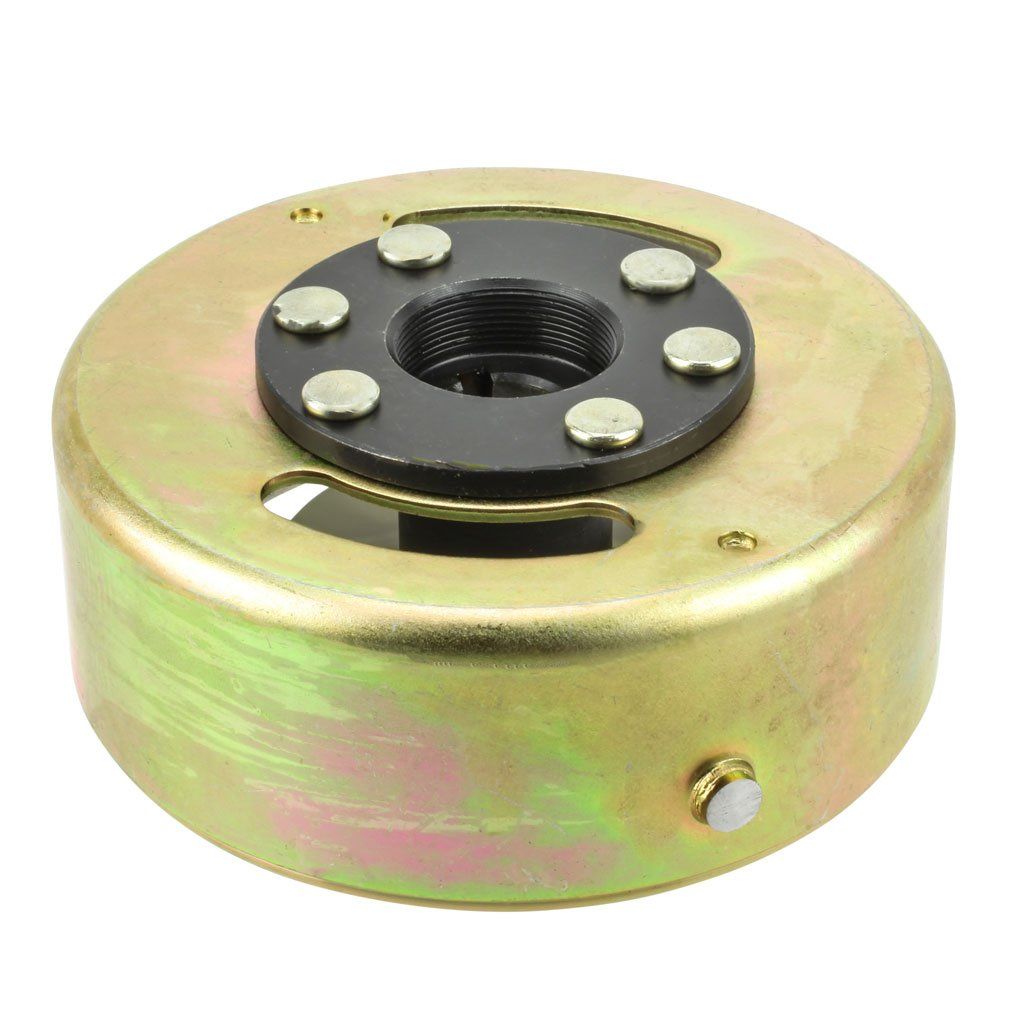

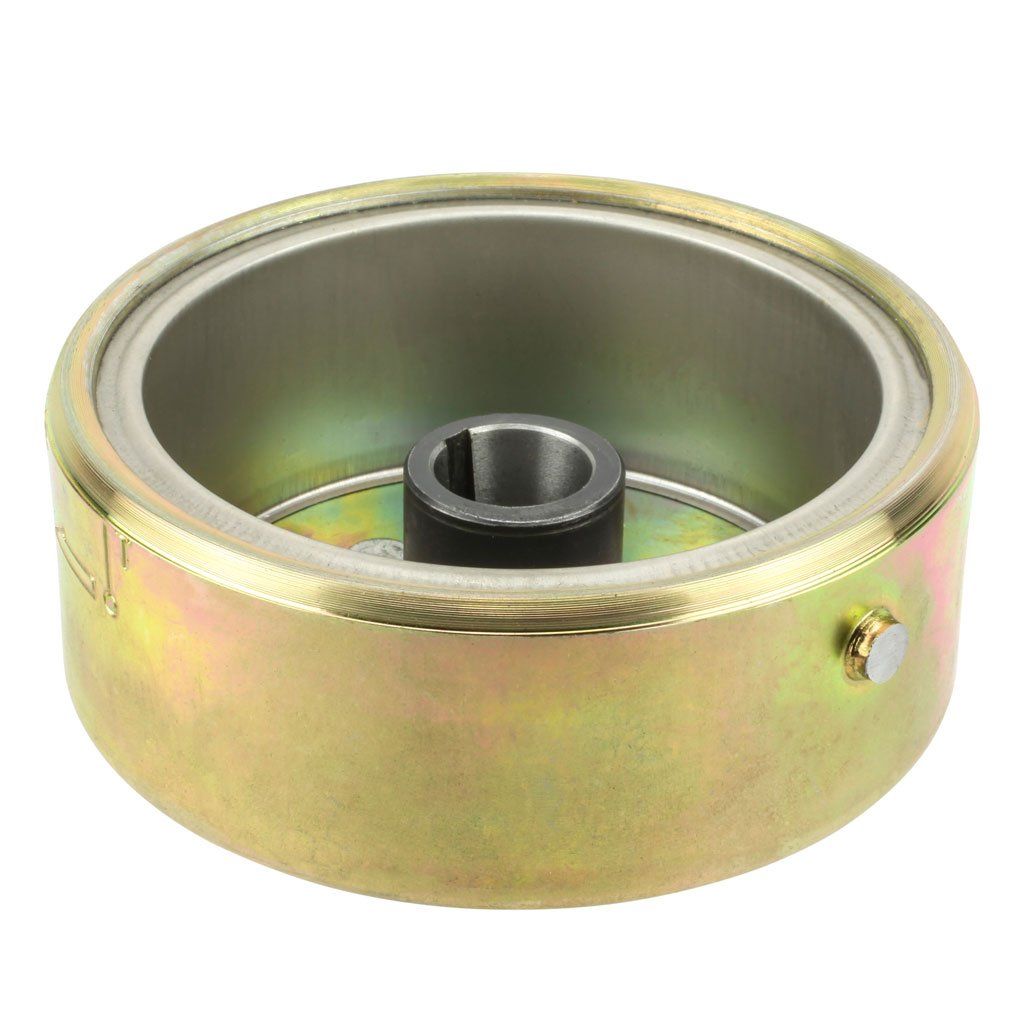

Flywheel description:
- Outside height of brass: 42mm (1.65 in)
- Overall OD including tab: 112.2mm (4.4 in)
- Overall OD not including tab: 109mm (4.32 in)
- ID of magnetic area: 86.35mm (3.4 in)
- OD of inside hole: 27.7mm (1.09 in)
- ID of inside hole: 18.6mm (0.73 in)
- Cutout flywheel key notch.
- OD of starter clutch: 79.8mm (3.14 in)
Shipping details:
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
- half
- float
- book
- flywheel
- modifications
- spark
- stator
- holes
- trouble
- measurements
For perfect �
Great item did the job for perfect!
CanadaBike parts
Good delivery thanks so much
United StatesGood solution
I bought this to replace the non-working stator on my Chinese built Flywing 100cc dirt bike after taking lots of measurements and determining that the wiring was a close match as well. It was a direct "fit" but not a direct "bolt on". It reqiured a few minor modifications such as re-drilling the two mounting holes (they were off about a half a hole each) and also grinding the mount for the pick-up coil as there wasn't enough clearance for the flywheel to rotate. There were also extra wires that were not needed but I was able to figure that out as well. Not a big deal and it made spark when I was done assembling it so it's a win in my book! Thanks VMC for having the parts to fix these Chinese mystery bikes!
United StatesPerfect match
Part was exactly what we needed.
United StatesStator Magneto With Matching Flywheel - 2 Coil - 50cc 70cc 90cc 100cc 110cc 125cc Horizontal Engine
Great very fast shipping a good product
