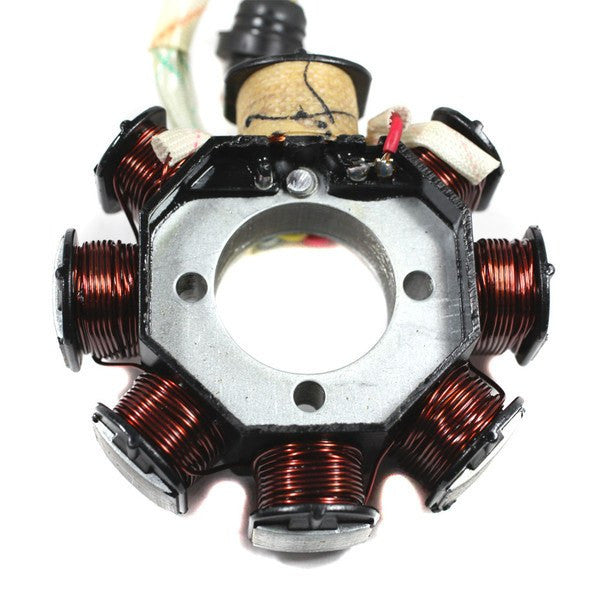

Chinese 8 Coil Stator Magneto for Vertical 250cc Engines.
Version 11
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs and Dirt Bikes. The stator recharges the battery while the machine is in use, like an alternator in a car. This stator fits 200-250cc models with vertical engines.
Stator description:

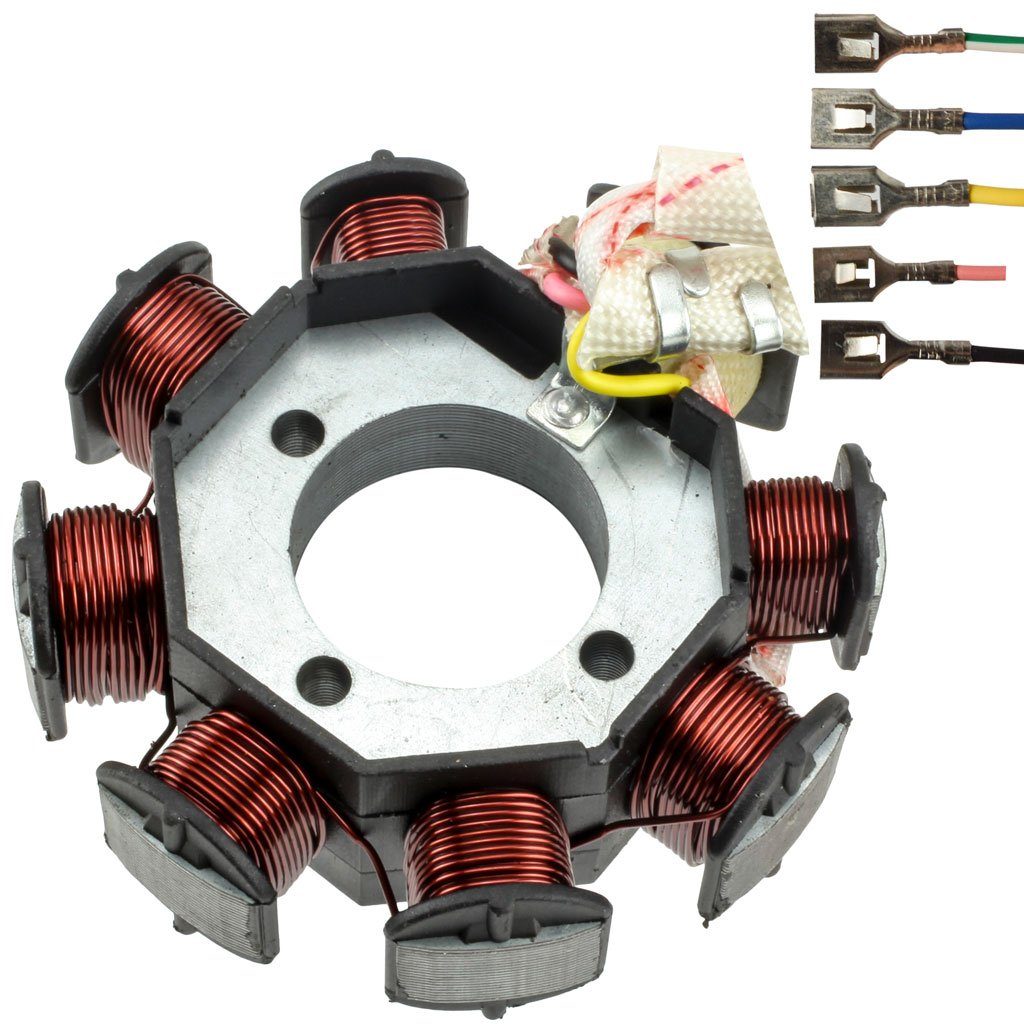

- 8 coil - 1 wrapped

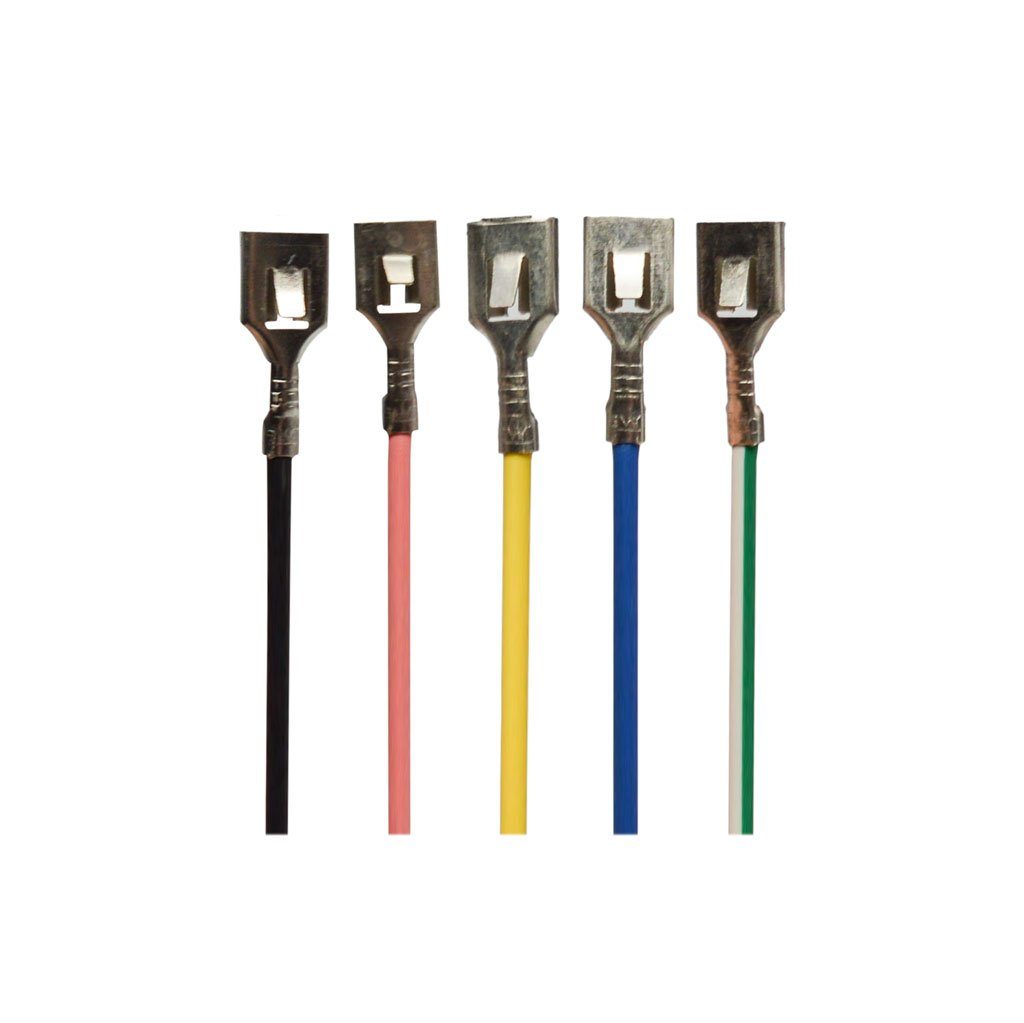

- 5 wires - 45cm (17.75 in) overall length with 7.5mm wide spade connectors
- 3 bolt mounting

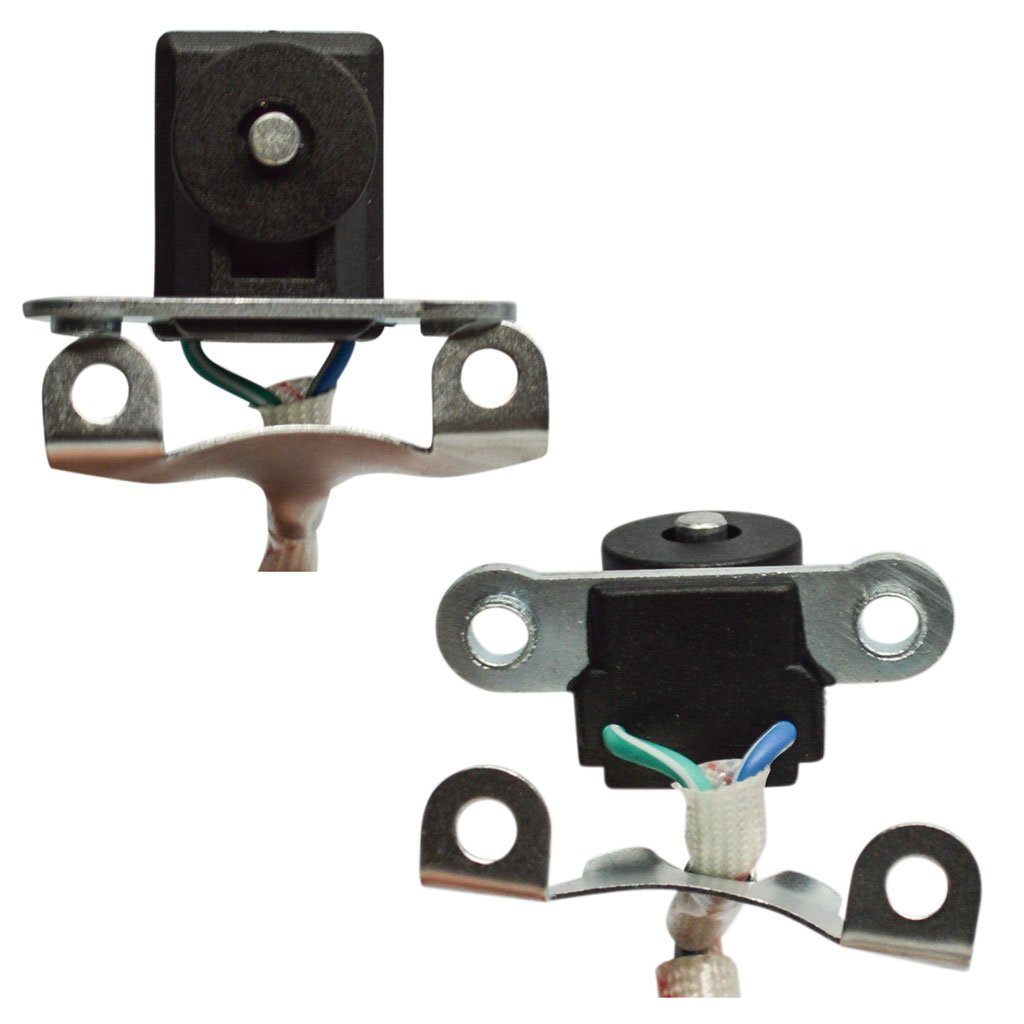

- Pick up trigger - 2 wire
- Center hole measurement: 32mm (1.26 in)
- Overall measurement: 88.6mm (3.49 in)
- Single coil height: 30mm (1.18 in)
- Wrapped coil height: 31mm (1.22 in0

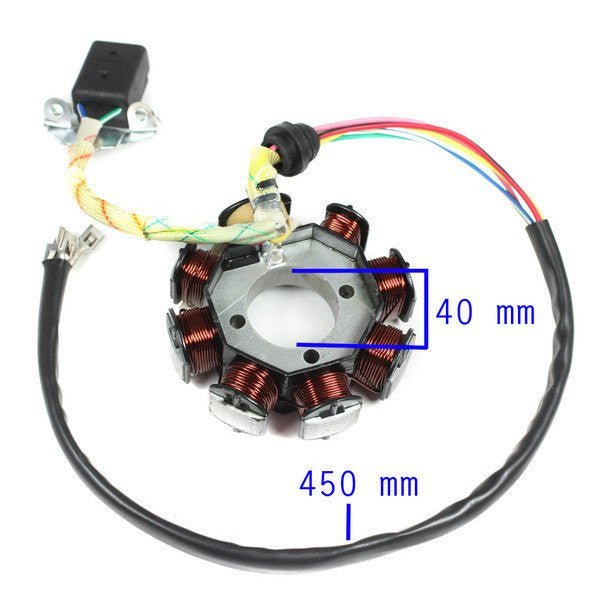

- Mounting measurement: center-to-center across 40mm (1.575 in)
- Mounting measurement: center-to-center diagonally 28.5mm (1.125 in)
- Compatible with 200-250cc vertical with manual clutch
Shipping details:
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
