Chinese 2 Coil Stator Magneto for Tao Tao 125cc engines.
Version 52

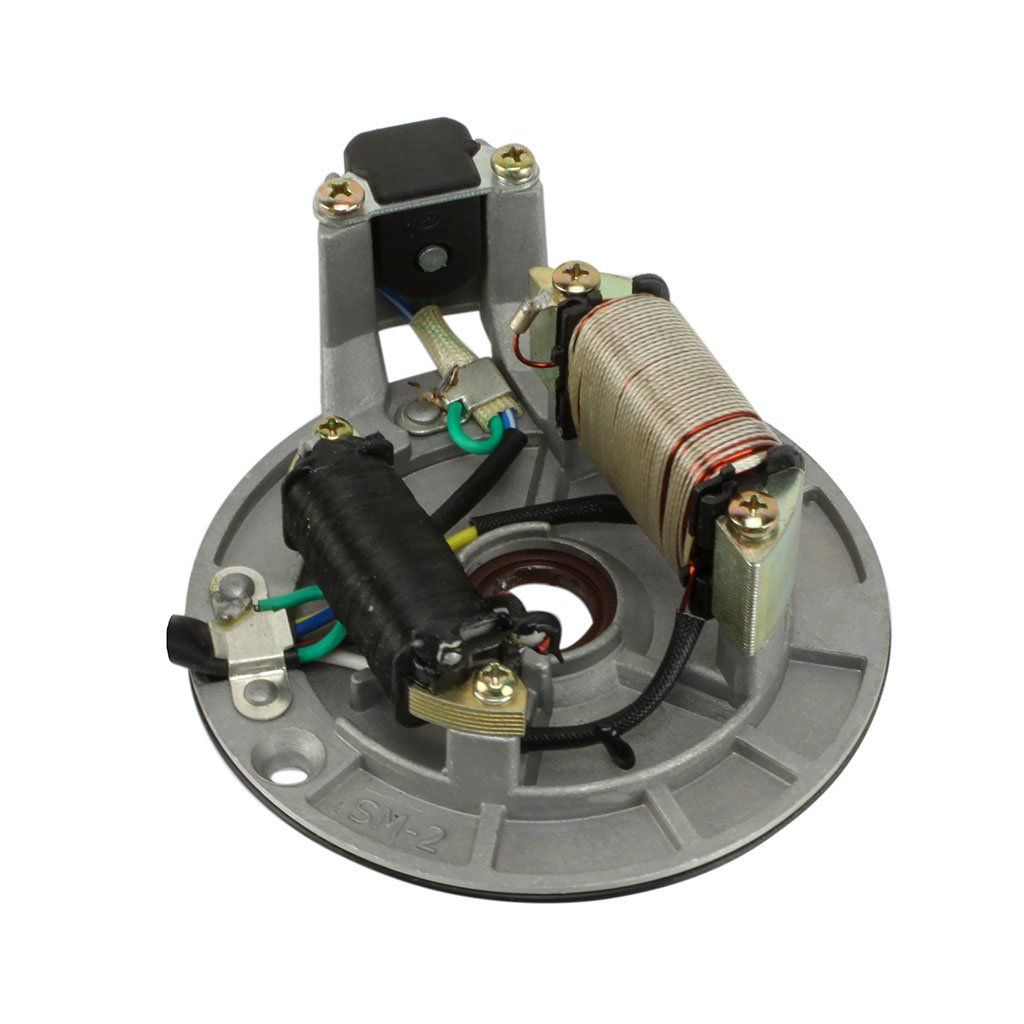

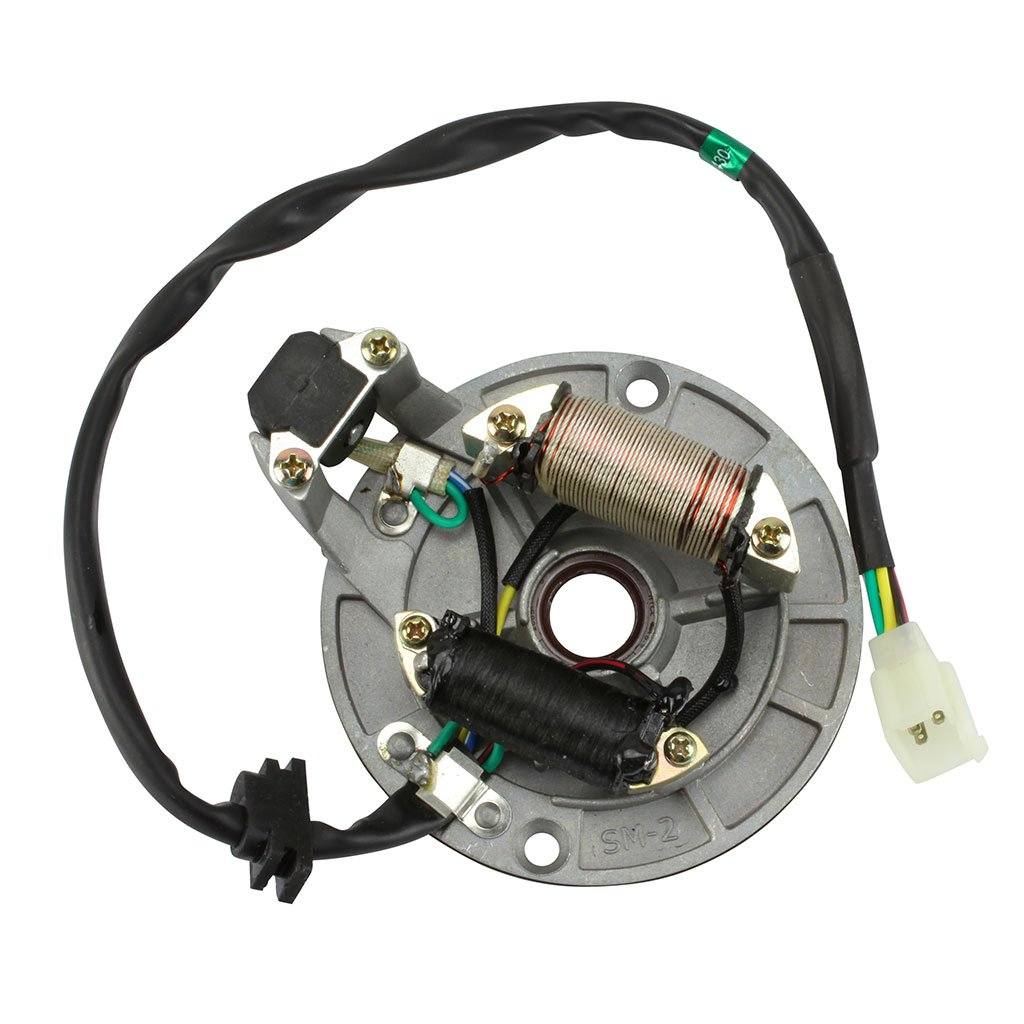

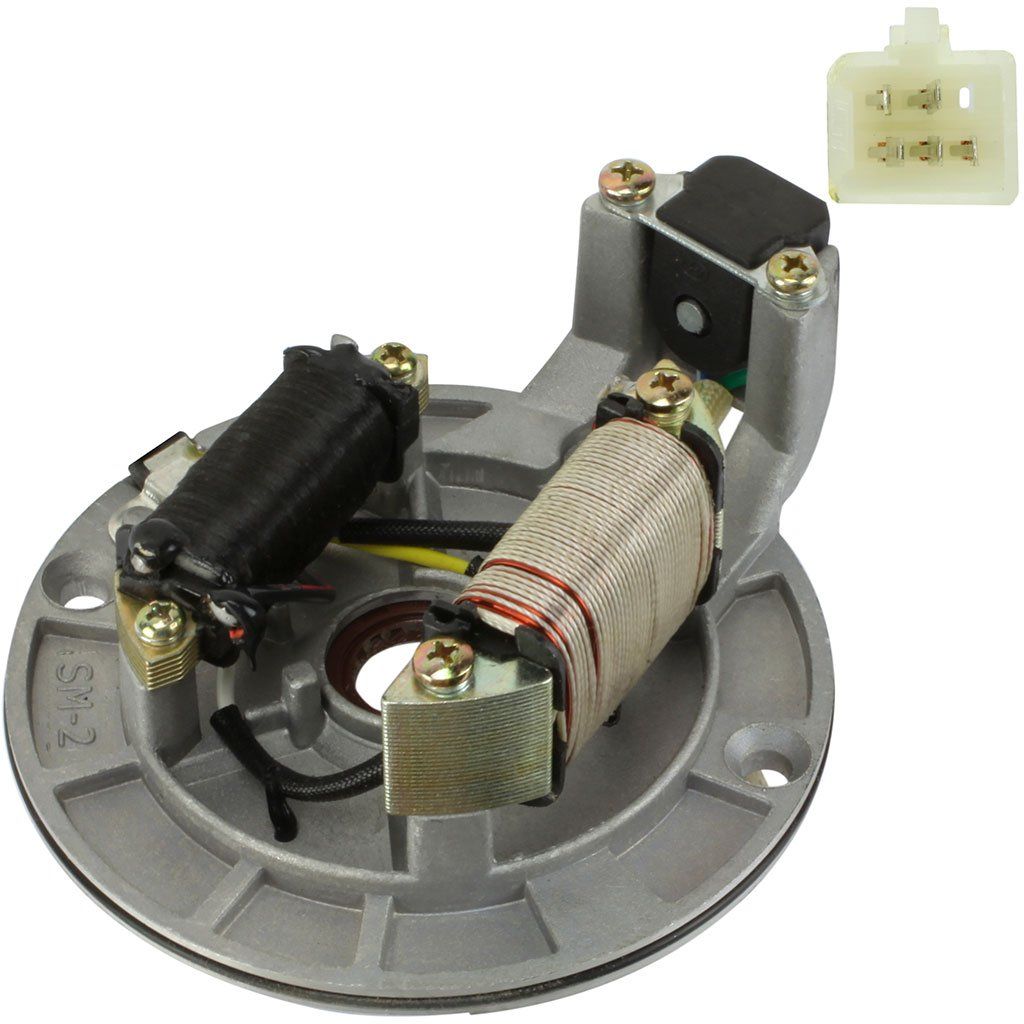

This Chinese stator magneto is the replacement part for the 4-stroke, 125cc, Tao Tao DB17 dirt bike. The stator recharges the battery while the machine is in use, like an alternator in a car. Please look at pictures and description before ordering.
Stator description:
- 2 coil - one large and one small

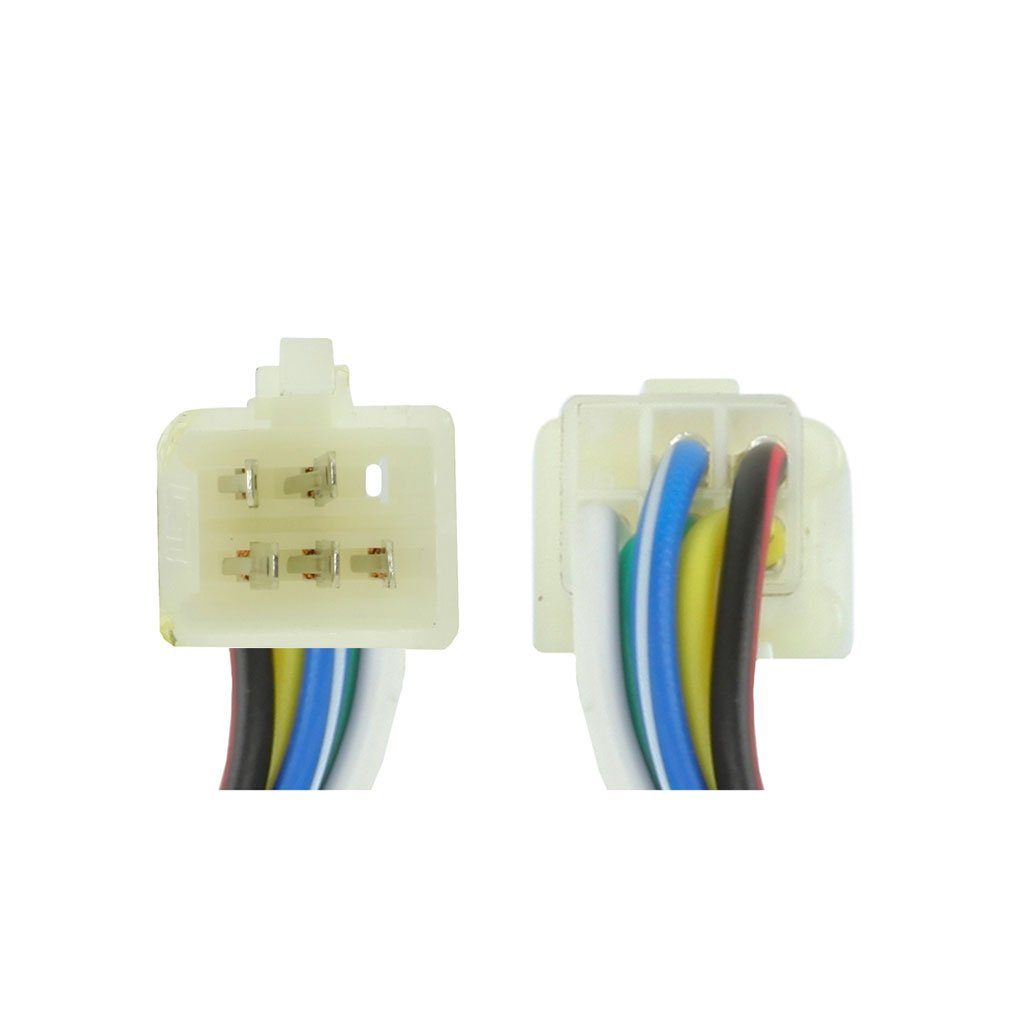

- 5 wires - 6 wire plug with total of 5 wires: 16.5 inches overall wire length
- 2 bolt mounting 101mm (3.97 in) center-to-center apart
- Pick up trigger
- Center hole measurement: 18mm (.71 in)
- Diameter of mounting plate: 115mm (4.5 in)
- Compatible with 125cc 4-stroke
- 109298 JH70
Known to fit Tao Tao DB17 dirt bike.
Shipping details:
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
