Part number:
950-SM272-46

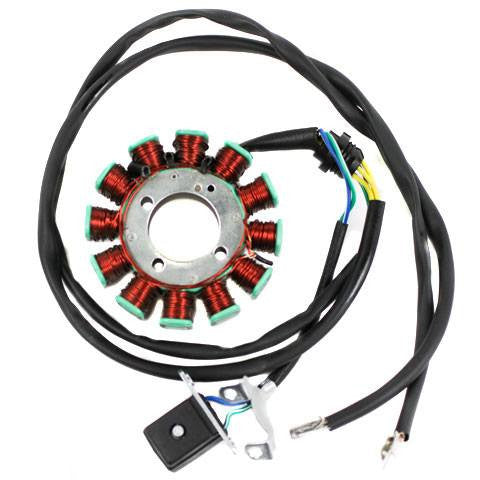

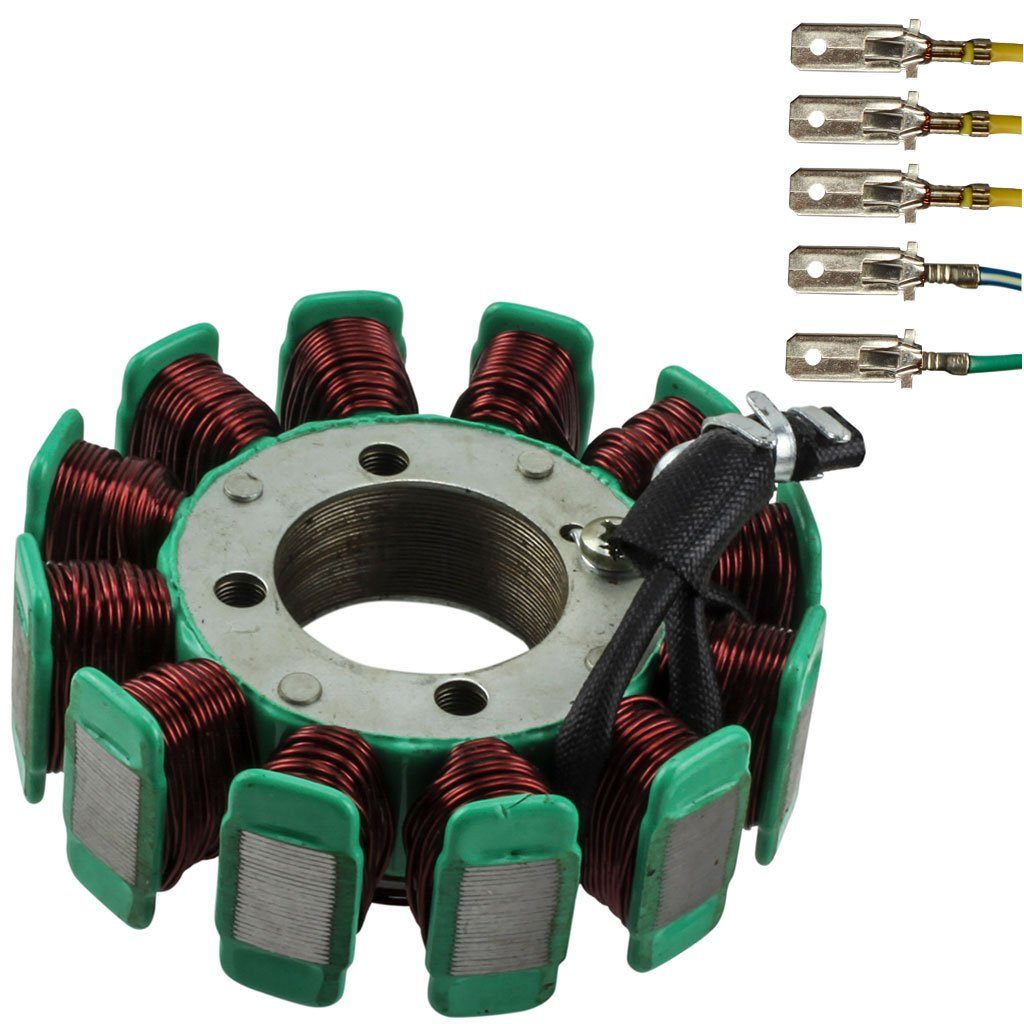

Chinese 12 Coil Stator Magneto for Bashan 200cc Engines.
Version 46
This Chinese stator magneto is the replacement part for many 4-stroke Chinese atvs, dirt bikes, go-karts and scooters. The stator recharges the battery while the machine is in use, like an alternator in a car. This stator fits 200cc models.
Stator description:
- 12 coil

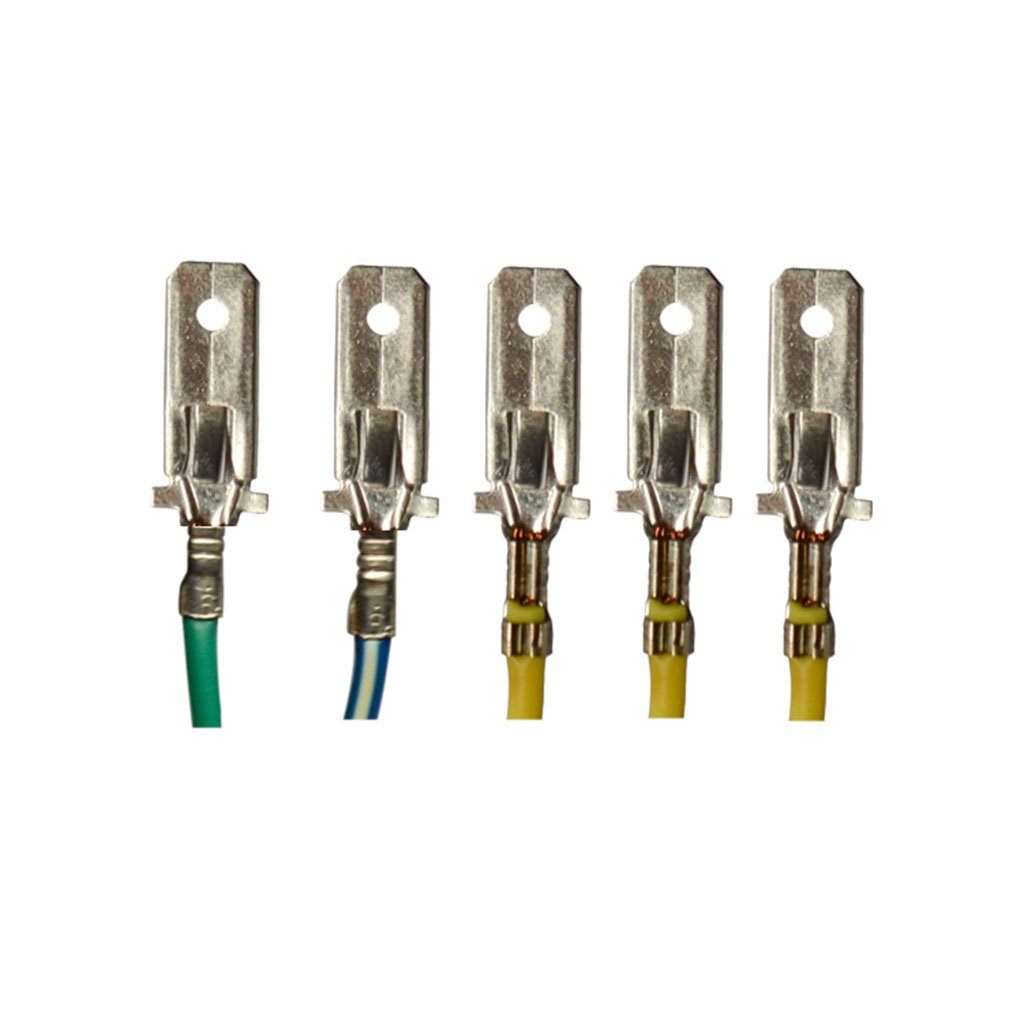

- 7 wires - 5 male spades - 2 pigtail (+2 trigger wire)
- Wiring harness is approximately 28 inches long
- 3 bolt mounting

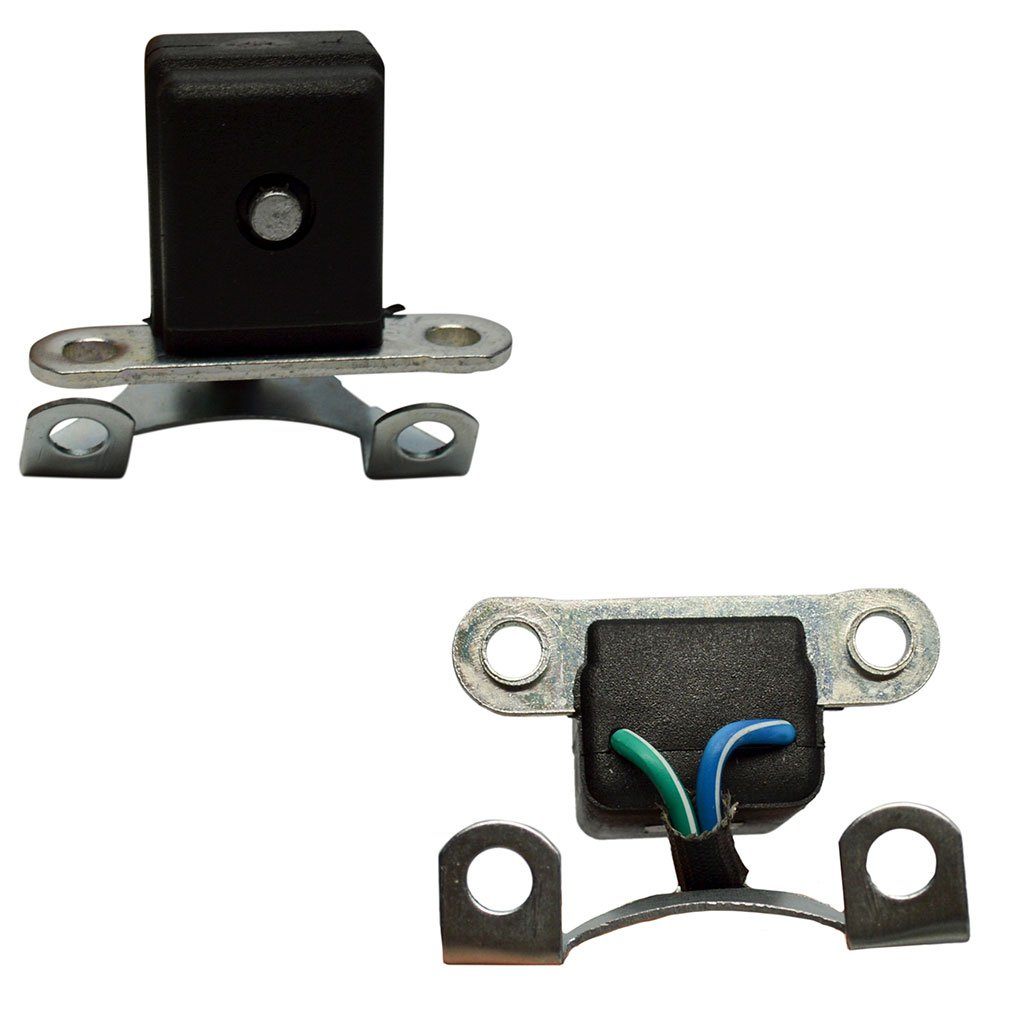

- Pick up trigger wire - two wire
- Center hole measurement: 32mm (1.26 in)
- Overall width: 88mm (3.47 in)
- Single coil height: 30.4mm (1.20 in)
- Mounting measurement: center-to-center diagonally 28.2mm (1.11 in)
