Part number:
1243-RS428-46

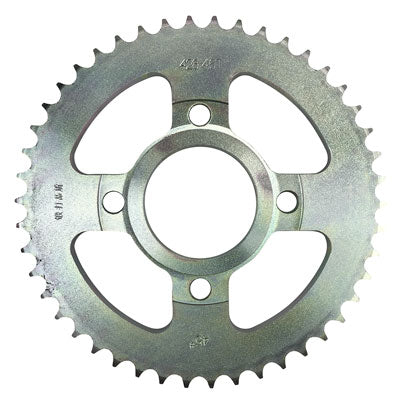

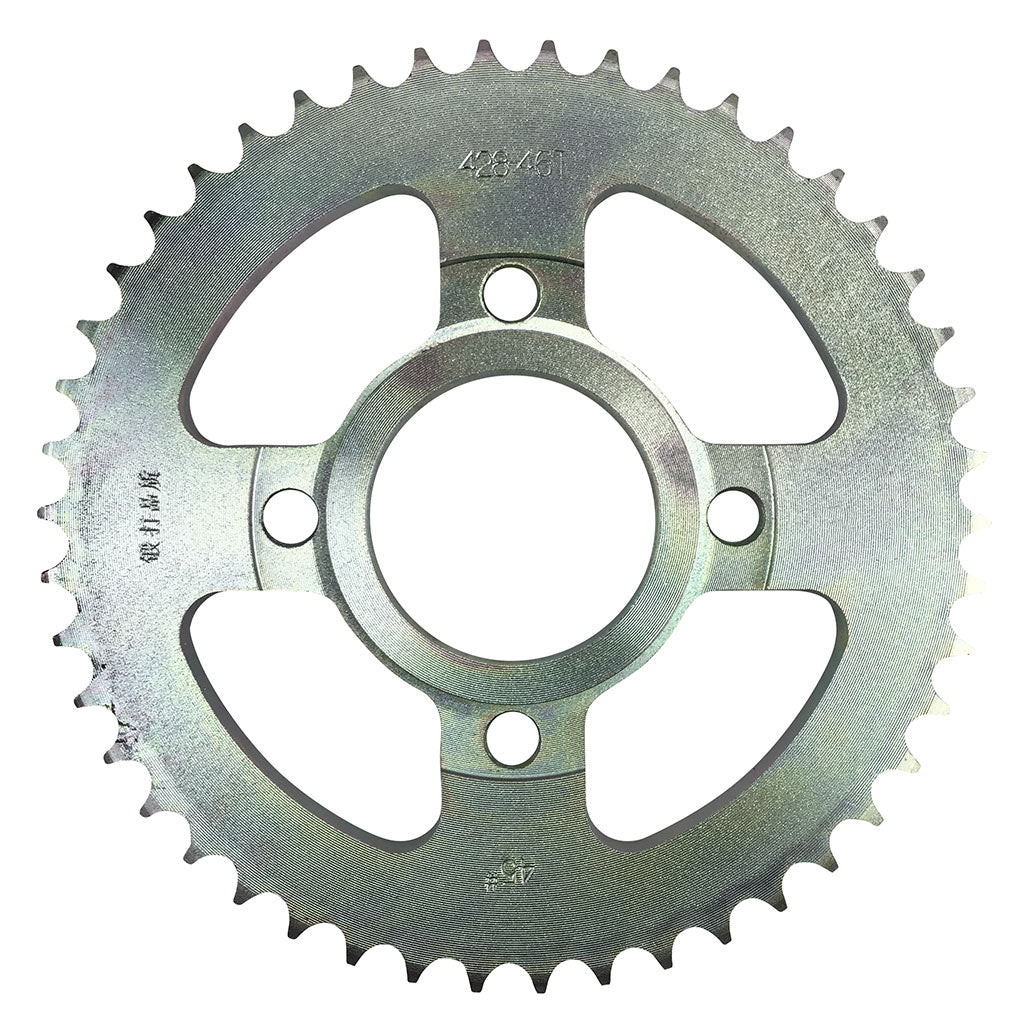

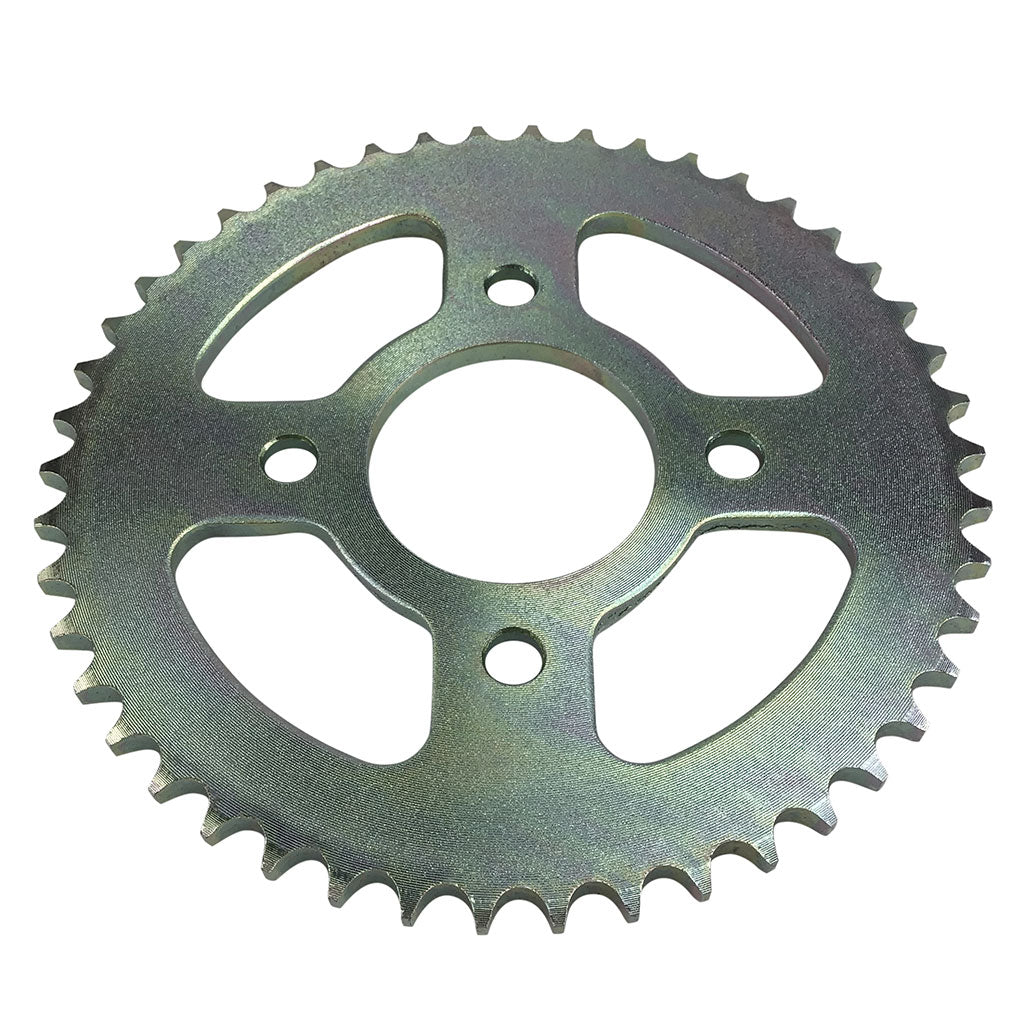

Dirt Bike Rear Sprocket - 428-46T
This rear sprocket is used on the Chinese 125cc-250cc engines. This sprocket has 46T and is compatible with the 428 chain ONLY.
Sprocket details:
- #428 chain
- 46 Teeth
- Center hole diameter: 58mm (2.28 in)
- Mounting holes distance: 63.5mm (2.50 in) side-to-side
- Bolt circle diameter: 90mm (3.5 in)
- 10.6mm bolt holes
- Overall diameter: 190mm (7.48 in)
- Flat on one side
- 607290
Be sure to measure your chain or current sprocket before ordering. This sprocket is know to fit the Tao Tao TBR7 dirt bike.
