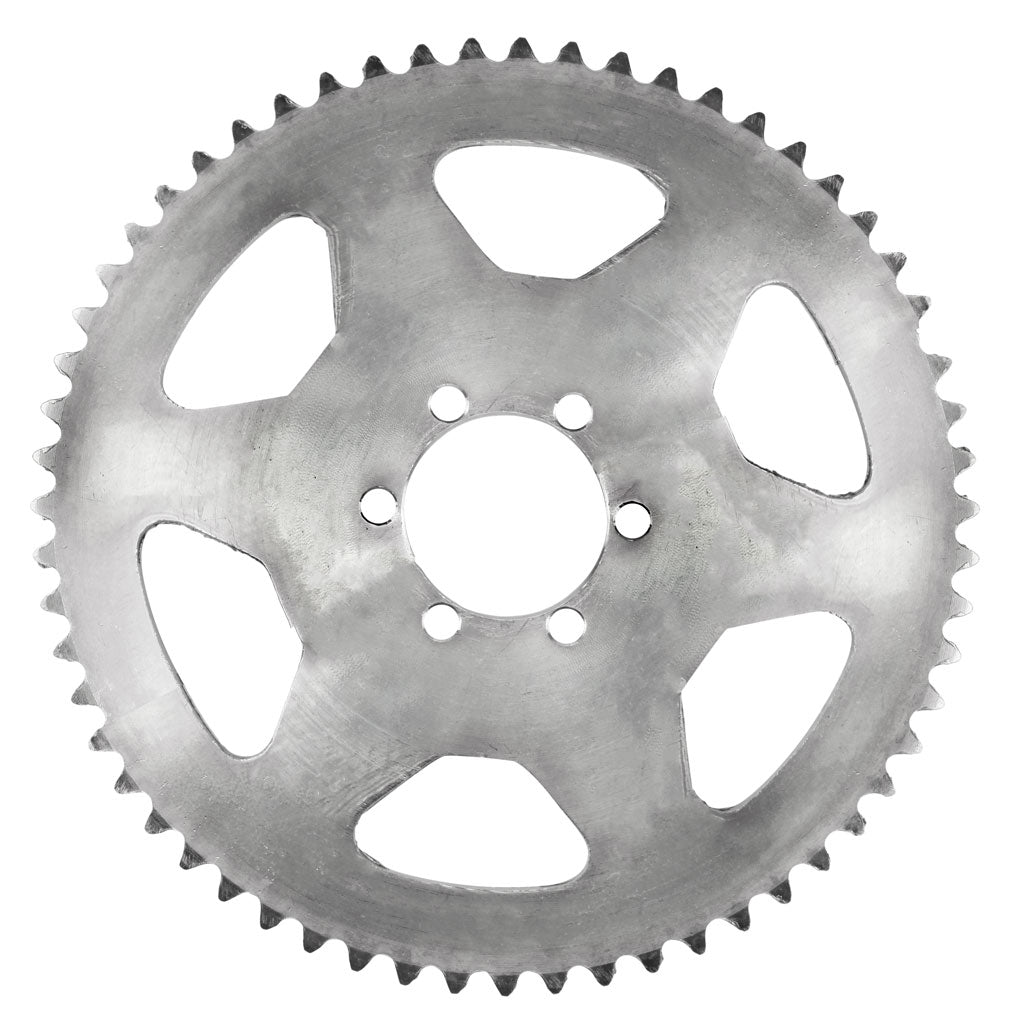

Chinese ATV Rear Sprocket - 35-59T
This rear sprocket is used on Chinese 50cc-125cc engines. This sprocket has 59 teeth and is compatible with #35 chain ONLY. This is the rear sprocket on the Coleman CK100 and the HiSun HS100GK go-karts.
Sprocket details:
- #35 chain
- 59 Teeth
- Center hole diameter: 38mm (1.49 in)
- Mounting holes: 23.5mm (0.92 in) apart center to center (side by side)
- Mounting holes: 48mm (1.89 in) apart straight across
- Overall diameter: 183mm (7.21 in)
- Chain Sprocket III
- 53305-401001-0000
- Fits Coleman CK100 and the HiSun GK100 go-kart.
Be sure to measure your chain or current sprocket before ordering. 420 chain has 1/2 inch pitch and 5/16 inch roller diameter.
