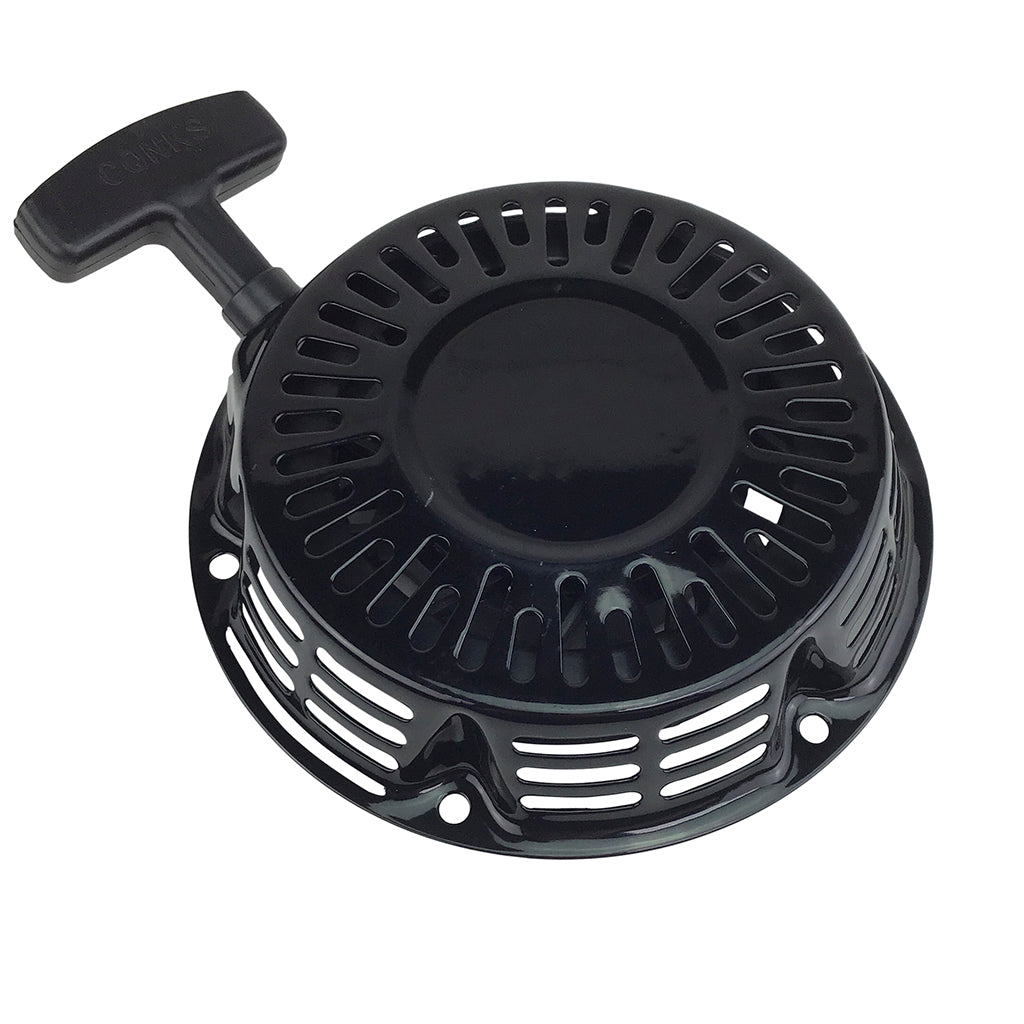

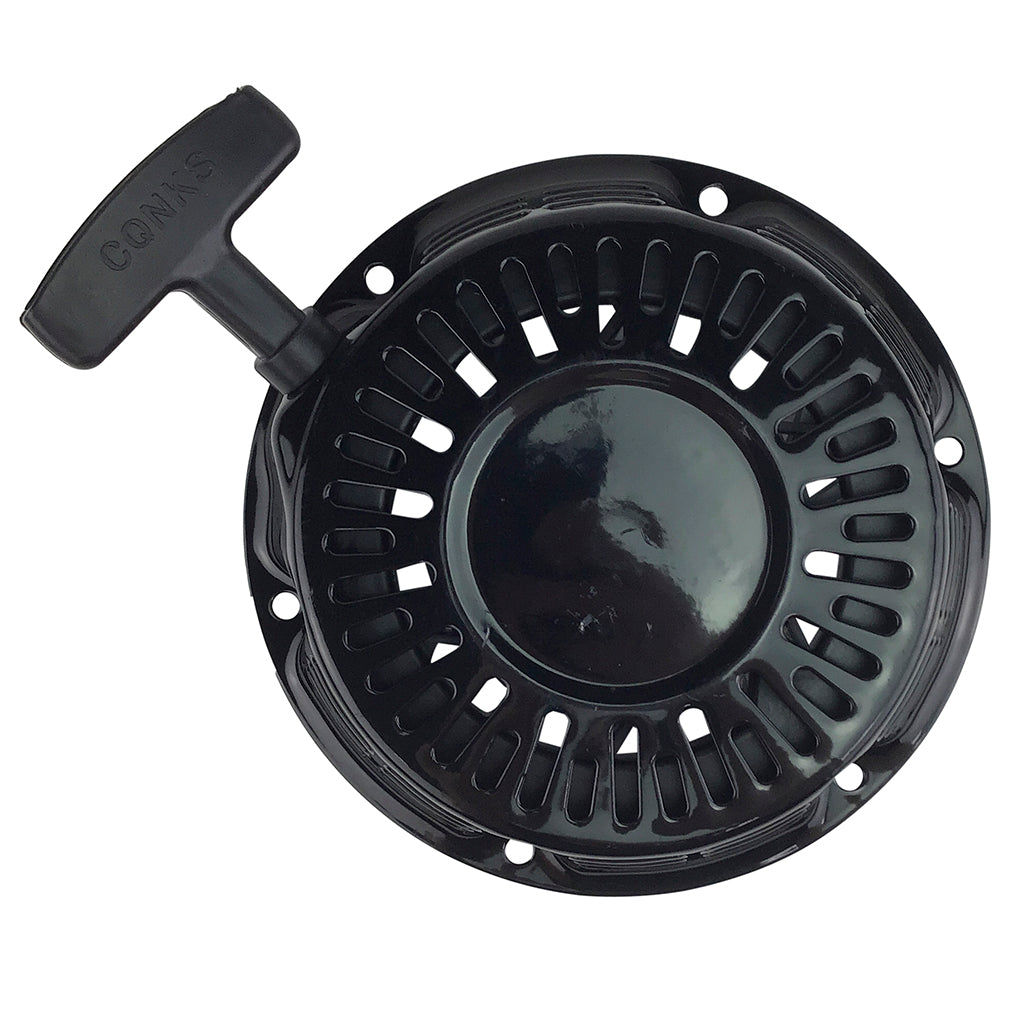

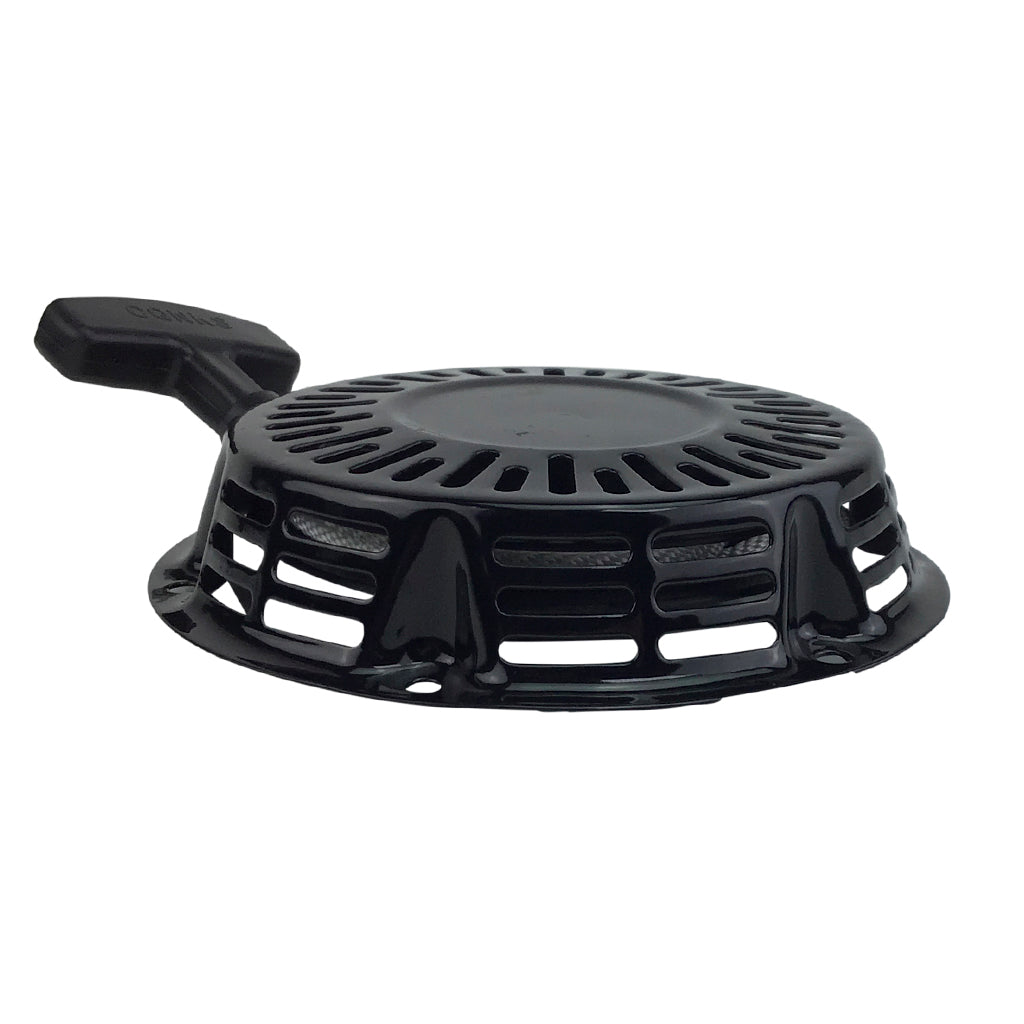

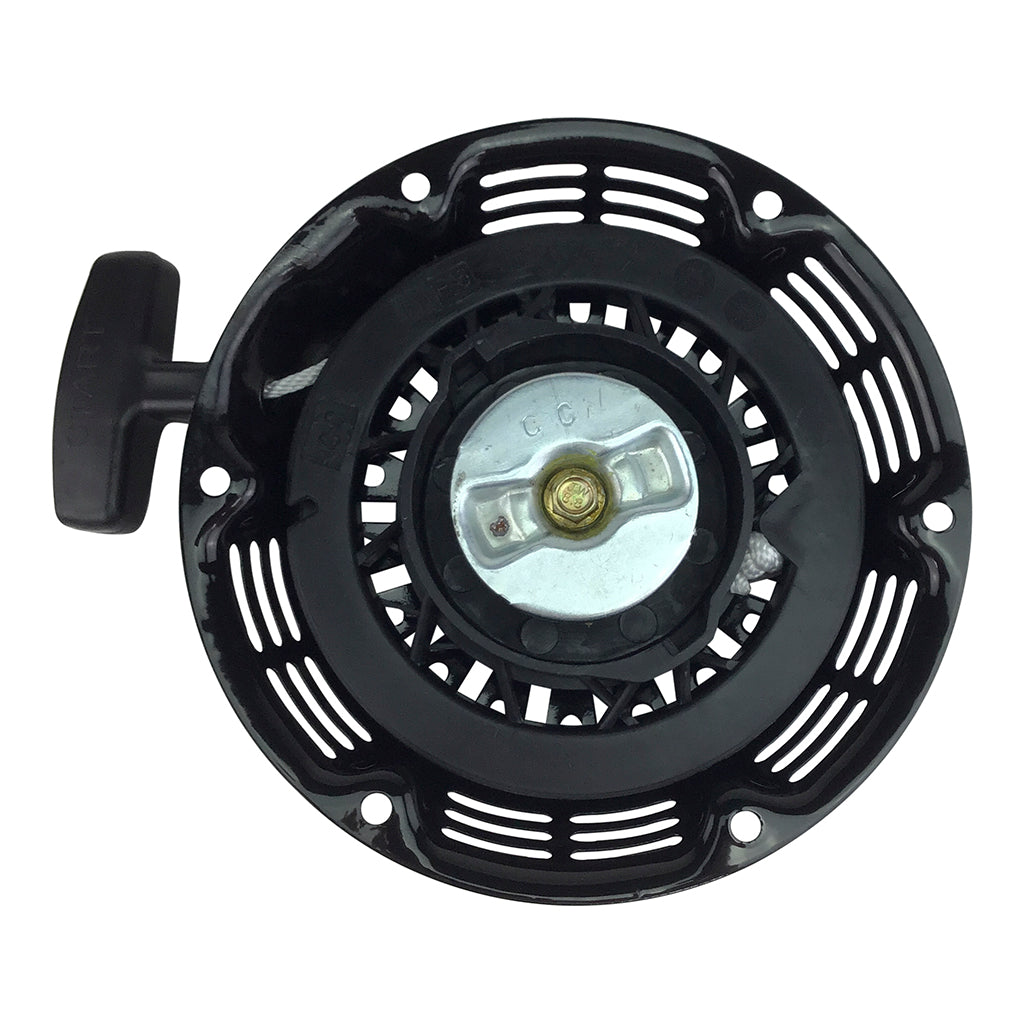

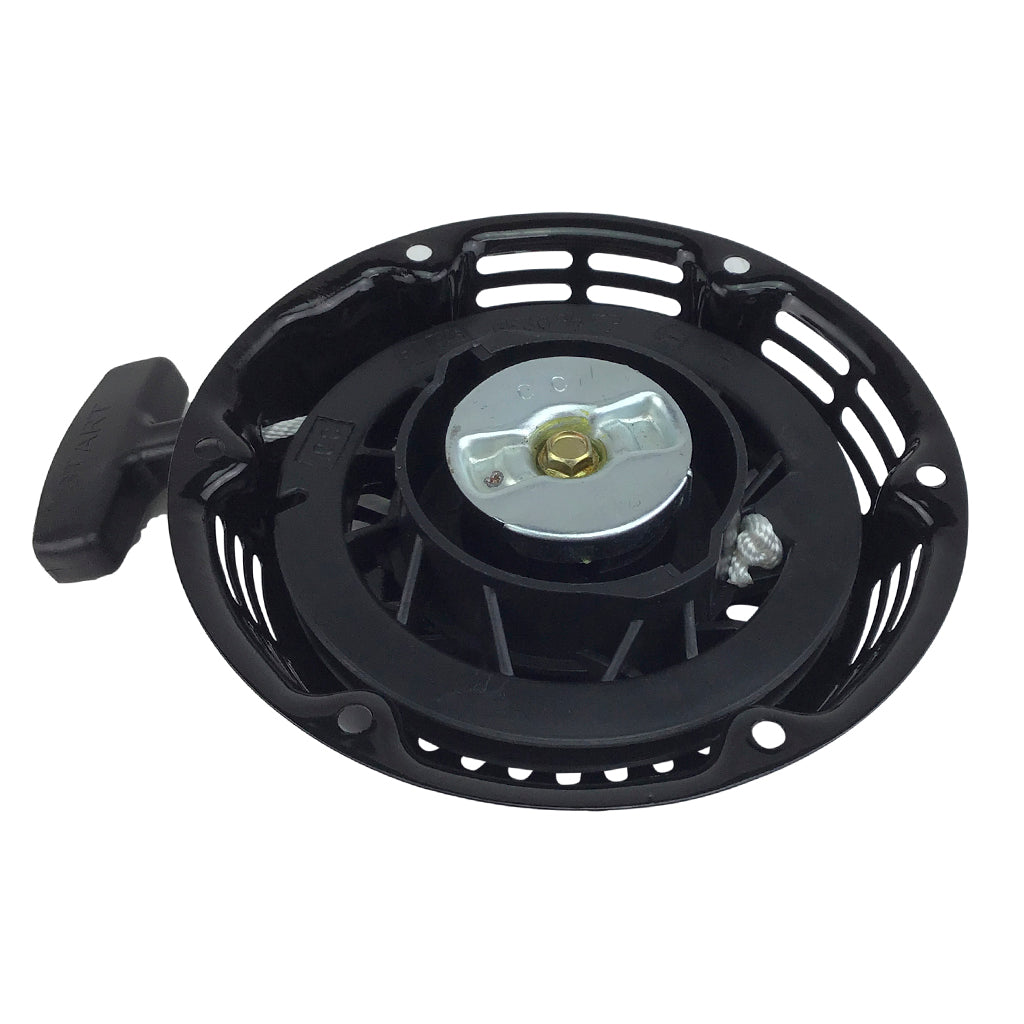

Recoil Pull Start - Metal - 5.5hp and 6.5hp Mini Bikes, Mini Baja Warrior, Coleman CT200U

Pull Start Assembly 5.5hp/6.5hp Mini Baja Warrior, Coleman, Harbor Freight, etc.

Version 6 BLACK

This Chinese atv pull start is used on several makes and models of atvs, and may also work on generators, mowers, etc.  Please use the measurements and picture to best match the pull start you are needing.

Pull start details:

• Black metal cover
• Metal ratchet guide /ratchets
• 6 mounting holes
• Distance between adjacent mounting holes center to center: 79mm (3.12 in)

• Distance across opposite mounting holes: 160mm (6.3 in)

• Overall cover width: 147.6mm (5.81 in) at widest point
• Center diameter of ratchet guide: 54mm (2.15 in)

• Recoil reel or starter drive pulley diameter: 134mm (5.28 in)

• Over all height:  36.8mm (1.45 in)

• 27100/168F  MB-200-303

• 28200-Z010510-Q200

Known to fit Mini Baja, Baja Warrior, Baja Heat, Coleman BT200X, CT200U, CT200U-EX, KT196, Harbor Freight, Jiangdong, Lowe's Axis M200, Massimo MB200 and many other 5.5hp/6.5hp JF200 Honda Clones.

Shipping details:

Do you need your pull start fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!
