Recoil Pull Start - Plastic - 2-stroke - Version 2

Pull Start Assembly Chinese

49cc - 2-Stroke Engine

Version 2

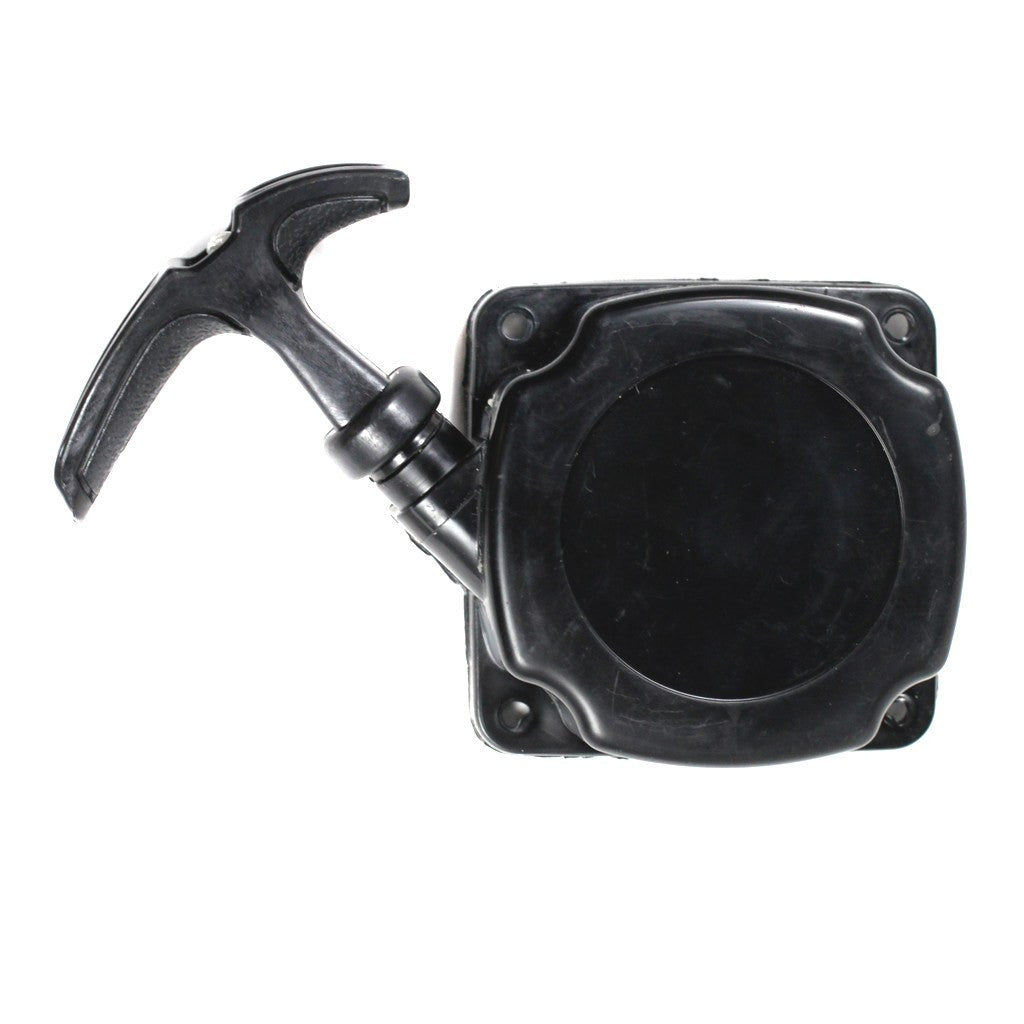

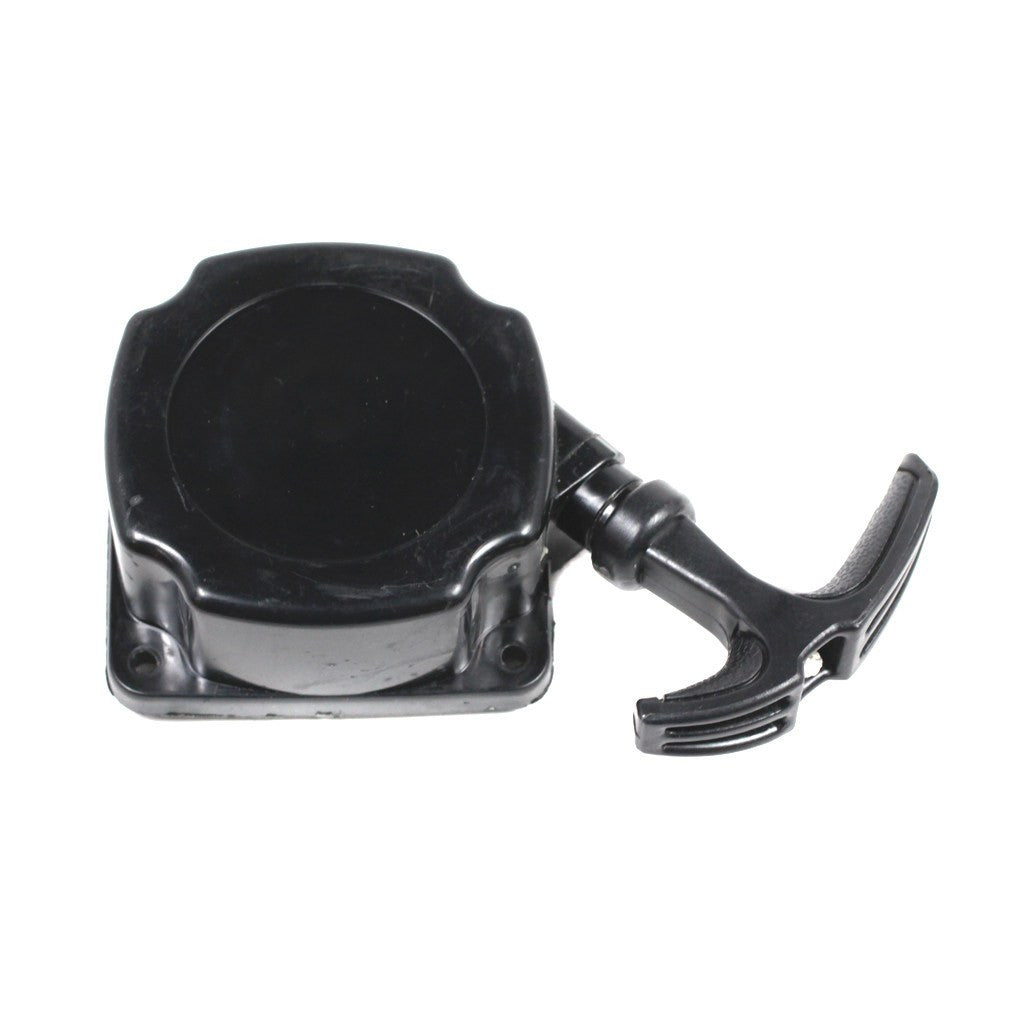

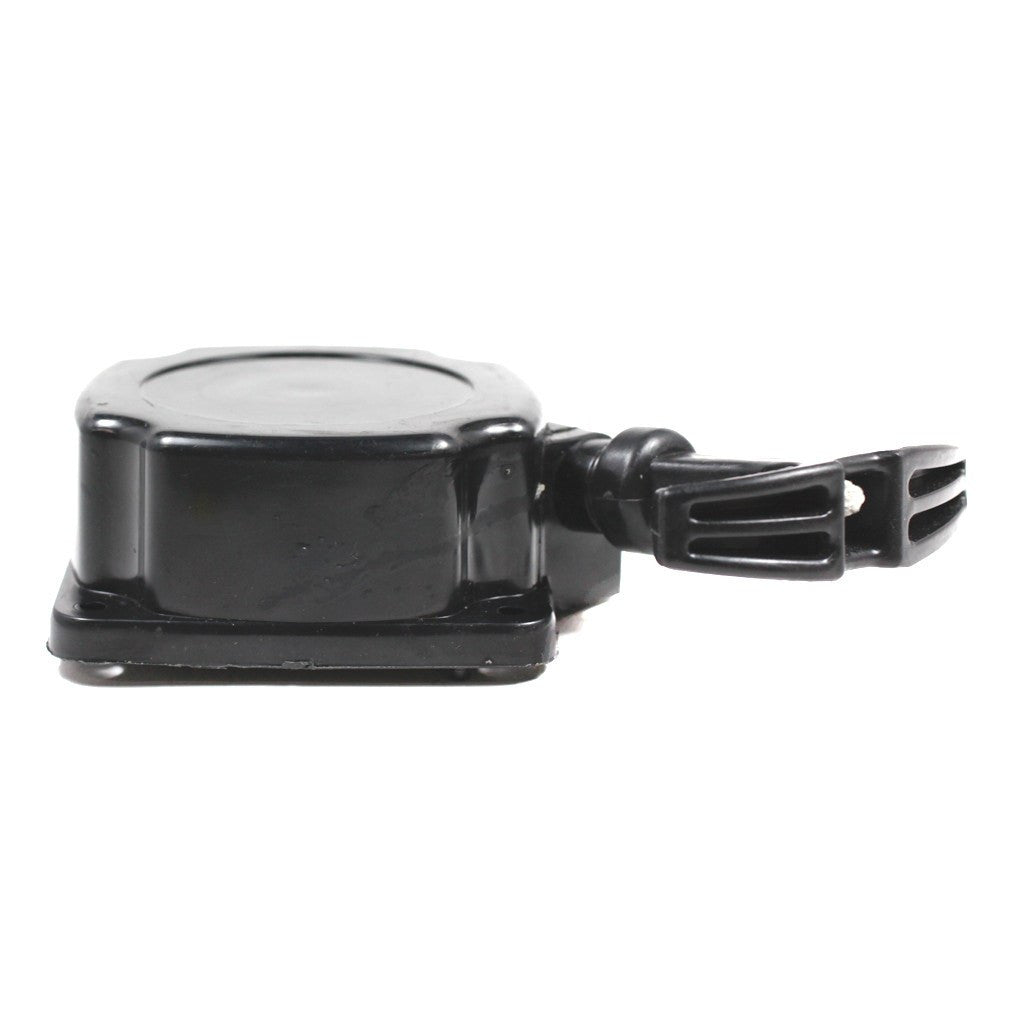

This Chinese ATV pull start is used on several makes and models of pocket & pit bikes, and may also work on chainsaws, mowers, etc.  Please use the measurements and picture to best match the pull start you are needing.

• Plastic cover
• Overall width: 83.25mm (3.28 in) x 96.9mm (3.81 in) including V shaped handle area

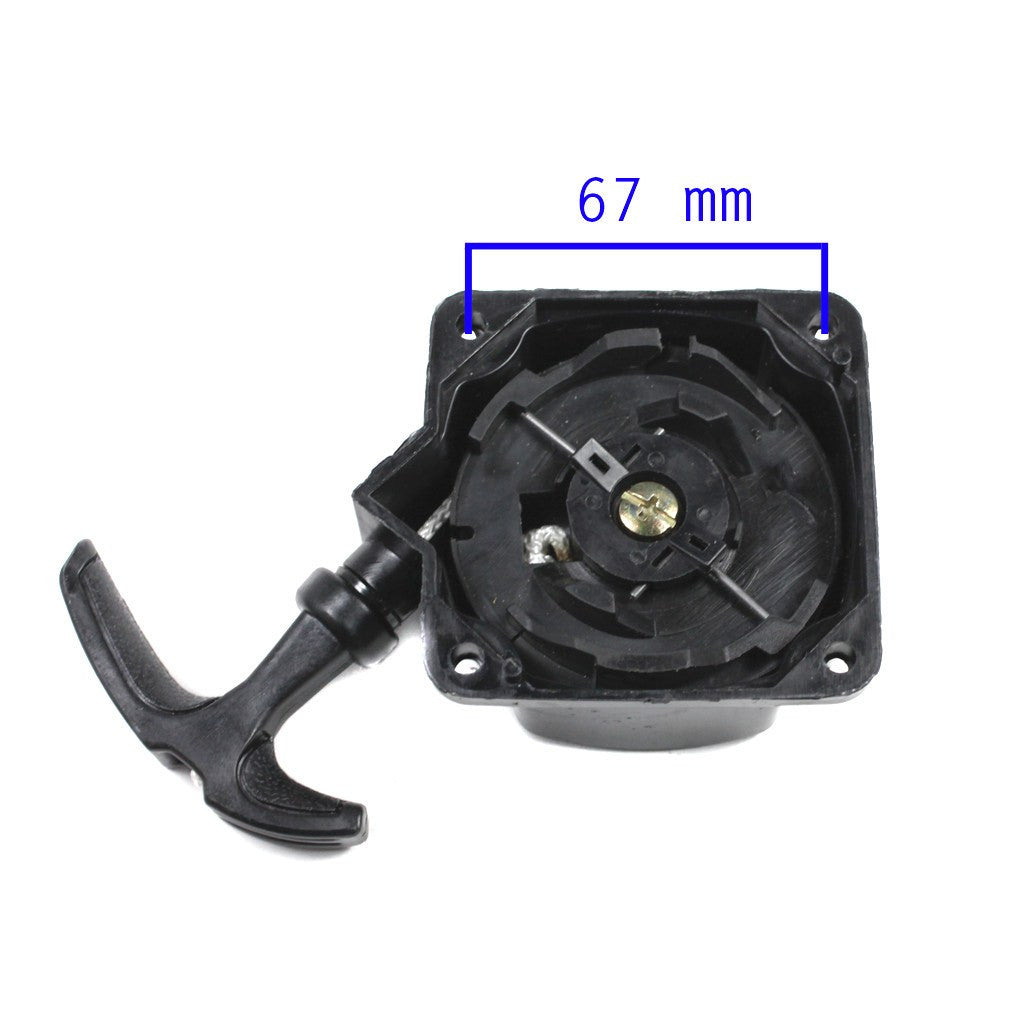

• Mounting hole distance:  67mm (2.64 in) center to center
• Mounting hole diagonal distance: 95mm (3.75 in)

• Overall height: 37mm (1.45 in) tall
• Ratchet guide diameter: 30mm (1.18 in)

• Recoil reel or starter drive pulley diameter: 73.25mm (2.88 in)


This is the most popular pull starter used on 2-stroke 33cc, 36cc, 43cc, 47cc, and 49cc mini-gas engines.
