Part number:
214-BR424-1055 RED

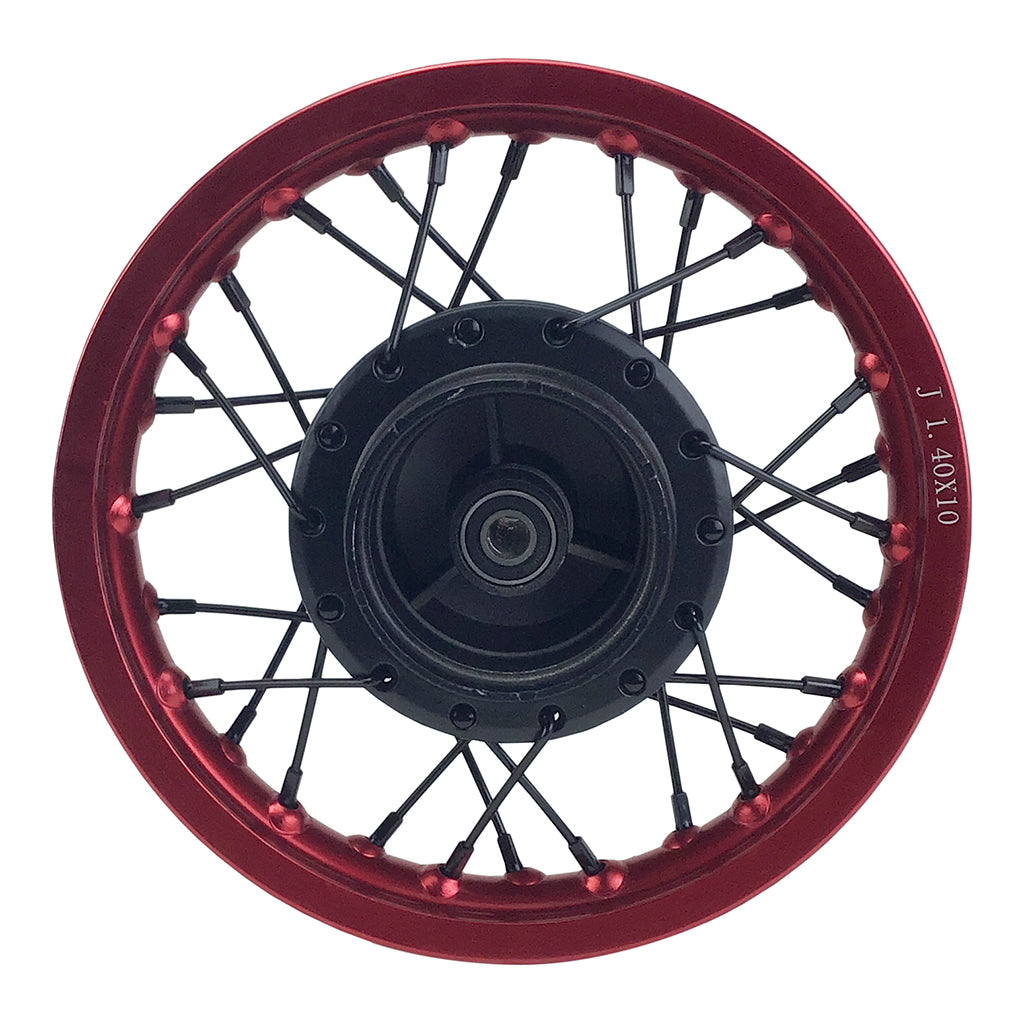

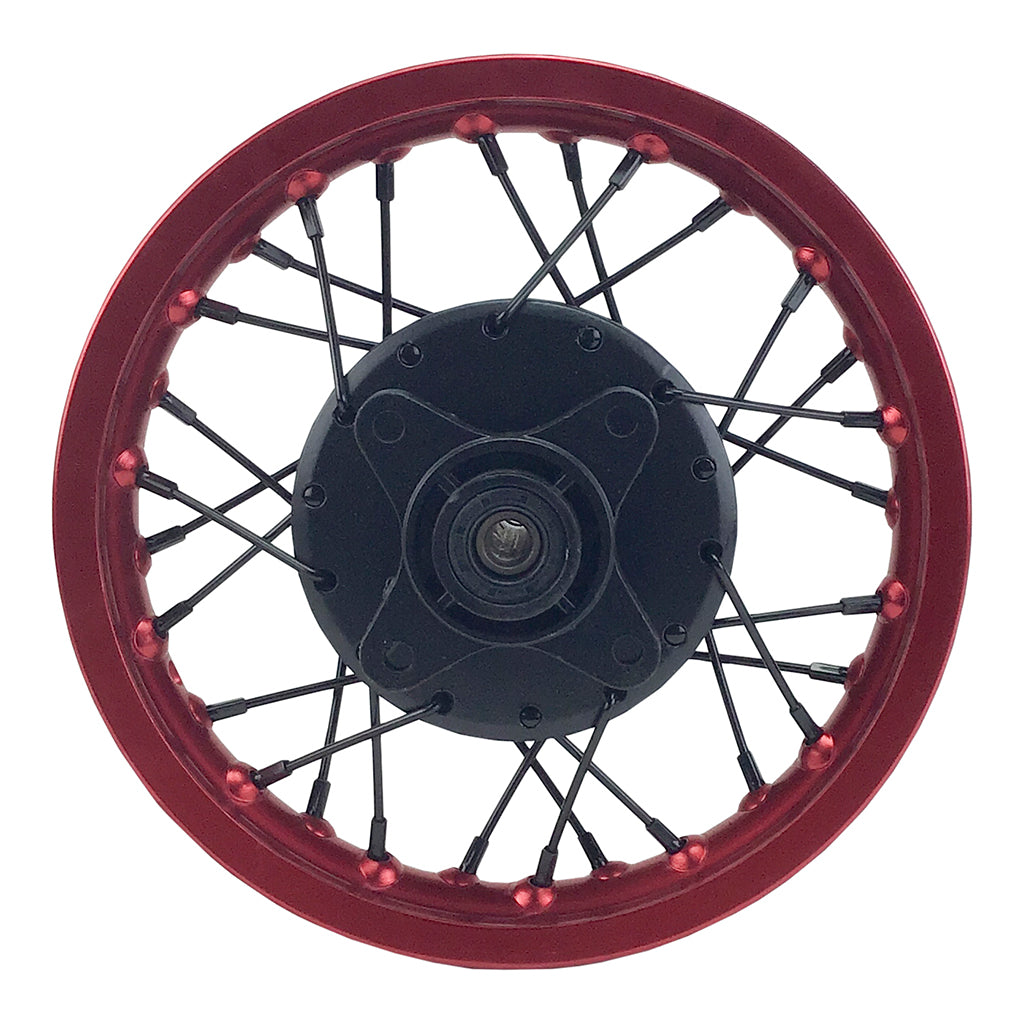

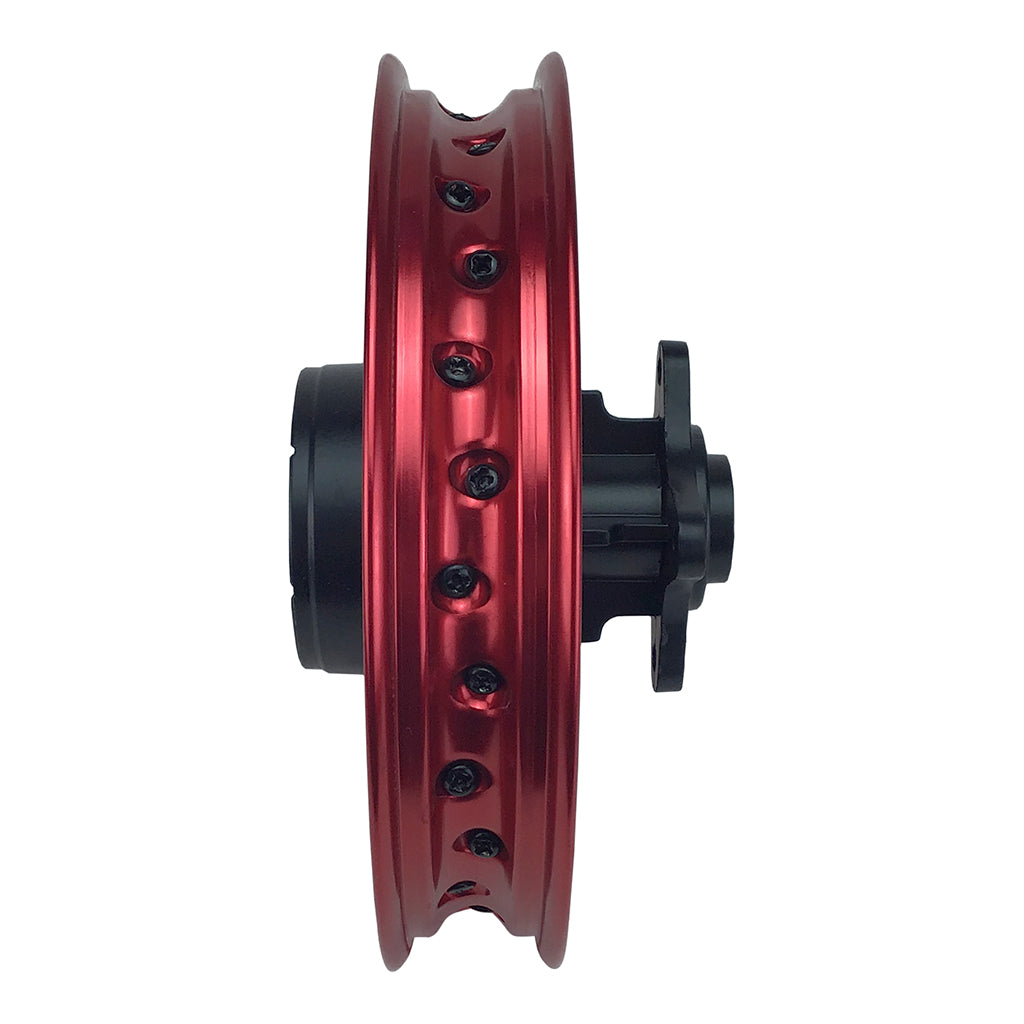

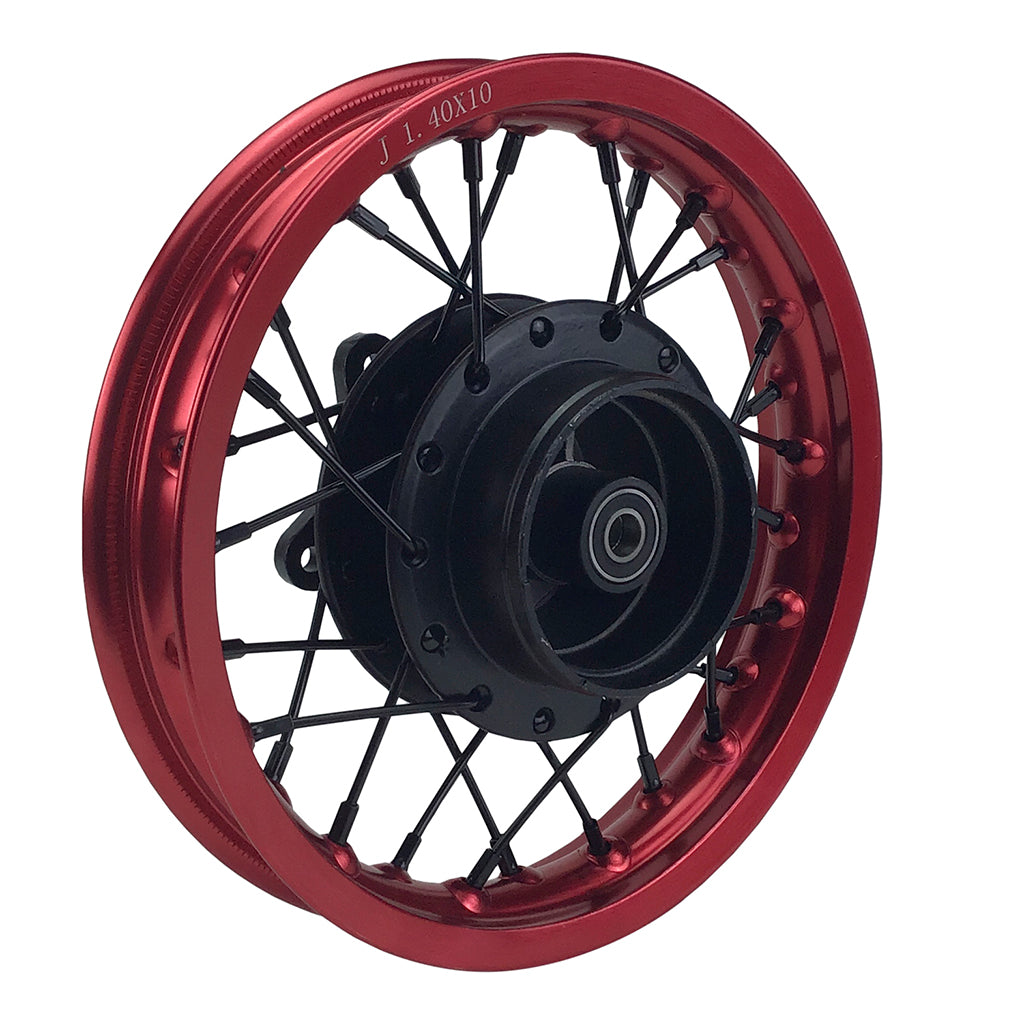

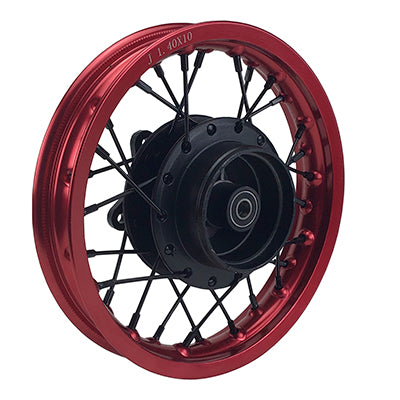

Rear 10 x 1.4 Inch Dirt Bike Rim Wheel with Drum Brake - RED
Chinese rear wheel for 50cc dirt bikes. It's used on several makes and models. Please use detailed measurements and pictures to help you get the correct rim for your machine.
Wheel details:
- Rear
- RED outer rim
- Black spokes
- Black hub
- 10.0 x 1.4 inch
- 28 spokes
- ID: 12mm (0.47 in)
- Overall width of rim: 52mm (2.05 in)
- Overall rim diameter: approximately 27cm (10.63 in)
- Bolt hole spacing: 63mm (2.49 in) center to center
- Bolt hole spacing diagonally: 89mm (3.52 in)
- ID of drum: 8cm (3.15 in) measurement taken 1/2 inch below edge
- OD of drum: 9.52cm (3.75 in)
- Bearing: 6001RS
The last number on your TIRE will let you know if you are needing a 10.0 inch rim. This is a 10.0 inch rim. Known to fit the Tao Tao DB10 dirt bike.
Shipping details:
Do you need your rim fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
