Part number:
1241-FS35-24-1

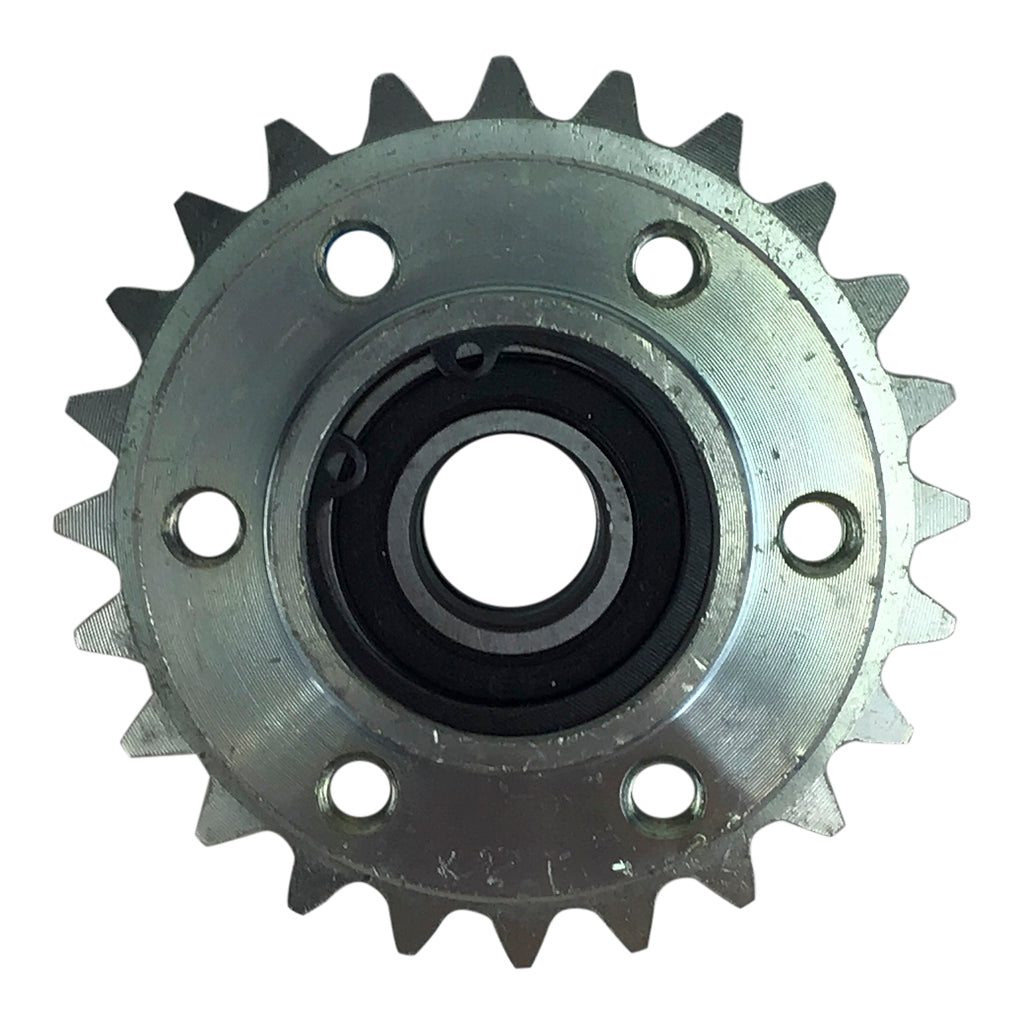

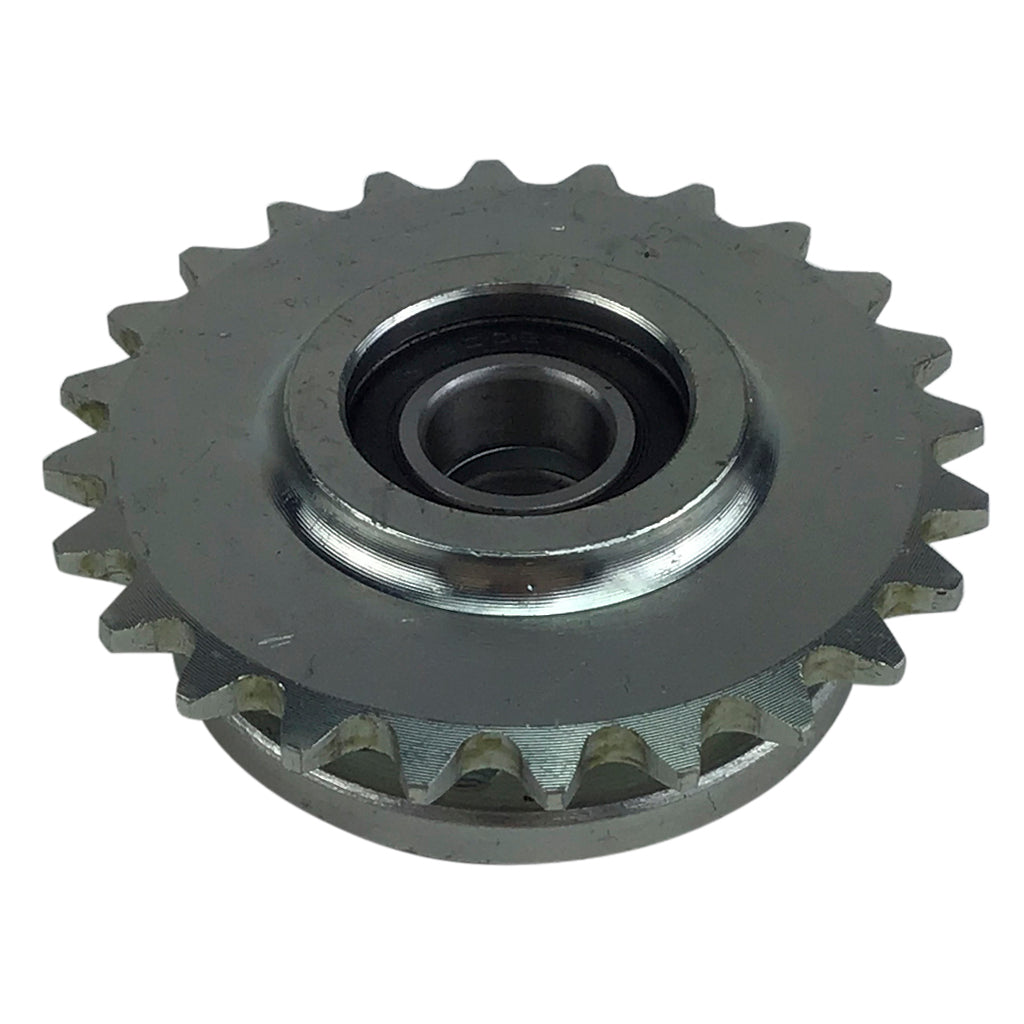

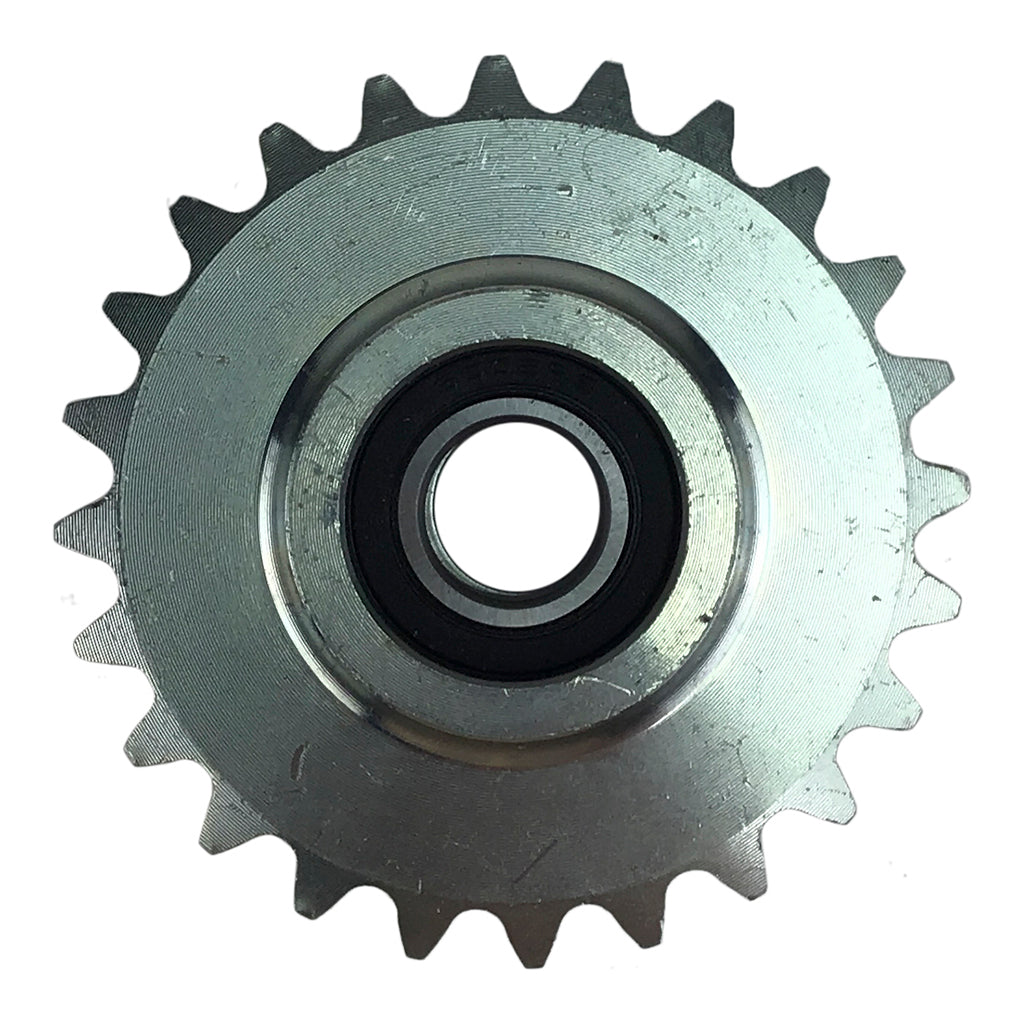

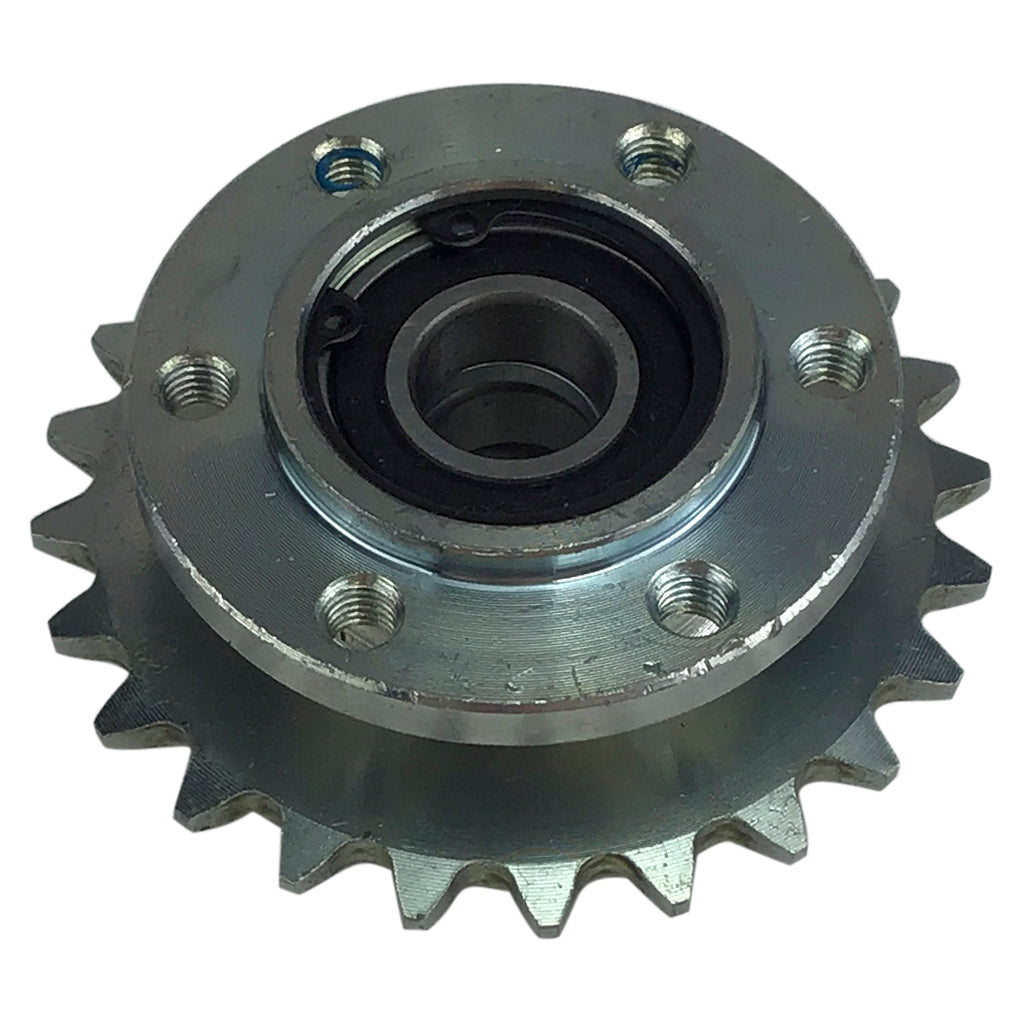

Front Sprocket 35-24T Coleman SK100 and Tao Tao GK80 Go-Kart
This hub and front sprocket assembly is used on the Chinese 80cc and 98cc engines, specifically the Coleman SK100 and the Tao Tao GK80 go-kart. May be used on other applications as well. This sprocket has 24T and is compatible with the #35 (06C) chain ONLY.
Sprocket details:
- Small engine sprocket with hub on the SK100
- #35 chain
- 24 Teeth
- ID 15mm (0.58 in)
- OD 77mm (3.03 in)
- Width: 27.4mm (1.08 in)
- (6) 6MM bolt holes 24mm (0.96 in) center-to-center apart
- Uses (2) 6002 bearings
- FS-10056 102917
Be sure to measure your chain or current sprocket before ordering. Most sprockets have the chain size and teeth count stamped into the metal.
