Chinese ATV Cylinder Head Assembly
52mm - 110cc

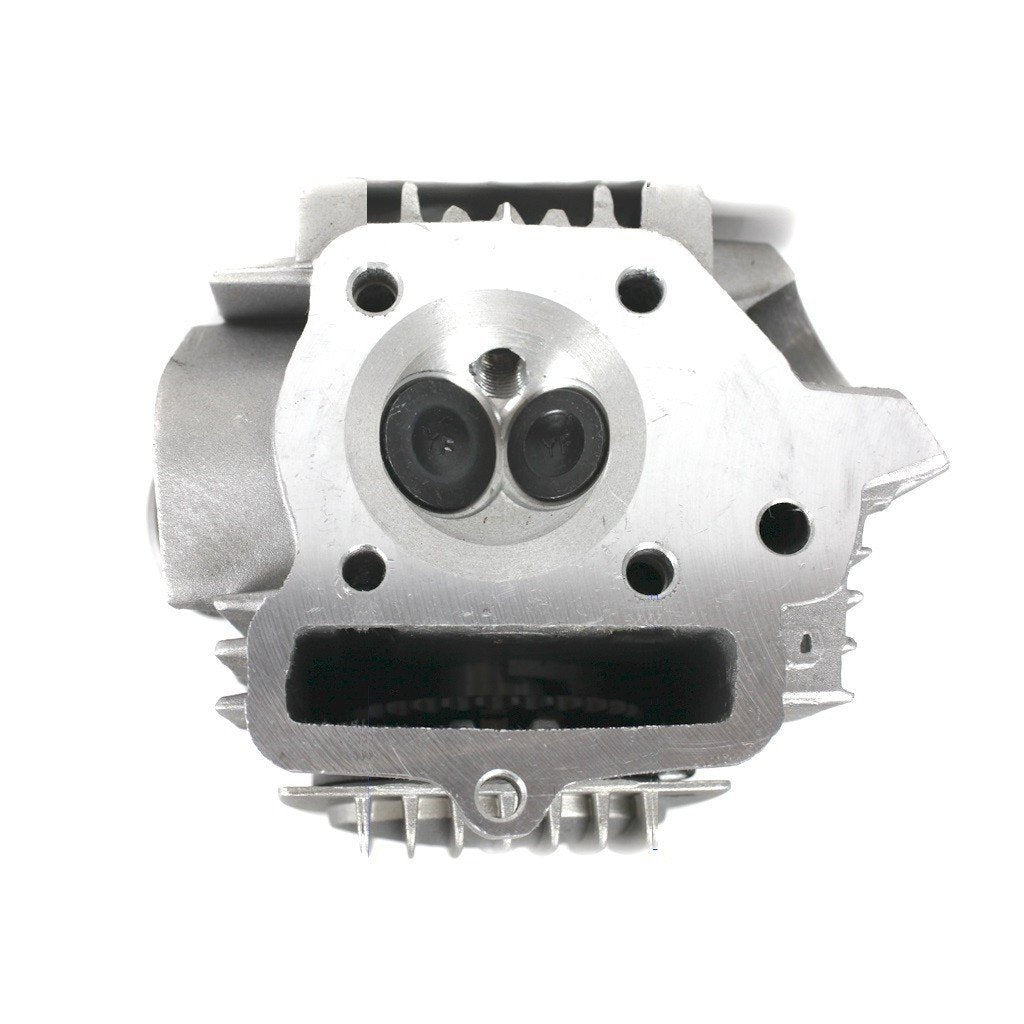

Complete cylinder head assembly with valves and cam for 110cc 4-stroke engines. Fits many makes and models of 52mm engines. Check pictures, specs and measurements for verification of the correct part.
Head description:

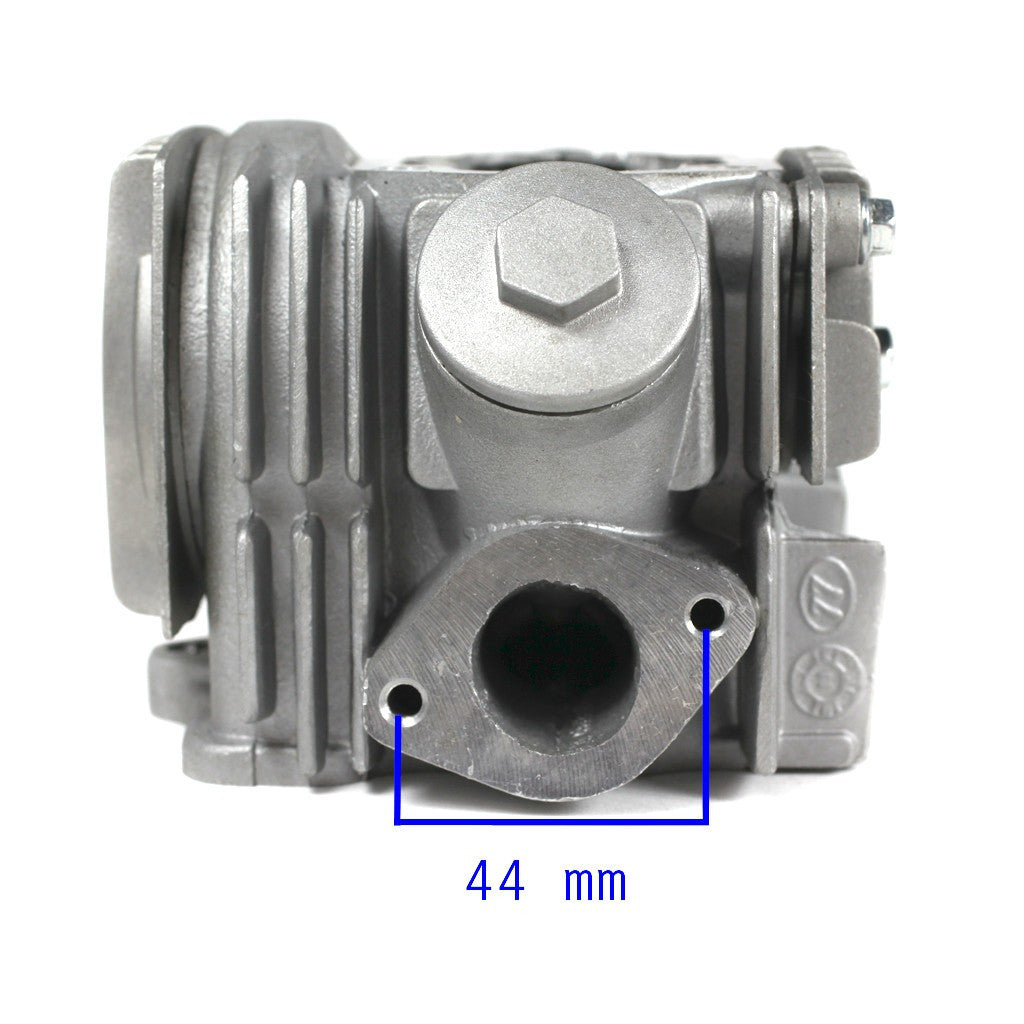

- Intake port diameter: 23mm (0.90 in)

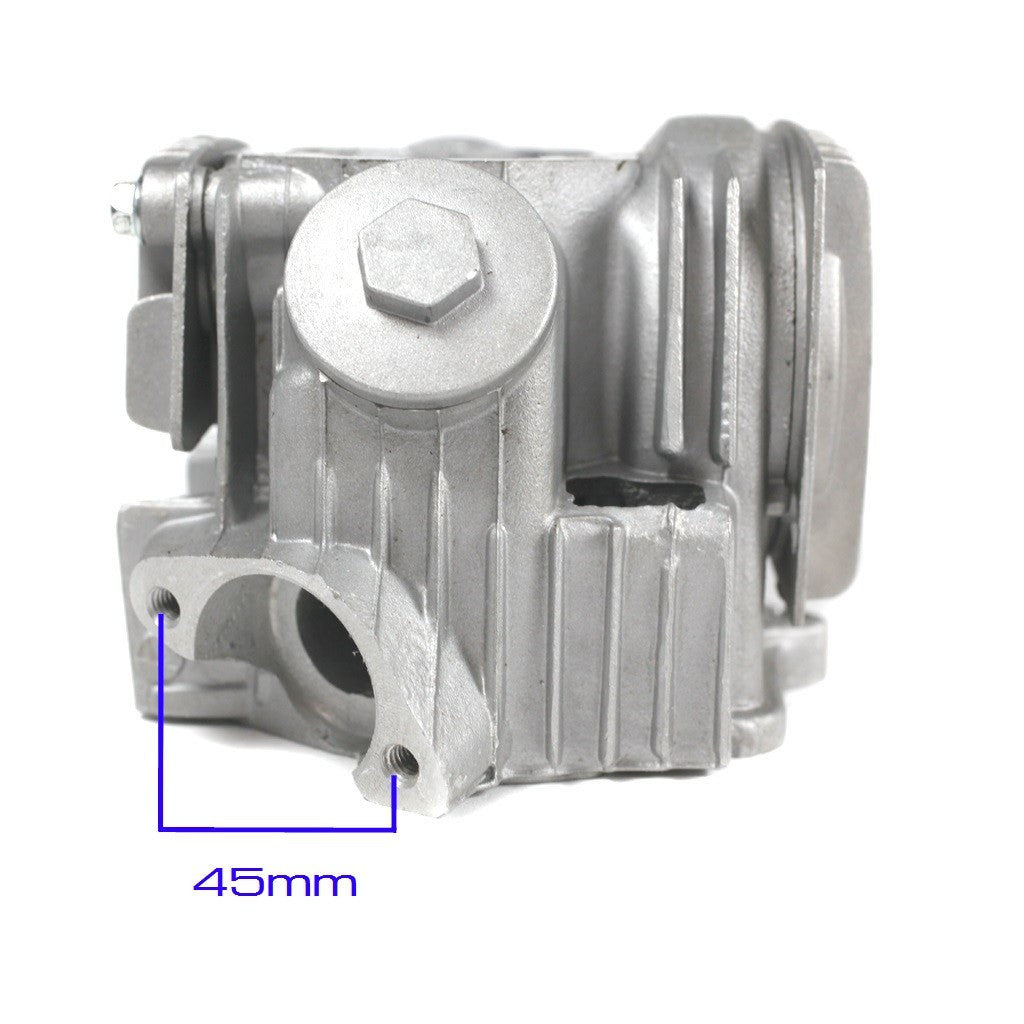

- Exhaust port diameter: 20mm (0.78 in)
- Rocker/valve side measurement--Timing chain side mounting holes: 49mm (+/- 0.5mm)
- Rocker/valve side measurement--Plug side mounting holes: 47.5mm (+/- 0.5mm)
- Rocker/valve side measurement--From timing side to plug side mounting holes: 51.5mm (+/-0.5mm) AND 50.5mm (+/-0.5mm)
- Covers not included
- Timing Chain Sprocket: 28 teeth
*NOTE: If your valves measure 23mm/28mm this head will not replace your head. Your engine is a 125cc and requires a different head. This head ONLY replaces heads with 20mm/23mm valves.
Do you need the top end gasket set?
Chinese Top End Gasket Kit - 52mm - 110cc Engine
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
- shipping
- everything
- price
- anyone
- parts
- valves
- head
- build
- intake
- 110cc
United StatesFantastic
Used VMC many times. Fast shipping and right parts every time. You got to know what you're looking for tho
United States52mm 110cc cylinder head
Fit perfect.....worked perfect.... Came fast...
United StatesRunning again
Head came complete. Adjusted valves before installing. Fired right up runs great. Grandson happy. Easy fix.
United States110cc Head Assembly
Fast shipping and great price. Bolt on and adjust valves and you're good to go!
Canadacylinder head assembly
fit perfectly,came with spark plug,cam gear,covers etc.i assembled my motor and got 150 psi compression and then started the motor.ran great..very pleased so far.
