Stator Magneto - 6 Coil - 110cc-125cc - Version 5

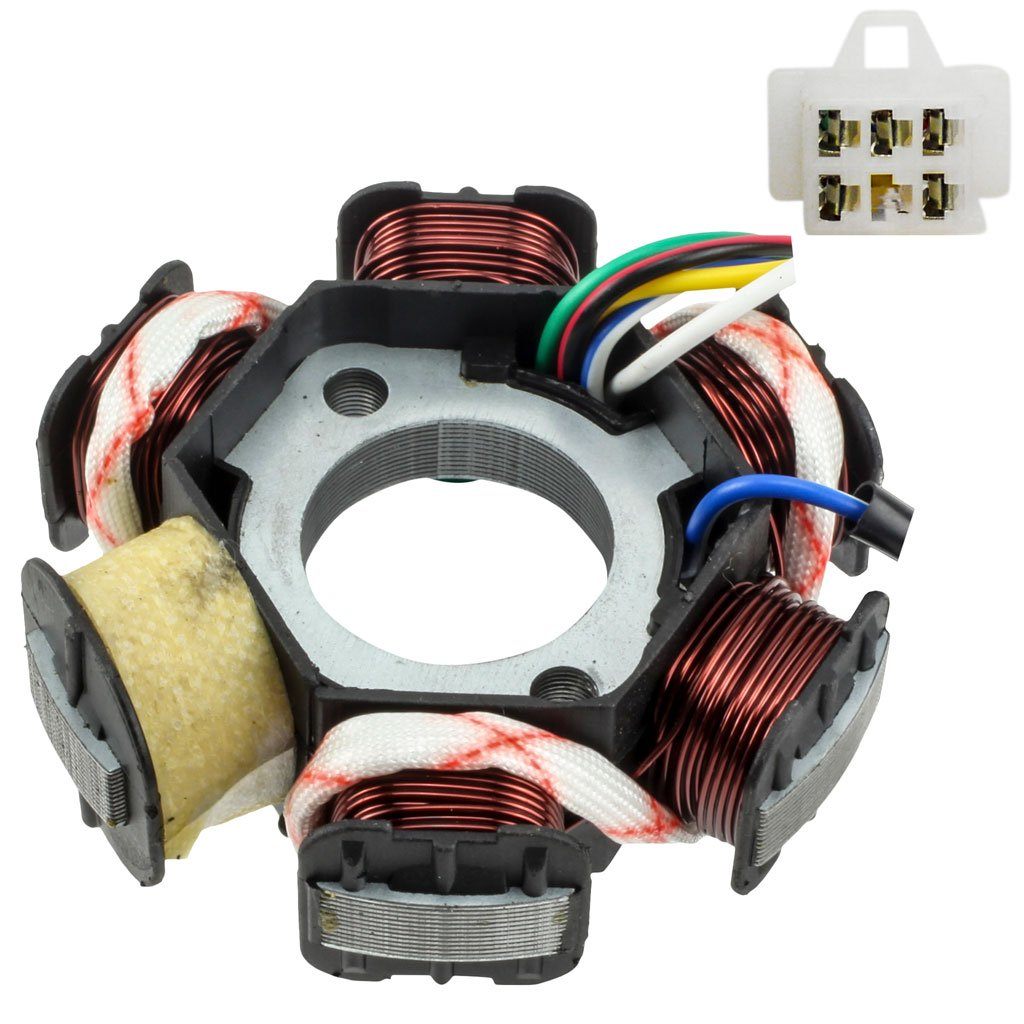

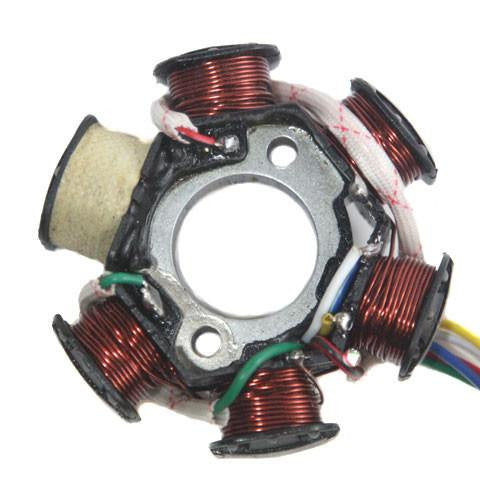

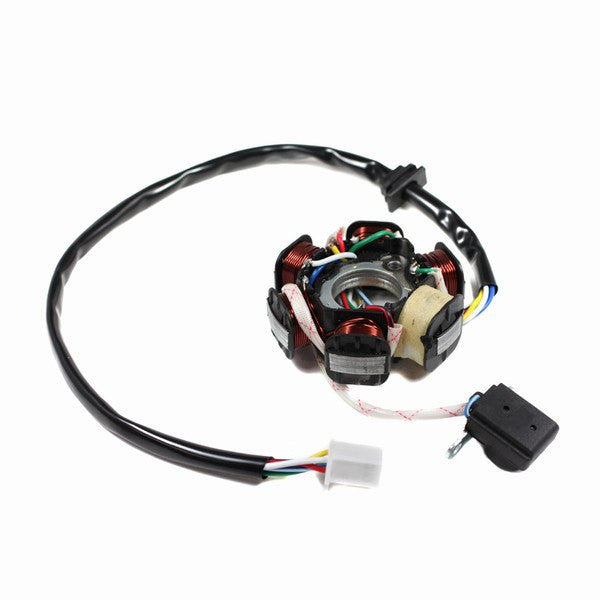

Chinese 6 Coil Stator Magneto for 110-125cc Engines.
Version 05
This Chinese stator magneto is the replacement part for most Tao Tao 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters. The stator recharges the battery while the machine is in use, like an alternator in a car. This stator fits 110cc to 125cc models.
Stator description:
- 6 coil - 1 wrapped

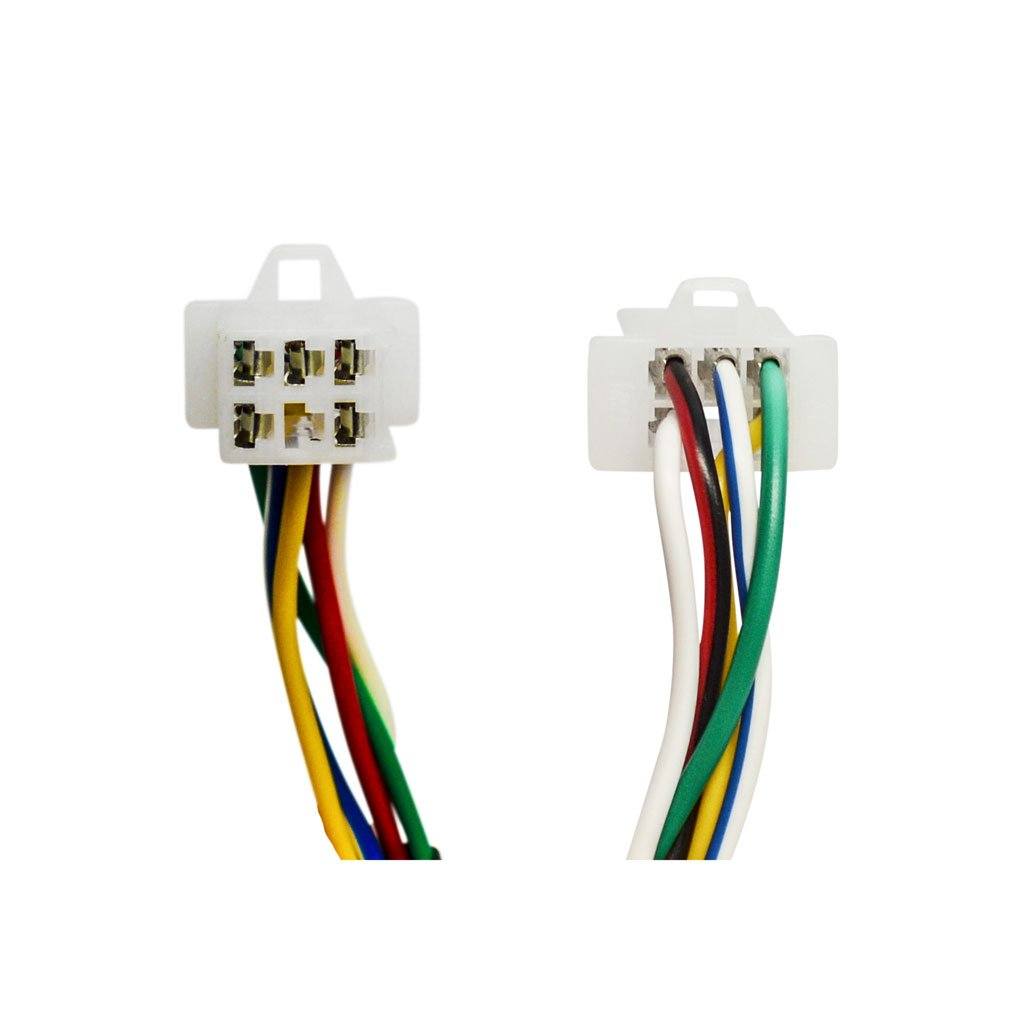

- 5 wires - 6 pin female plug with 5 wires: 50cm (20 in) overall wire length
- 2 bolt mounting
- Pick up trigger

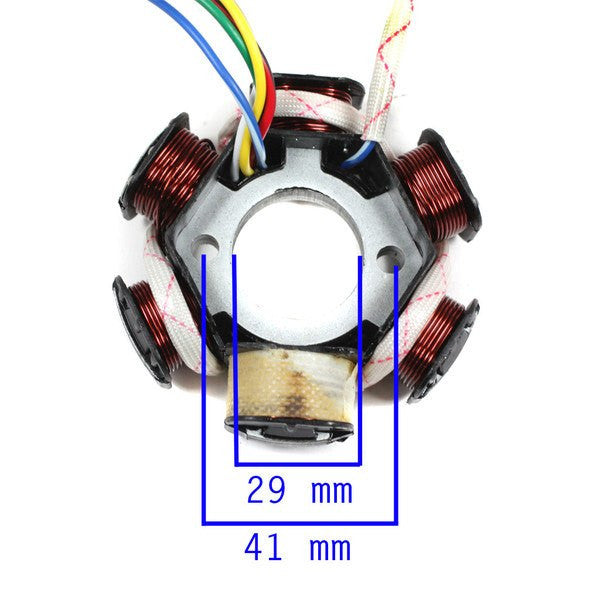

- Center hole measurement: 29mm (1.14 in)
- Overall measurement: 83mm (2.26 in)
- Single coil height: 25.8mm (1.01 in)
- Wrapped coil height: 29.5mm (1.16 in)
- Mounting measurement: center-to-center 41mm (1.61 in)
- Compatible with 110cc - 125cc 4 stroke
Shipping details:
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
