Part number:
213-FH930-17
Go-Kart ATV Wheel Hub - Version 17
Version 17
This wheel hub is used on several makes and models of Chinese atvs and go-karts. The best way to insure you are ordering the correct part is to use our detail pictures and measurements. Please be sure to check both before ordering.

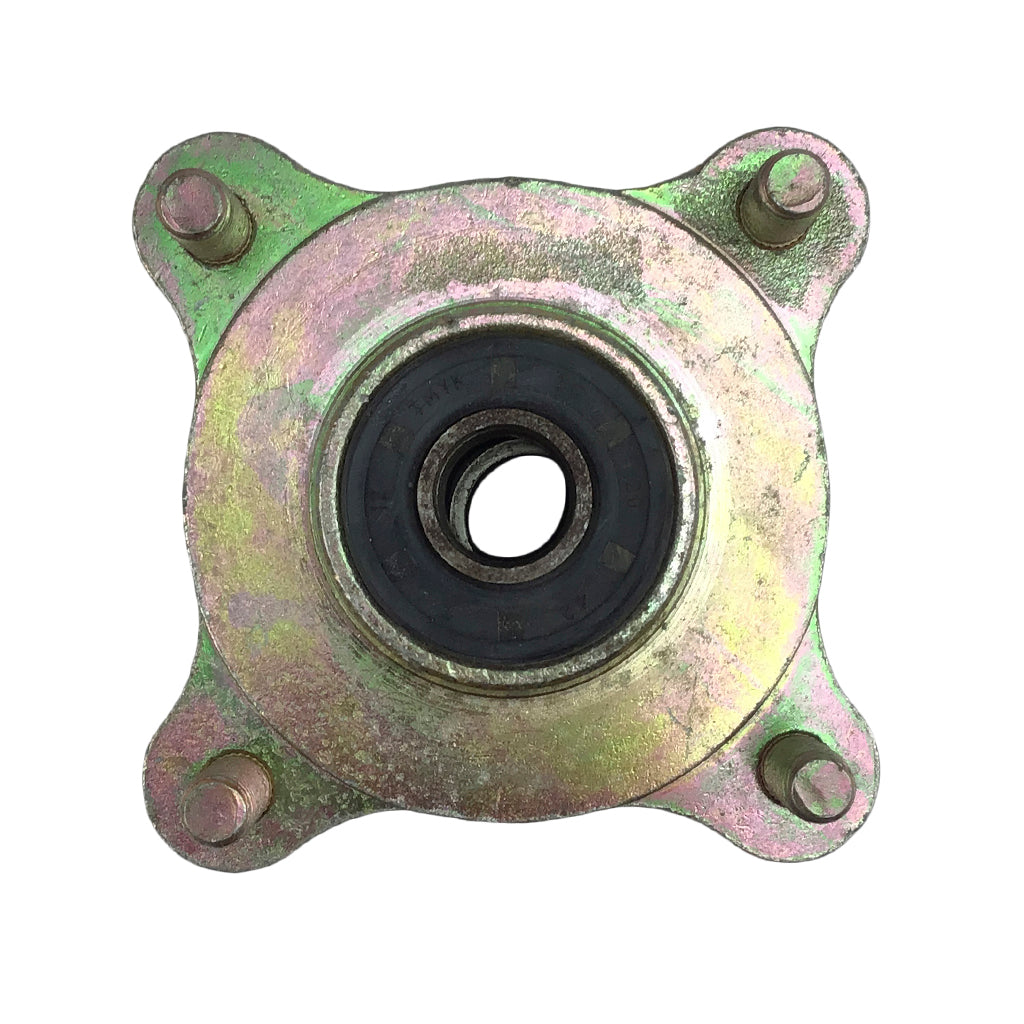

Hub details:
- (4) 10mm studs
- Studs are 78mm (3.07 in) apart center-to-center
- Studs are 110mm (4.33 in) apart center-to-center across
- (6) 6mm*1.00 threaded bolt holes
- Threaded holes are 29mm (1.14 in) center-to-center side-by-side
- Threaded holes are 58mm (2.28 in) center-to-center across from each other
- Sleeve on stud side 17.8mm (0.70 in) inside diameter
- 22*40*7 seal on 6 bolt hole side
- 20*42*7 seal on stud side
-
Width: 62mm (2.45 in) (hub only)
Be sure to check your hub measurements with the above measurements to be sure you are getting the correct part.
