Rear Axle Sprocket or Brake Disc Rotor Hub - 6-Hole - 32 Spline
This rear sprocket hub is used on several makes and models of Chinese atvs. The best way to insure you are ordering the correct part is to use our detail pictures and measurements. Please be sure to check both before ordering.

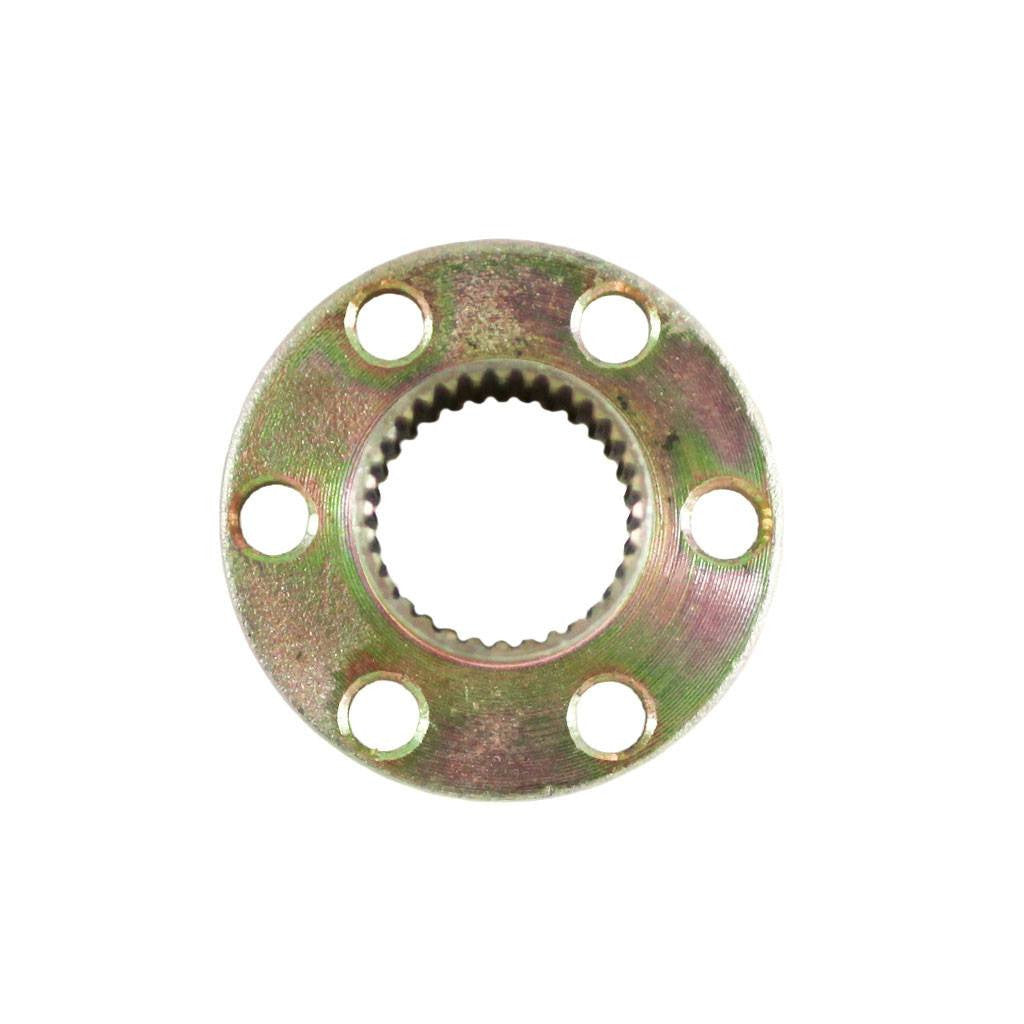

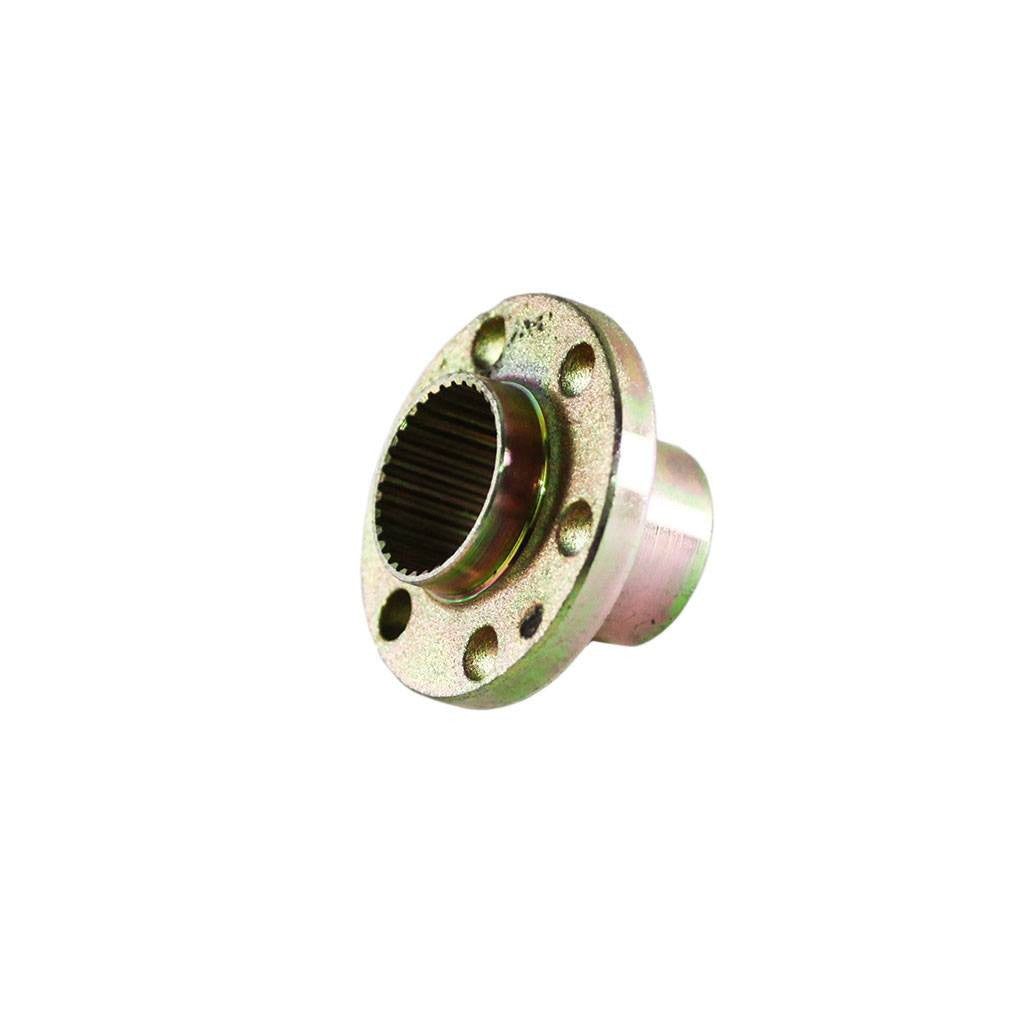

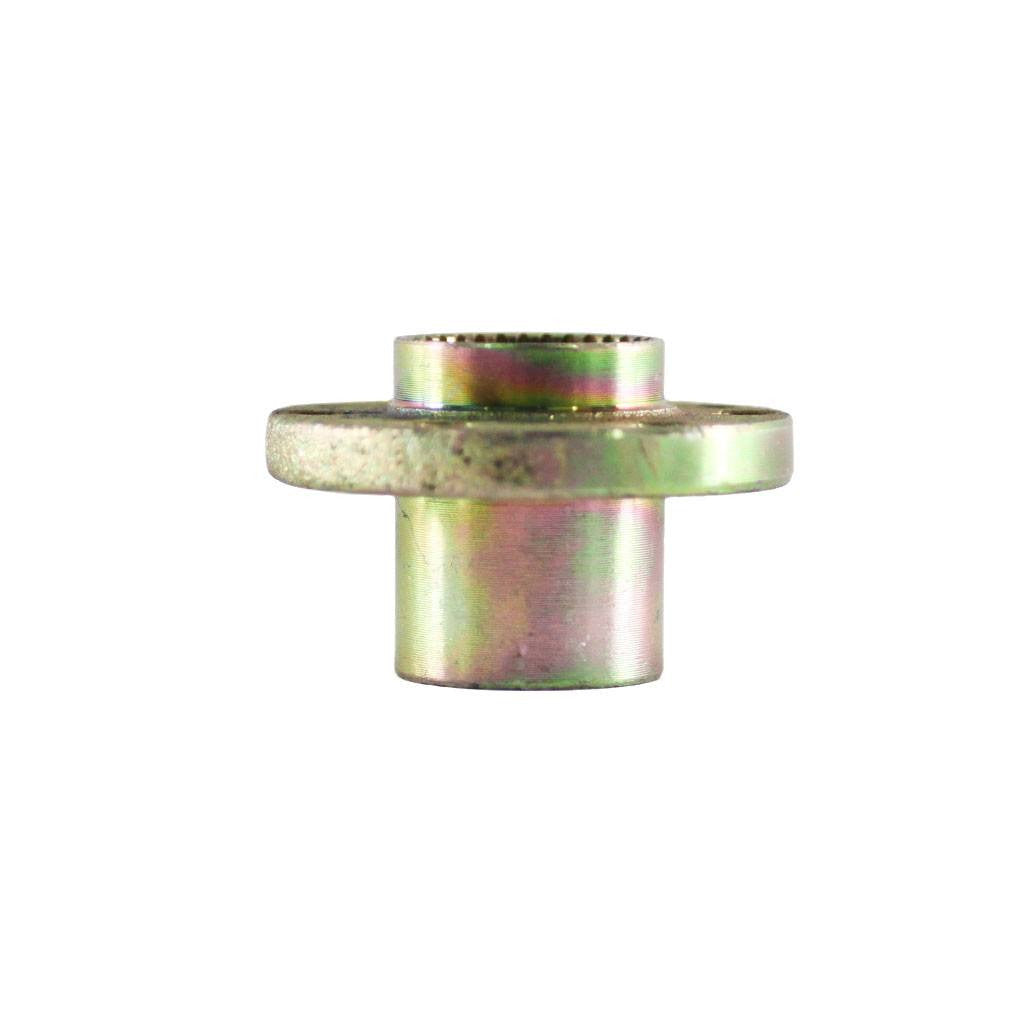

Hub details:
- 6 mounting holes
- Distance between holes: 28mm (1.1 in) center-to-center
- 32 splines
- Center hole diameter: 32.2mm (1.27 in)
- Bolt hole diameter: 9mm (0.34 in)
- Outside diameter of ring with bolt holes: 70mm (2.76 in)
- Length: 45mm (1.78 in)
- Used to secure disc to axle.
- 12994A1676
Know to fit Tao Tao ATA125F1, ATA150B, ATA150D, ATA150G, Bull 150, ATA250D and the Rhino 250. Fits all Tao Tao 150cc and 250cc ATVs.
Fits the ATK125A, Jeep Auto and Triton 125 go-karts.
Shipping details:
Do you need your hub fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
- parts
- calipers
- sprocket bolt kit
- Covid-19
- cheapest
- tape
- dimensions
- person
- Tao Tao
- orders
TaoTao ATA150 R sprocket, fitting to Hub
Items always come quickly from VMC. The bolt holes in hub are 9mm, holes in sprocket 8mm. So we depend on the center hole for snugness. Their manual for Bull 150 says to adjust chain: turn to "tightest position" then adjust to 5-10mm slack. The hub diameter was a bit loose, as expected. Used some aluminum tape around the hub, so it fit better. Then tightened bolts & removed the tape. No matter where you get the sprocket or hub the tolerances are not uniform. All made in China, that's all that's available. Andy B. 06/30/22 13:28 ..
United StatesPerfect fit, speedy delivery as usual
I've ordered from VMC several times now and I have yet had to return a single part. Everything is always a perfect fit and I receive my orders before estimated delivery times. You can select your ATV and all of the parts that fit will be displayed. Definitely the most reliable site for tao tao ATV parts that I've found so far.
United StatesPerfect fit, Note: the mounting holes are not theaded
Perfect fit but the holes are not threaded so you will need a sprocket bolt kit. VMC may not always be the cheapest but they are great at providing dimensions and spec on the parts they offer, as long as you can read a tape and or calipers I am confident they will get you the correct part. It is difficult to actually get ahold of an actual person if you have questions, but I believe that is mostly Due to COVID-19. They do ship quickly.
